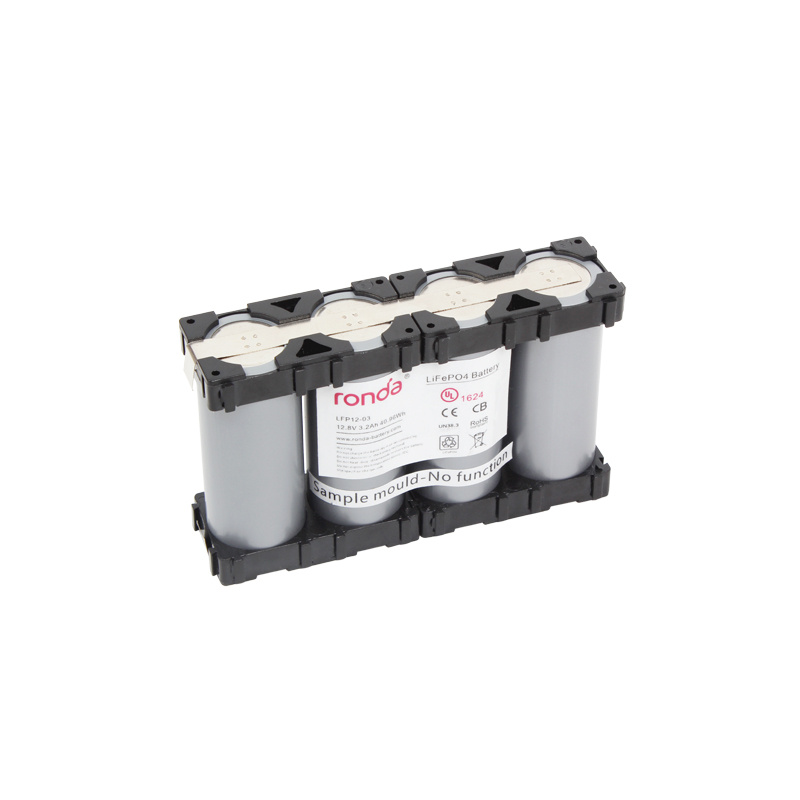

12V 3.2ah Lithium Battery for Solar Power System (UL, CB, Bis, Un38.3)

Name: 12V 3.2ah Lithium Battery for Solar Power System (UL, CB, Bis, Un38.3)
Brand: all-electronics-online.com
SKU: 730423432
Availability: InStock
Rating: 4.8 (67 reviews)

Price:	US $ 20-40/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	IFR-26650 3200mAh
Nominal Voltage:	12.8V
Capacity:	3.2ah
Power Consumption:	40.96wh
Certificate:	UL,CB,Bis
Life Cycle:	Over 2000 Times
Connection Mode:	Series and Parallel
Type:	LiFePO4 Battery
Standard Voltage:	12.8V
Usage:	Solar Lamp
Electrolyte:	LiFePO4

Product Description

Key Specifications/Special Features:

Product discription:	LiFePO4 battery 12.8V 3.2Ah 40.96Wh
Application solution:	Solar street light Solar energy storage
Cell model:	3.2V 2.56Wh 800mAh 18500
Electrical Configuration:	4S
Mechanical configuration	F4*1
Nominal voltage:	12.8V
Nominal capacity:	3.2Ah
Internal resistance:	RSS≤50mΩ (singel cell)
Charge Voltage:	14.6V
Charge Current:	1~10A
Constant Discharge Current:	10A
Peak Discharge Current:	10A
Discharge Cut-off Voltage:	8V
Dimension:	L74W1950mm
Weight:	about(0.13±0.05)KG
Certifications:	UL,BIS, IEC, UN38.3,RoHS,REACH
Cycle Life:	>1000 cycles by IEC standard
Operation temp.
Standard Charge:	0ºC~60ºC
Standard Discharge:	-20ºC~70ºC
Quick Charge:	10ºC~60ºC
Quick Discharge:	-10ºC~70ºC
Cell body temperature is not over 80ºC
wire & connector:	UL3135,14#,150±5mm; N#A
Case:	/

Storage performance	Items	1 month	3 months	6 months
	Capacity retention rate	≥95%	≥90%	≥85%
	Capacity recovery rate	≥97%	≥93%	≥90%
	Stored cell with 50% SOC at an ambient temperature 25ºC.
	Capacity recovery	≥98.5%	≥95%	≥93%
Proposed to charge/discharge cell one time per 6 months, if it needs to store for long time.

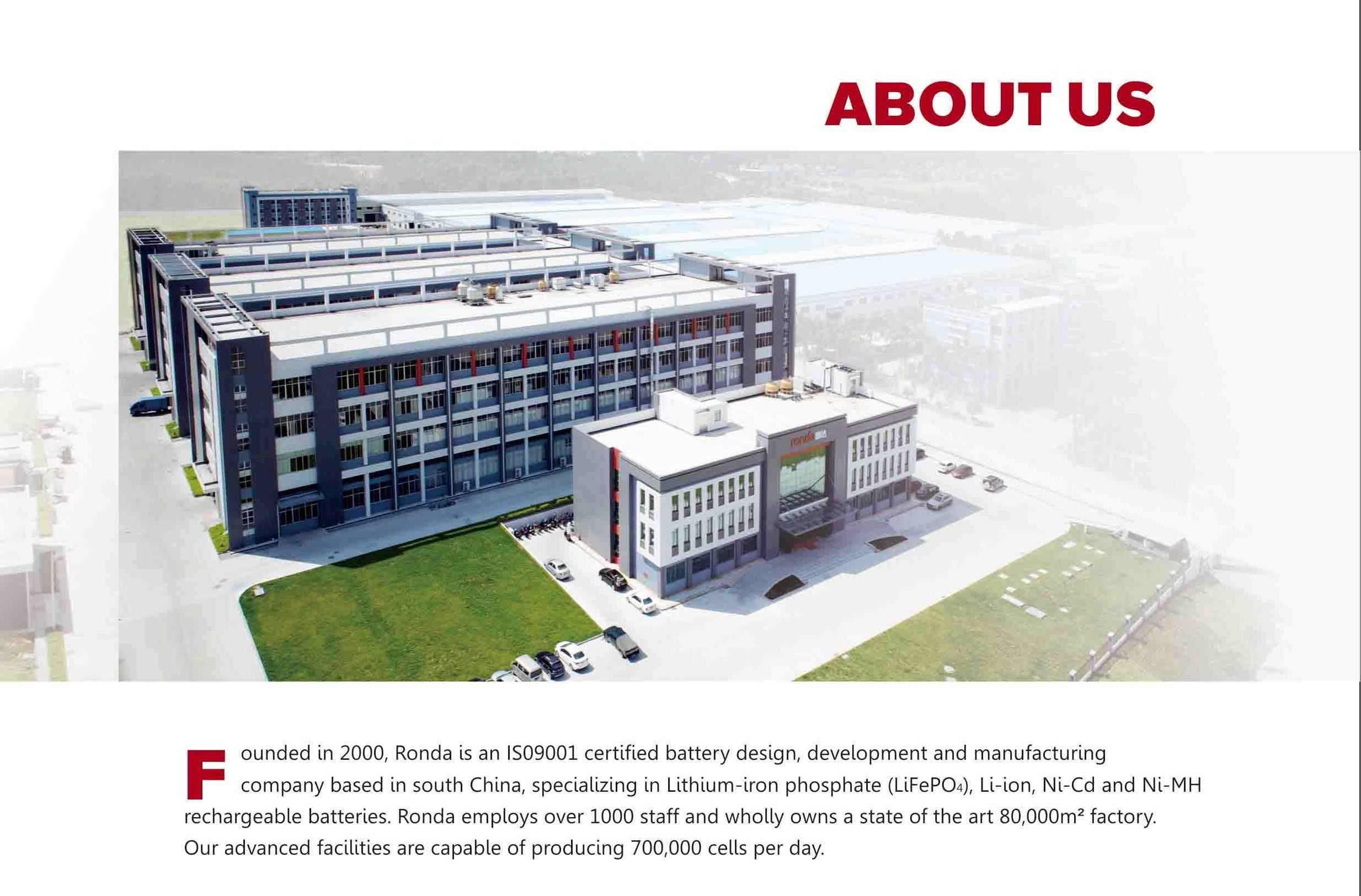

Founded in 2000, Ronda is an ISO9001 certified battery design, development and manufacturing company in south China, specializing in Lithium-ion phosphate (LiFePO4), Li-ion, Ni-CD and Ni-MH rechargeable batteries. Now, Ronda employs over 1000 workers. It owns 80, 000 factory and advanced facilities, which can produce 700, 000PCS cells per day.

Ronda batteries deliver high temperature, high rate discharge, low internal resistance, low self discharge, good consistency performance and provide long cycle life. They conform to the IEC standard and got CB/UL/KC/BIS approval. Ronda offers a variety of power solutions to a wide range of applications such as emergency lighting, portable lamps, personal care products, power tools, electric toys, medical devices, solar power systems and UPS etc. Whatever your development budget and timescales, Ronda can deliver a power solution to give your device a competitive advantage.

Ronda always focuses on innovation and technology. It has its own UN38.3 safety testing lab and IEC62133 testing lab. Since its foundation, Ronda has established long term cooperation with Harbin Institute of Technology and set up the associated Lab, which provide solid foundation on research and development to provide reliable and safe batteries to our customers.

Welcome to visit our website for more information.

http://www.ronda-battery.com/
