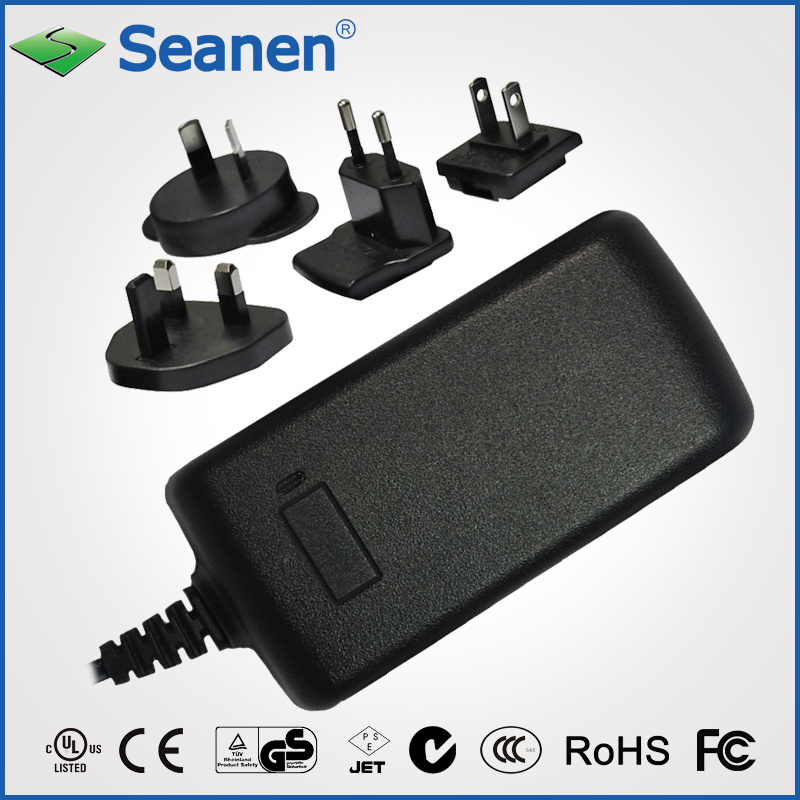

12V 3.5A Power Adapter

Name: 12V 3.5A Power Adapter
Brand: all-electronics-online.com
SKU: 703126115
Availability: InStock
Rating: 4.3 (84 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	KSAS045 series
Markets:	North America,Oceania,Eastern Asia,Western Europe
Usage:	Switching
Output Type:	DC
Connection:	Plug In
Certification:	Ce, C-Tick, PSE
Color:	Black, White
Brand:	Seanen

Product Description

12V 3.5A Power Adapter/charger with interchangeable AC plugs for America, Canada, Europe, United Kingdom, Australia, Japan etc,
UL, GS, CE, C-TICK, PSE, FCC approved,
RoHS, REACH, PAHs compliant, 6P, NP available,
Energy efficiency: CEC VI

SPECIFICATION
Input	Input voltage	90-264VAC
	Frequency range	47-63Hz
	Inrush current	50A Max, 100VAC at max load, 60A Max 240VAC at max load
	Leakage Current	0.25mA max
	Energy efficiency	VI
Output	Voltage	12VDC
	Current	3500mA
	Power	7.5W
	Load regulation	+/-5%
	Hold-up time	10ms minimun at 115V AC / full load
Connector	DC cable	2468 2C 6FT or others
Connector	DC plug	Per customer request
Protections	Short circuit protection	Yes
	Over voltage protection	Yes
	Over current protection	Yes
Envionmental requirements	Operating Temperature	0-40° C
	Storage Temperature	-20-80oC
	Operating Relative humidity	10-90% RH
Others	MTBF	50K hours at 25' C
	Led indicator	Optional
	Size	653634.5mm (LWH)
Safety Approvals	UL/cUL/GS/CE/CB/C-TICK/CCC/PSE/EMC/FCC
Standards	UL60950-1, IEC/EN60950-1, AS/NZS60950-1, J60950, FCC part 15 class B
Compliance	RoHS, PAHS, REACH, WEEE

Company Brief Introduction:

Seanen is a technology company specializing in developing, manufacturing and marketing high quality AC/DC adaptors, switching power supplies, chargers and LED drivers. Being professional and dedicated to the industry, Seanen is aim to provide the highest standard products combined with extra safe, high efficiency, high stability ,cost effective and environment-friendly.

Our standard products cover the full range items,
from 0.5W to 120W output power,
safety approved including UL/cUL, TUV-GS, CE, C-TICK, PSE, K-mark, CCC, EMC and FCC etc.
compliant with DOE VI, RoHS, PAHs, REACH and WEEE.,

we can also offer customized service to design the optimal solution to meet the most exacting requirements that your applications demand and put into production promptly.

Based on first-class products, competitive price and excellent service, we believe it will be a long term business relationship once you work with us.

Seanen, your reliable power partner.

Established in 1999, Seanen is a technology company specializing in developing, manufacturing and marketing high quality AC/DC adaptors, switching power supplies, chargers and LED drivers. Being professional and dedicated to the industry, Seanen is aim to provide the highest standard products combined with extra safe, high efficiency, high stability, cost effective and environment-friendly.

Our factory covers more than 15, 000 square meter of production space, staffed with more than 1, 000 skilled employees, with a capacity of 50K units per day. Our highly vertical integration manufacturing covers from moulding to plastic injection, metal parts, SMD, PCB assembly, aging test, ICT test etc, so as to ensure the stable high quality, competitive price and punctual delivery.

Our standard products cover the full range items from 0.5W to 120W output power, and safety approved including UL/cUL, TUV-GS, CE, C-TICK, PSE, K-mark, CCC, EMC and FCC etc. Our products compliant with CEC V, RoHS, PAHs, REACH and WEEE., we can also offer customized service to design the optimal solution to meet the most exacting requirements that your applications demand and put into production promptly.

Based on first-class products, competitive price and excellent service, we believe it will be a long term business relationship once you work with us. Seanen, your reliable power partner.
