12V 300W IP67 SAA LED Power Supplies with Australian Plug

Name: 12V 300W IP67 SAA LED Power Supplies with Australian Plug
Brand: all-electronics-online.com
SKU: 747903965
Availability: InStock
Rating: 4.8 (127 reviews)

Price:	US $ 26.5-27/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-12E300C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	300W
Input Voltage:	170-250V
Output Voltage:	12V
Power Factor:	0.6
Efficiency:	80%
IP Rating:	IP 67
Certificates/Standards:	Ce, SAA, Saso
Weight(Kg):	3.1500
Packing Information:	5 PCS/ Carton, G.W 18.5 Kg
Dimensions(LWH):	3078535 mm
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Certification:	Saso, SAA
In-Out:	AC to DC
Power Supply Voltage:	AC180-250V
Brand:	Neonpro

Product Description

12V 300W IP67 2 Years Warranty SAA LED Power Supplies with Australian Plug

Product Feature for SAA Power Supply:
*170-250 VAC, 12VDC
*Constant Voltage type; Mature models
*Applied for LED Signage/strips/bar lights/LED Modules etc.
*Protections: Short circuit/over load/over voltage/over temp
*100% full load burn-in test
*Low cost, High reliability
*2 years warranty
*SAA /CE /RoHS /SASO /BIS approval.

Advantage for SAA Power Supply:
Developing a compact size power supply unit with more power output meant pushing the edge of design.
To achieve the least space usage, all components in the unit must be carefully selected for a smaller size,
and then perfectly arranged on the PCB making the heat travel the shortest distance to the outside.
The LPS-C power supply is innovative by combining the slim body with powerful output.

Technical Specification for SAA Power Supply:

Model no.	LPS-5E300C;LPS-12E300C;LPS-24E300C
Model series	LPS-C
Input voltage	170-250 VAC 50/60 Hz
Power	300 W max
Output type	Constant voltage
Dimming	Not dimmable
Power Factor	Low PF~0.6
Efficiency	90%
Output voltage	5V; 12V; 24V DC ± 5%
Output current	60A; 25A; 12.5 A max
Overload protection	105%-120% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40ºC
Installation	Outdoor waterproof
IP rating	IP 67
Cooling	Free air convection
Certificates/standards	CE

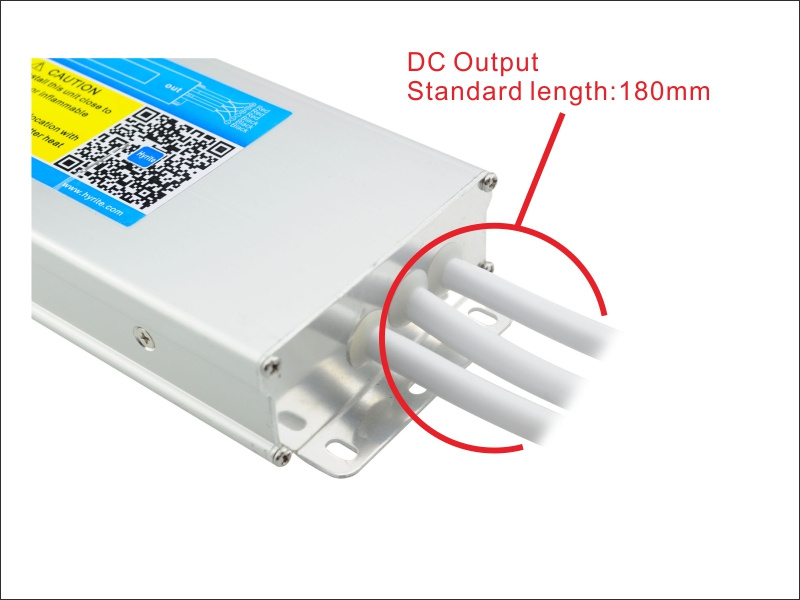

Connection input/output	Input:0.75mm²x3 (18cm) / Output:1mm²x2*3 (18cm)
Dimensions(LWH)	3078535 mm
Weight(kg)	1.7000
Packing information	10 Pcs/ Carton, G.W 17KG

Note for SAA Power Supply:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 PC

Shipping for SAA Power Supply:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

More pictures for SAA Power Supply:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
