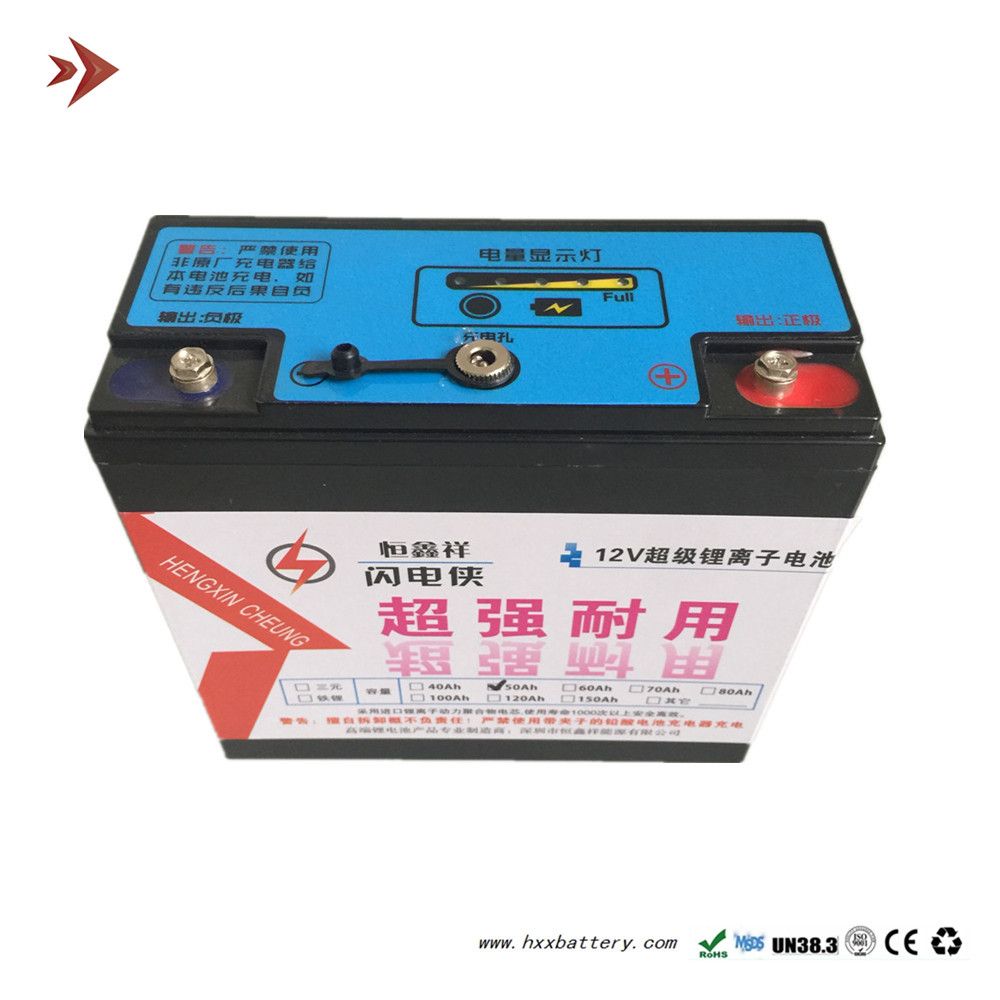

12V 30ah Battery Large Working Current for Car Starting

Name: 12V 30ah Battery Large Working Current for Car Starting
Brand: all-electronics-online.com
SKU: 724059712
Availability: InStock
Rating: 4.8 (119 reviews)

Price:	US $ 89.45-134.85/Piece
Min Order:	1/Piece
Pay Type:	Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	12v30ah
Housing:	ABS
Color:	Green
Cell Types:	26650
Charger Voltage:	14.6V
Connection Mode:	Series and Parallel
Type:	Li-Fe
Usage:	12V Electronic Equipment
Electrolyte:	No

Product Description

Cell	model		26650
	Capacity		3000MAh
	rated voltage(V)		3.2V
	Typical Impedance (mΩ)		≤5mΩ
	Battery material		Lifepo4
PACK	Combination method		9P4S
	Minimal capacity		≥27Ah
	Nominal voltage		12.8V
	Max. charge voltage		14.6V
	Discharge cut-off voltage		≤10.5V
	Instantly current		100A
	Working current		60A
	Pack Impedance standard		≤10mΩ
	Weight (Approx.) KG		3.3
	Max. dimension(L×W×H)(mm)		17716874
	Operating temperature	Charge temperature	0ºC~45ºC
		Discharge temperature	-10ºC~55ºC
(Protection Board)BMS	Single cell over-charge cut-off voltage		3.85V
	over-charge release voltage		3.65V
	Single cell under-discharge cut-off voltage		2.3V
	Discharge release voltage		2.5V
	Over-discharge cut-off current		100A
	Over-discharge cut-off current delay		1.5S
	Short-circuit protection		YES
	Short-circuit protection delay		500uS
	Condition for the recovery of over-current and Short-circuit		Self
	Balance current		45mA
	Balance Condition		3.60V
	connect computer		no

Function Button Speciality : 1 positive pole ,1 negative pole ; LCD of capacity ,1 push switch for LCD ,1 charger hole ;

Note:We offer the full capacity battery pack , we are the 10 years experiences manufacturer . These buyers who buy this battery, must agree that you are familiar with the safe use of lithium battery Knowledge.

Safety Reminder: DIY assembled when good protective measures, Wear protective goggles, insulated gloves.

Main uses:

Large electric vehicle: electric golf carts, buses, electric cars, sightseeing cars and hybrid vehicles DIY

Light electric vehicle: electric bicycle, small flat electric car, forklift, cleaning vehicles, electric wheelchair

Power tools: electric drill, electric saw, lawn mower

Remote control cars, boats, aircraft and other toys

Solar and wind power energy storage equipment

UPS and emergency lights, warning lights, miner's lamp (best safety) all can sent by battery pack .

Shenzhen HXX ENERGY Co., Ltd. is specialized in producing lithium ion battery pack, LiFePO4 battery pack, polymer battery, battery charger, inverter, flashlight and so on.

The team consists of senior electrochemical research doctors, masters and bachelors of science with more than 7 years' experience in designing and developing.

With rich experience in battery packs production quality and service, we can ensure the quality of our products.
