12V 30ah Lithium Battery Pack for Power Storage

Name: 12V 30ah Lithium Battery Pack for Power Storage
Brand: all-electronics-online.com
SKU: 831244795
Availability: InStock
Rating: 4.8 (146 reviews)

Price:	US $ 145-165/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel

Product Description

12v 30ah lithium battery pack for power storage

Size: 108*112*168mm

Product Description

No.	Item	General Parameter
1	Nominal capacity @0.2C5A		30Ah
2	Nominal Voltage	11.1V
3	Discharge Cut-off Voltage	9.0V
4	Charge Cut-off Voltage	12.6V
6	Continuous Discharge Current	1C (adjustable)
7	Max. Charge Current	0.5C (adjustable)
8	Operation Temperature Range (60±25%R.H.Bare Cell)	charge	0~45ºC
		discharge	-10~60ºC
9	Storage Temperature Range (60±25%R.H. During shipping)	Less than 1 year	-20~25ºC
		less than 3 months	-20~40ºC
		less than 7 days	-20~65ºC
10	Pack Dimension (the dimension is adjustable)	Thickness Max.	108mm
		Width Max.	112mm
		Length Max.	168mm
11	Weight	about 3.20kg

Advantage:

1.no memory effect;

2. lead free, no harm;

3.high energy density, low internal resistance;

4. excellent safety performance, no explosion, no fire;

5. can be flexibly made into battery packs with different voltages, capacities, and size;

6.long cycle life, after 1500cycles continuously discharging, 70% of nominal capacity remaining;

7.wide application range: notebook, interphone, portable DVD, instrument and meter, stereo system, RC helicopter, video camera, etc.

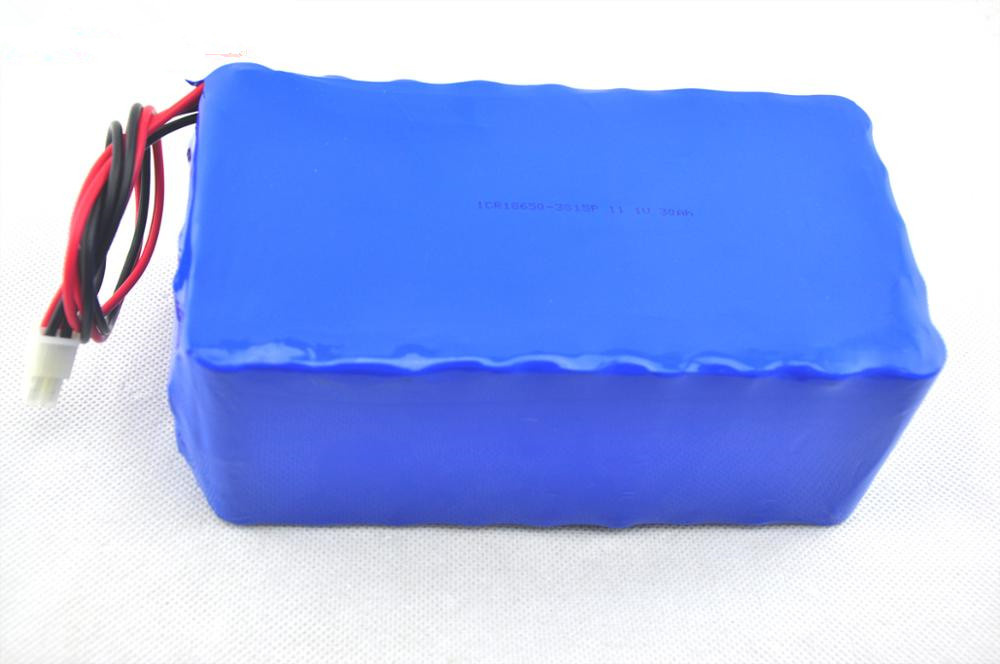

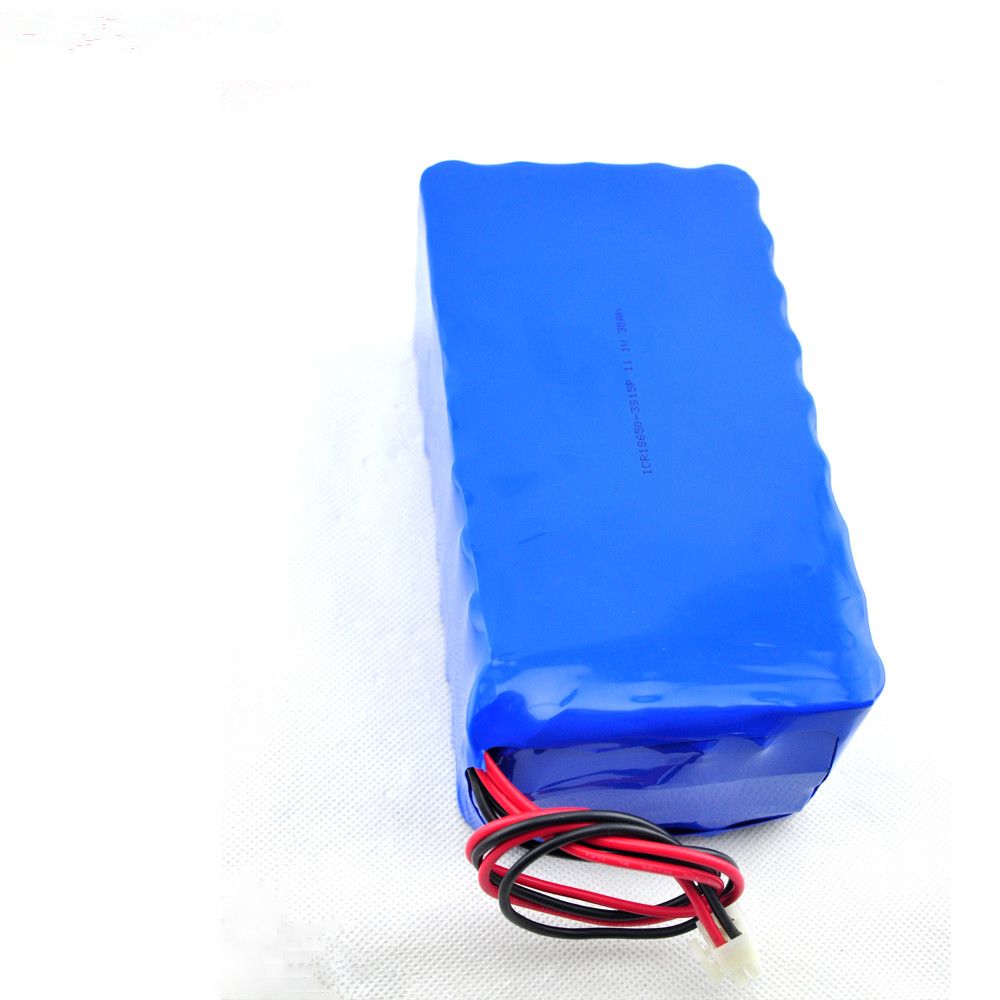

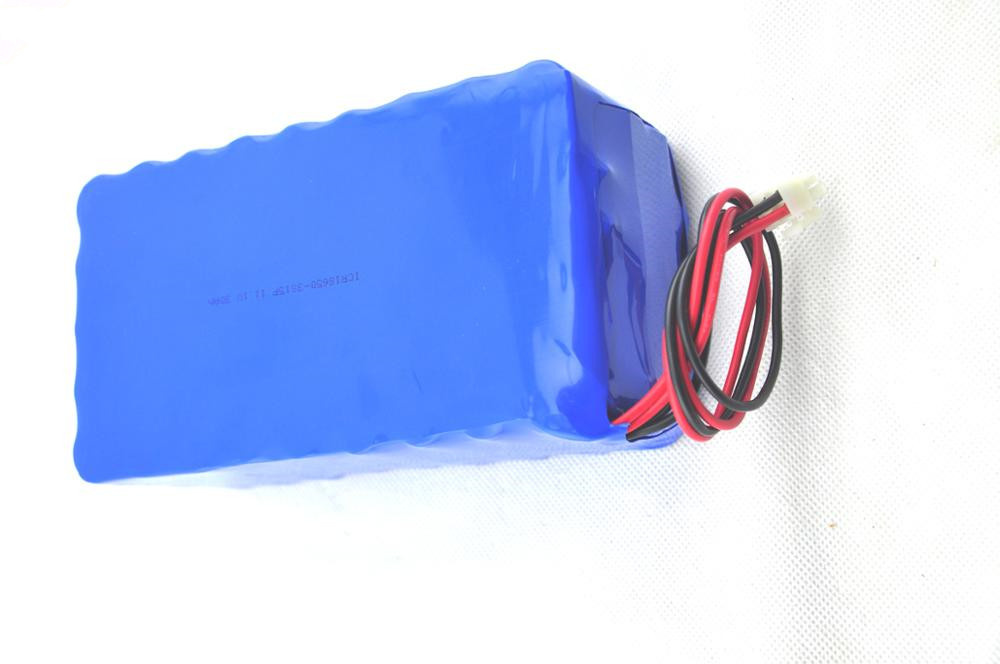

Reference Pictures:

Application:

solar power, electric bus, golf buggy, electric scooter, electric wheelchair, etc.

Packaging & Shipping

Packaging: Standard export package------ sponge/bubble bag+outer carton;

Shipping: By sea ( for large orders more than 100kg, production:25-30days, delivery:20-25days) ;

By air ( for rush orders, production: 15-20days, delivery:7-15days);

By express-UPS, DHL, TNT, FedEx, etc (for small orders, production: 15-20days, delivery:4-7days).

Shenzhen Aug Energy Electronic Co., Ltd is consist of Hong Kong Aug Energy Electronic Co., Ltd. And the former Jiangxi Yichun technology Co., Ltd. Specializes in new energy lithium ion battery, lithium polymer battery, power electric vehicle assembly system, power control system of lithium battery research and development, production and sales in one of the high-tech export-oriented enterprises. In Jiangxi Yichun, Guangdong Dongguan both has the factories and companies, with a total investment of 200 million RMB, has nearly 25000 square meters standard workshop, has the domestic first-class lithium ion battery and lithium ion polymer battery automatic production equipment and testing equipment, can Nissan 200000 Ah lithium ion power battery and 10 sets of electric vehicle powertrain.

The company has a group of experts and technical personnel who will be long engaged in lithium ion power battery research and production, with south China university, central south university, Tianjin university etc eighteenth scientific research institutes maintain close relations of cooperation. Company researchers developed a manganese acid lithium batteries, lithium iron phosphate batteries, ultra-low temperature lithium ion battery series products and electric vehicle powertrain system and batch produce, the products has passed the ISO9001: 2000 quality system certification, CE certification, battery performance has reached the country's leading level.

Company products are mainly used in electric cars, solar equipment, communication base station, monitoring system, underwater communication power supply, GPS power supply, Banks, medical system emergency standby power, military industry, smart phones, tablet PC, laptop, mobile power supply, bluetooth and smart card, etc.
