12V 36W Constant Current LED Driver

Name: 12V 36W Constant Current LED Driver
Brand: all-electronics-online.com
SKU: 705330315
Availability: InStock
Rating: 4.3 (21 reviews)

Price:	US $ 3-6/Piece
Trade Terms:	FOB,others
Min Order:	500/Piece
Pay Type:	T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	YSL36
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Gray&Black&White
Size:	125X40X19mm
Experience:	19 Years'experience
Quick Delievery:	15-25 Days
Warranty:	3 Years' Warranty
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Brand:	Yingjiao/OEM/ODM

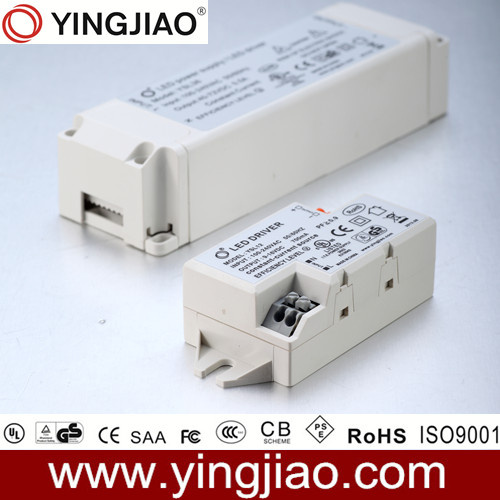

Product Description

LED adaptor&Driver
Model: YSL36 series
Rated Power: 20-40W
Universal Input: 100-240V AC 50/60Hz

Features:
Safety: UL/cUL/TUV/GS/CE/CCC compliance
RoHS Compliance
High efficiency & low power consumption
LED power indicator
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact

Environmental:
Operating Temperature: 0 to 40 degrees centigrade
Storage Temperature: -40 to +70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing

Mechanical:
Dimensions: 125mm (L)*40mm (W)*19mm (H)
N. W.: 120g

Packing details:
1 piece per plastic bag + inner box
50PCS/CTN

Output Specifications:
Model	Output Load Voltage (V)	Max. Load Current (A)
YSL36-XX360	36	1
YSL36-XX240	24	1.5
YSL36-XX190	19	2
YSL36-XX150	15	2
YSL36-XX120	12	3
YSL36-XX090	9	3.5
YSL36-XX075	7.5	4
YSL36-XX050 5	5
XX-represent rated output power

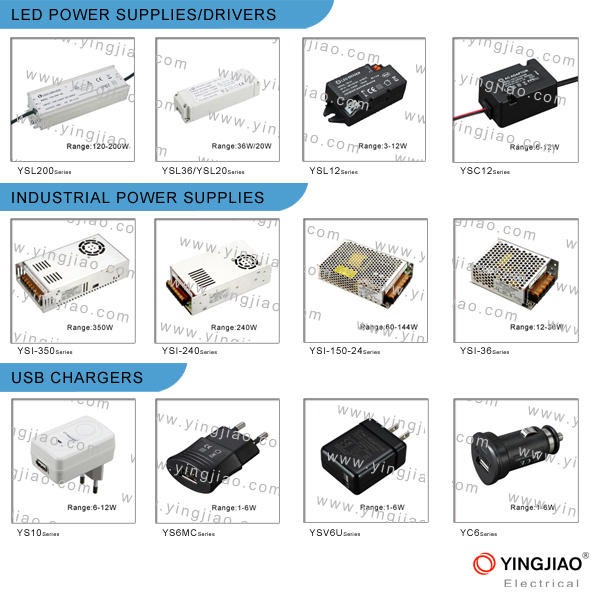

Yingjiao Electrical Co., Ltd., established in 1996, is a leading manufacturer and exporter of switching power adapters, linear AC/DC adapters, transformers, chargers, car chargers, power cords, tripods, etc. We can also design and manufacture power supply products with specifications according to the various demands of different customers.

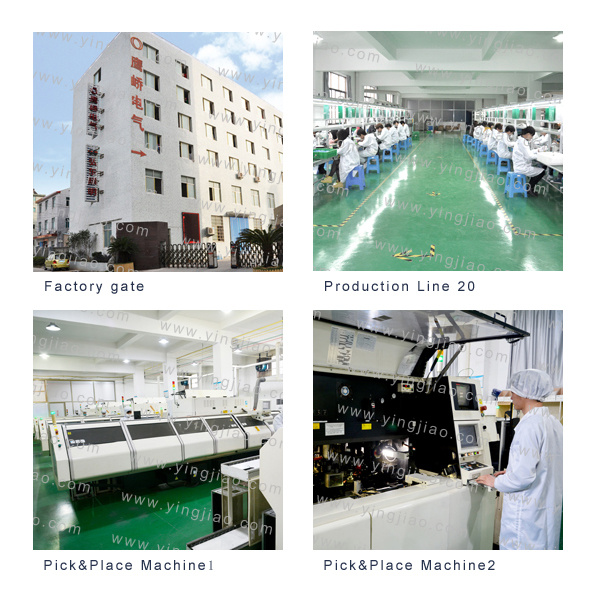

Located in Ningbo, a coastal city in East China, we possess a convenient location and transportation facility. With an area of 15000 square meters, we have about 800 skillful employees. Being exported to Europe, America, Japan, Australia, and many other countries and regions, our products have won good comments from our customers.

We have a strict quality control and guarantee system and have been ISO 9001: 2000 and SGS certified. All our main products have obtained CE approvals of the European Union and CQC and CCC approvals of Chinese quality certification center. Besides, we also carry out the international authoritative certifications, such as UL, cUL, TUV, CSA, and GS.

We commit to supply high quality products and competitive prices to our customers with professional technologies and top-ranking services.

ODM/OEM partners are welcome too.
