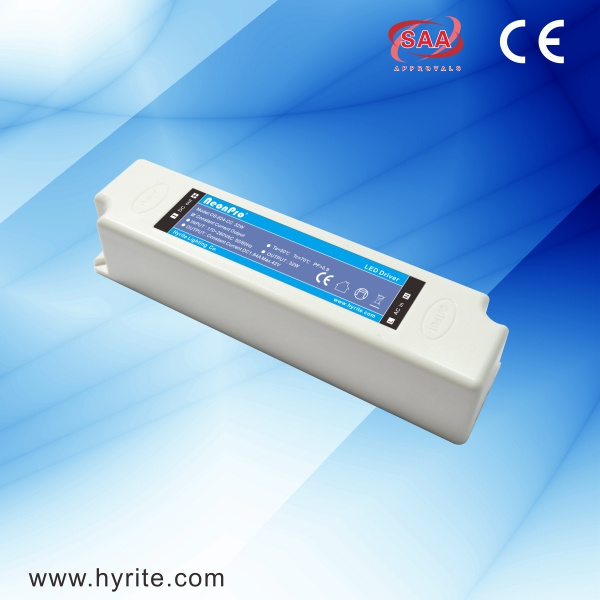

12V 36W IP20 Plastic Case LED Driver

Name: 12V 36W IP20 Plastic Case LED Driver
Brand: all-electronics-online.com
SKU: 757149265
Availability: InStock
Rating: 5 (62 reviews)

Price:	US $ 6.65-7/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	OS-624-CV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	40W Max
Output:	Constant Current or Constant Voltage
Input Voltage:	170-260V
IP Rating:	IP67
Warranty:	2 Years Warranty
Use:	for Spot Light, Down Light, Panel Light
Size:	1983022.5mm
Case:	Plastic
Usage:	Construction, Building
Circuit Structure:	PWM Controlled
Output Type:	Terminal
Driving Method:	Constant Voltage or Constant Current
Certification:	CE, RoHS, EMC Test
In-Out:	AC to DC
Power Supply Voltage:	AC170-260V
Brand:	Neonpro

Product Description

12V 36W IP67 Plastic Case CV PWM Isolated LED Driver

Product Feature:
*Constant voltage and constant current, Plastic Case,IP20
*Used for Spot Light, Down Light, Panel Light etc
*Protections: Short circuit/over load/over voltage/over temp
*2 years warranty
*CE approval

Note:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 pc

Shipping:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

Data sheet:
Model no.Input voltageMax. powerOutput typeEfficiencyOutputOverload protectionOver voltage protectionWithstand voltageOperating temperatureInstallationIP ratingCertificates/standardsConnection input/outputDimensions(L*W*H)Packing information

OS-636

170-260 VAC 50/60 Hz

36W max

Constant Current or Constant Voltage

85%

12VDC

105% hiccup mode, auto-recovery

120% rated output voltage

I/P~O/P:1.5kVAC, 1 minute

-25~40 degree

Waterproof

IP67

Terminal

198*30*22.5mm

100Pcs/ Carton, G.W 3.5KG

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
