| Prod Model: |
YDS12V3A |
| DC Size: |
2.5*0.7 |
| Usage: |
Tablet |
| Output Type: |
DC |
| Connection: |
Plug In |
| Certification: |
Ce CB |
| Brand: |
Yds |
Product Description

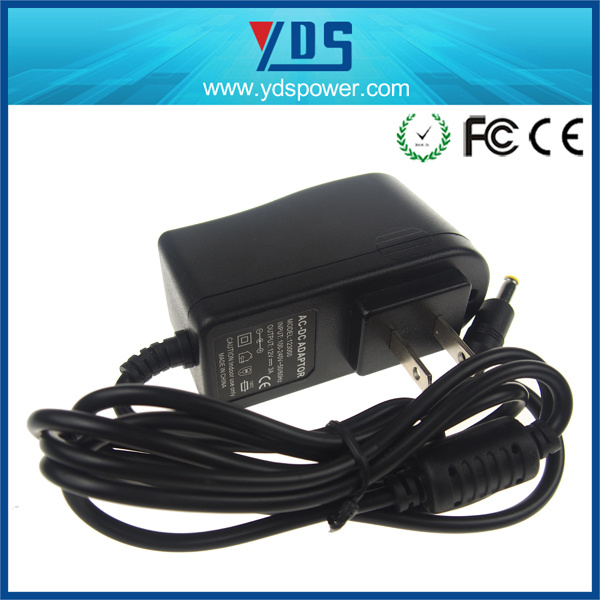

12V 3A US wall plug adapter
SPECIFICATION
ITEM | YDS |
Output Voltage | 3-24V |
Output Current | 0.1-2.5A |
Input | AC 100V-240V,50/60Hz 0.5A |
Range Voltage: | AC 90V-264V,47/63Hz |
Output Power: | 12W |
Input Current | 0.5A Max |
Inrush current | 40A Max |
Line Regulation | 1% Max |
Load Regulation | 5%Max |
Ripple&Noise | 1%Max |
Efficiency | 65-78% |
Operating Temperature | 0-40ºC |
Storage Temperature | 20-85ºC |
Over-Voltage Protection | Auto Recovery |
Short-circuit protection | Auto Recovery |
Safety Standard | CB UL GS CCC SAA |
EMC(EMI/EMS) | CE FCC C-TICK |
Size | Case Size:74*40*30mm Cable size:1.2m |
Warranty | 2years |
FEATURES
*Over-Voltage protection
*Over-Current protection
*Short-Circuit protection
*IC protection
*100% Hi-pot&ATE(Chroma)Tested
*100% Burn-in
*MTBF Above 40000HRS
*LVD authentication
*Conform to EN60950/IEC60950/GB4943 Safety standards
*Conform to FCC Part15/EN55022/GB17625EMC standards
*CEC IV or V Efficiency
*According to CE/UL/GS/CCC/SAA
Usage
* mobile phone .
* Ipad, tablet PC etc ,
* camera.
* Audio & Video equipments,MP3,MP4.
* shaver .
* electrical toy.
* LED strip ,LED light ,LED table lamp.
* Router,amplifier,CCTV camera,
* Home appliances ,setup box ,speaker,
* Audio & Video equipments,
* Wireless communication electronics .
* Medical equipments
Packaging Details:
Free PE bag for each power adapter
Blister Package: USD 0.10-USD 0.25
Window box or Gift box: US$ 0.25 to US$ 0.50
Delivery Detail:
DHL/FedEx/UPS: 3-5 workdays (for small volume)
Air Shipping: 5-7 workdays
Sea Shipping: 20-28 days
