| Prod Model: |
NP4.5-12 |
| Color: |
Red |
| Service: |
OEM Is Ok |
| Lead Time: |
20-25days |
| Warranty: |
18 Months |
| Type: |
Lead-Acid Batteries |
| Usage: |
Lighting |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

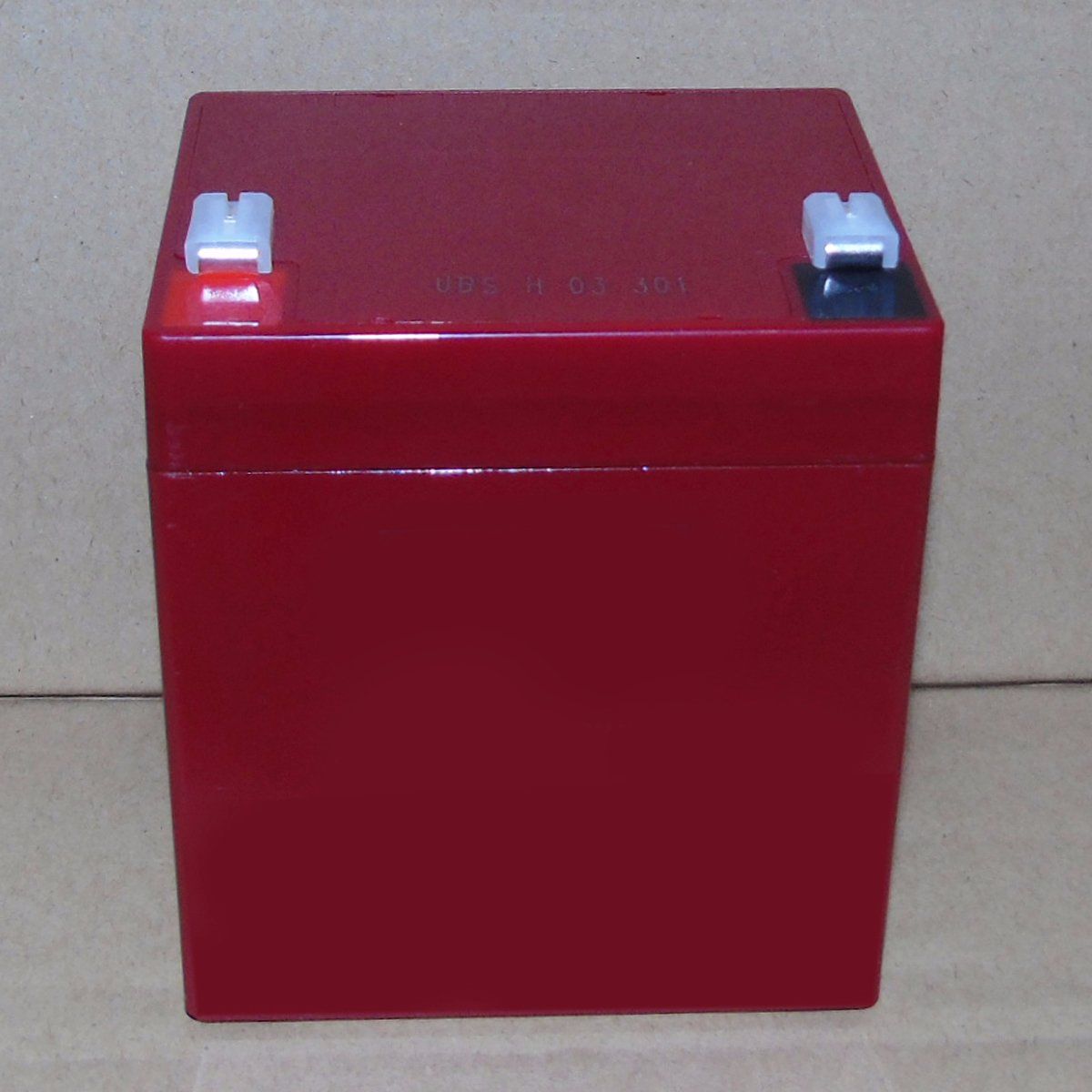

CBB 12V 4.5Ah Lead Acid AGM Battery
Description
By combining the service life reliability of a flooded battery with the performance energy density of a valve-regulated battery, we created a true long service life VRLA battery the gel range. This range offers 8-15 years design life with very good cycling capability, and is highly suited to telecom, UPS, renewable energy system, power stations and similar applications.
Features
-High-quality gel prepared with fumed silica ensures the electrolyte Liquid is uniformly distributed without stratification
-The electrolyte presents a gel state, without flowing or leakage, or recuction, Ensuring homogeneous reaction with the plate; Safe and maintenance Free operation
-Large amounts of liquid; High heat capacity; Good heat sinking capability; Wide operation temperature
-Using lead calcium tin alloy, very low self discharge rate. Long service life
Applications:
-Communication system, microwave station, mobile base station, data center, Radio / broadcasting station
-Power plant; Power transmission and transformation system
-Solar energy/ wind power system
-Emergency lighting and signal system
-EPS/ UPS system, etc
-Marine/ Boats /Navigational Aids (sailing boats, motorized yachts, motor boats, etc)
-Leisure vehicles (caravans, mobile homes, etc)
-Engine Starting
Certificates: ISO9001&14001, CE, UL
Standard: JIS, DIN, IEC & BS6290-4
Specification
| Model No | Rated Voltage(V) | Capacity (Ah) | Dimension | Weight | Terminal Type |
| Length | Width | Height | Total Height | kg |
| mm | mm | mm | mm |
| NP4-4 | 4 | 4 | 46 | 46 | 100 | 100 | 2.35 | F1 |
| NP1.3-6 | 6 | 1.3 | 97 | 24 | 52 | 58 | 0.31 | F1 |
| NP6-3.3 | 6 | 3.3 | 134 | 34 | 60 | 66 | 0.59 | F1/F2 |
| NP3.6-6 | 6 | 3.6 | 70 | 47 | 101 | 107 | 0.68 | F1/F2 |
| NP4-6 | 6 | 4 | 70 | 47 | 101 | 107 | 0.69 | F1/F2 |
| NP4.5-6 | 6 | 4.5 | 70 | 47 | 101 | 107 | 0.75 | F1/F2 |
| NP5-6 | 6 | 5 | 70 | 47 | 101 | 107 | 0.8 | F1/F2 |
| NP7-6 | 6 | 7 | 151 | 34 | 95 | 101 | 1.11 | F1/F2 |
| NP8.5-6 | 6 | 8.5 | 99 | 57 | 118 | 118 | 1.34 | F1/F2 |
| NP10-6 | 6 | 10 | 151 | 50 | 94 | 100 | 1.63 | F1/F2 |
| NP12-6 | 6 | 12 | 151 | 50 | 94 | 100 | 1.75 | F1/F2 |
| NP0.8-12 | 12 | 0.8 | 97 | 25 | 63 | 62 | 0.34 | cable&Bullet |
| NP1.3-12 | 12 | 1.3 | 97 | 43 | 52 | 58 | 0.5 | F1 |
| NP2-12 | 12 | 2 | 178 | 35 | 61 | 67 | 0.82 | F1/F2 |
| NP3.3-12 | 12 | 3.3 | 134 | 67 | 61 | 67 | 1.35 | F1/F2 |
| NP4-12 | 12 | 4 | 90 | 70 | 101 | 107 | 1.38 | F1/F2 |
| NP4.5-12 | 12 | 4.5 | 90 | 70 | 101 | 107 | 1.48 | F1/F2 |
| NP5-12 | 12 | 5 | 90 | 70 | 101 | 107 | 1.6 | F1/F2 |
| NP5.5-12 | 12 | 5.5 | 151 | 65 | 94 | 100 | 1.9 | F1/F2 |
| NP6.5-12 | 12 | 6.5 | 151 | 65 | 94 | 100 | 1.95 | F1/F2 |
| NP7-12 | 12 | 7 | 151 | 65 | 94 | 100 | 2.05 | F1/F2 |
| NP7.2-12 | 12 | 7.2 | 151 | 65 | 94 | 100 | 2.15 | F1/F2 |
| NP7.5-12 | 12 | 7.5 | 151 | 65 | 94 | 100 | 2.25 | F1/F2 |
| NP9-12 | 12 | 9 | 151 | 65 | 94 | 100 | 2.4 | F1/F2 |
| NP10-12 | 12 | 10 | 152 | 99 | 96 | 102 | 3.2 | F1/F2 |
| NP12-12 | 12 | 12 | 152 | 99 | 96 | 102 | 3.4 | F1/F2 |
| NP15-12 | 12 | 15 | 152 | 99 | 96 | 102 | 3.8 | F1/F2 |
| NP17-12 | 12 | 17 | 181 | 77 | 167 | 167 | 5.2 | L1 |
| NP18-12 | 12 | 18 | 181 | 77 | 167 | 167 | 5.5 | L1 |
| NP20-12 | 12 | 20 | 181 | 77 | 167 | 167 | 6 | L1 |
