12V 40ah Long Life Lead Acid Solar Power Storage Battery
| Price: |
US $ 11.5-40/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
FG037 |
| Item Name: |
Lead Acid Storage Battery |
| Maintenance Type: |
Free |
| Size: |
196*165*175*182mm |
| Weight: |
11.4kg/PCS |
| Material: |
Fire Proof Case |
| Warranty: |
2 Years |
| Terminal Type: |
Copper/Lead |
| Working Temperate: |
-15 to 45 |
| Certificate: |
Ce, MSDS |
| Cell: |
6 |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
12V 40ah Long Life Lead Acid Solar Power Storage Battery General Feature:
1. Long battery life, high capacity, Superior of recovery after discharge.
2. ABS material: increase the strength of battery container. (Flame-retardant ABS is optional)
3. High purity raw material: ensure low self discharge rate.
4. Silver- coated copper terminals, brass insert terminals and lead terminals improve the electric conductivity.
5. Pb CaSn alloy for plate grids: less gassing, less self-discharging high quality.
6. Maintenance-Free Operation
7. Low Self-DischargeProduct parameters:| Capacity 77°F(25ºC) | 20 hours rate(2.1A 10.8V) | 40Ah |
| 10 hours rate(4A 10.5V) | 38Ah |
| 5 hours rate(6.8A 10.5V) | 34Ah |
| 1 hour rate(25A 9.6V) | 25Ah |
| Internal Resistance | Full charged battery 77°F(25ºC):10mΩ |
|
| Capacity affected by Temperature (10 hour rate) | 104°F(40ºC) | 102% |
| 77°F(25ºC) | 100% |
| 32°F(10ºC) | 85% |
| 5°F(-15ºC) | 65% |
| Self-Discharge 68°F(20ºC) | Capacity after 3 month storage | 90% |
| Capacity after 6 month storage | 80% |
| Capacity after 12 month storage | 60% |
| Max discharge current77°F(25ºC):400A(5S) |
| Charge (Constant Voltage) | Float:13.6 to 13.8V/77°F/(25ºC) |
| Cycle:14.4 to 14.7V/77°F/(25ºC) |
| Max Current:10A |
Other Item:| Style | Size(mm) | Plate | Weight(kg) |
|
| SJ12V1.3Ah | 97*43*51*57 | 24 | 0.53 |
| SJ12V2.6Ah | 70*47*99*105 | 24 | 0.8 |
| SJ12V5.5Ah | 90*70*101*107 | 36 | 1.6 |
| SJ12V7Ah | 151*65*94*100 | 48 | 2.1 |
| SJ12V12Ah | 151*98*95*101 | 72 | 3.6 |
| SJ12V17Ah | 181*77*167*167 | 48 | 4.9 |
| SJ12V24Ah | 177*165*126*126 | 66 | 7.3 |
| SJ12V24Ah | 177*165*126*126 | 42 | 8.3 |
| SJ12V24Ah | 177*165*126*126 | 42 | 8.7 |
| SM12V33Ah | 196*131*155*180 | 42 | 9.2 |
| SM12V40Ah | 196*165*175 | 42 | 12 |
| SM12V55Ah | 229*138*208*227 | 48 | 15 |
| SM12V55Ah | 229*138*208*227 | 54 | 16.5 |
| SM12V65Ah | 350*166*175 | 66 | 19 |
| SM12V70Ah | 350*166*175 | 72 | 21 |
| SM12V80Ah | 350*166*175 | 78 | 22 |
| SM12V90Ah | 307*168*208*227 | 66 | 25 |
| SM12V100Ah | 328*172*222(222) | 66 | 28 |
| SM12V120Ah | 406*174*208*233 | 90 | 33 |
| SM12V134Ah | 340.5×173×280(285) | 66 | 36 |
| SM12V150Ah | 483*170*241*241 | 102 | 43 |
| SM12V180Ah | 532*207*215*240 | 126 | 52 |
| SM12V200Ah | 522*240*219*244 | 126 | 61 |
| SM12V210Ah | 522*240*219*228 | 150 | 63 |
| SM12V260Ah | 522*240*219*228 | 162 | 69 |

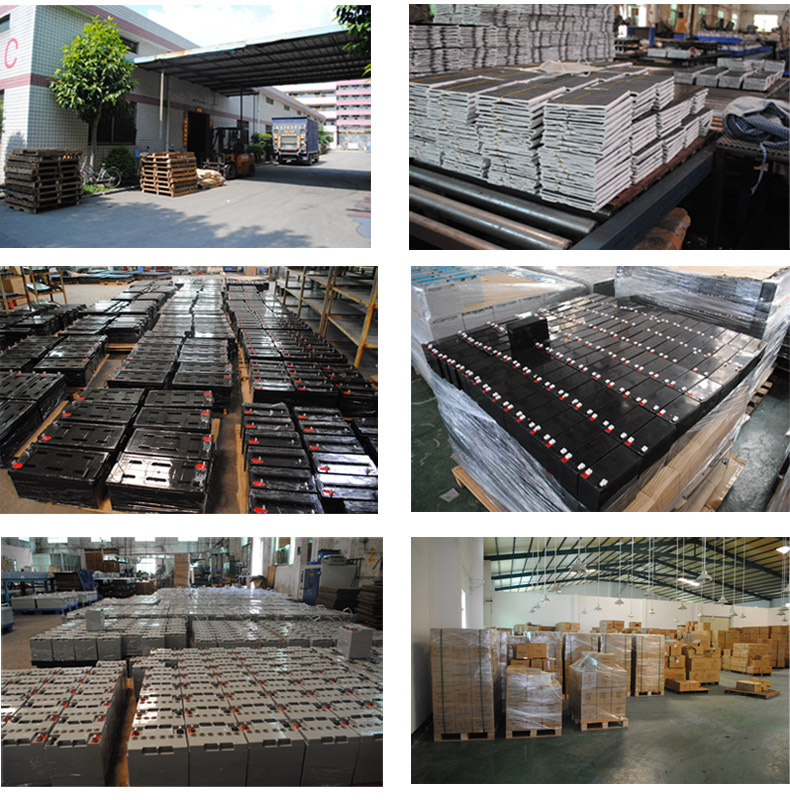

Factory Show:
Packing Details:
Battery Use and Maintenance:
1) Please use constant-voltage charge.2) In floating charge, the voltage is 2.23 to 2.27 per unit cell.
3) In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
4) Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
5) Please do not use it near the heat source and open flame.
6) Please keep it at low temperature. Please change it while there is liquid leaking or damage.
Our Qualification:
Our Services:
Samples and OEM, Warranty and After-Sale Service: - Welcome Solar Power Inverter Sample Test
- OEM Welcomed
- Warranty:2 Year
- After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support
How To Ask for Support if products failure in warranty?
1. Email us about PI number, serial number,Product S/N number, show us more details such as: pictures, your testing report or video, if it is the quality problem of product itself, we will resend a new one in next order.
2. we will submit your case to our after sales department.
3.Usually within 24 hours, we will email you the best solutions.
Hello, friends. We are a company with two factory called Future Green Energy Technology based in Guangzhou China. FGET provides solar power system and kinds of batteries globally.
Future Green Energy Technology, is your personal home clean energy solutions provider. This company is a future-oriented Emerging company, is committed to provide clean energy for global world.
The first main product is automotive battery and sealed lead acid battery, which is mainly used for car, truck, taxi, bus, ship, solar, UPS, etc^
The Company has ventured into retail market segment and has nationwide presence through a network of branch offices and channel partners. The Company focuses on being a responsible corporate citizen through active participation in solar power projects and also working with electric vehicles manufacturers.
Commitment to quality, consistency, innovation and service is taking the Company through a steady growth in the competitive market. The Company is ISO certified.
