12V 42A 500W Switching Mode Power Supply Unit

Name: 12V 42A 500W Switching Mode Power Supply Unit
Brand: all-electronics-online.com
SKU: 838824025
Availability: InStock
Rating: 5 (60 reviews)

Price:	US $ 76.5-78.5/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PC-120420
Output Voltage:	12V
Output Current:	42A
Power:	504W
Ripple & Noise:	120mv
Working Efficiency:	>85%
Voltage Tolerance:	±5%
Load Regulation:	±5%
Pfc:	>0.99
Color:	Black
Material:	100% PC
Output Type:	Single
Certification:	FCC
Brand:	Pengchu

Product Description

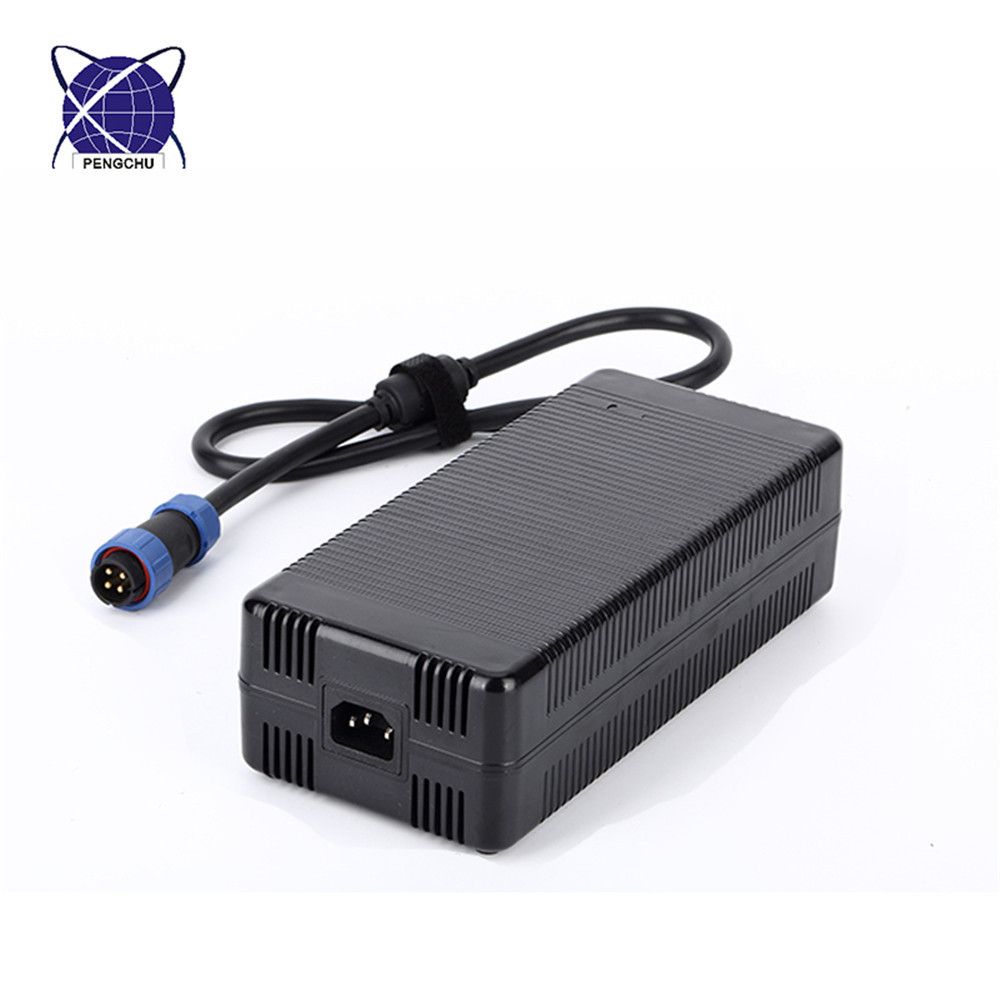

12V 42A 500W Switching Mode Power Supply Unit

Features:

Universal AC input/Full range(up to 264Vac)
Protection: Short circuit/Overload/Over temperature
High efficiency, long life and hign reliaility
100% full load burn-in test
One year warranty
PFC function
Class 1 design

Product Description

12V 42A 500W Switching Mode Power Supply Unit
Part NO.	PC-120420
DC Voltage	12V
Rate Current	42A
Current range	0~42A
Rate power	504W
Voltage tolerance	±5%
Line Regulation	±1%
Load Regulation	±5%
AC Input	100~240Vac 50/60Hz max: 90~264Vac 47/63Hz
Efficiency	>85%
Short Circuit Protection	Shall be protected when any output operation in circuit shortcondition,and shall be auto restart when the fault condition is removed.
Over Current Protection	130%-150%
Over Voltage Protection	115%-135%
Operating Temperature	-10-50ºC (±10ºC)
Relative Humidity	20%-90% RH
Storage Temperature	-40-80ºC (±10ºC)
DC Connector	4 PIN connector (Customized Available)
DC Cable	0.5-0.9(Customized Available)
AC Cable	1.2m ac power cord with USA/UK/EU/AU/India plugs

Certification:

Why Choose US:

Professional team for after-sale service 7*24
11 years Alibaba Gold supplier
Experienced R & D team and profesional sales team
OEM & ODM service, we will evaluate, design and produce your customized products
Offer confidentiality agreement to protect your profit, with us your business will be in safe your money in safe.

Trade Term:

Payment term: PayPal, Western Union, T/T
Leading time:7-9 working days
Sample: 3-5 working days after payment confirmed
Freight cost: Customers's shipping agent or our forwarder

FAQ:

Q1: WAHT'S YOUR MOQ:

A1: Usually MOQ is 100pcs, we also can accept trail order to support new customers, 1000pcs for customized units

Q2: WHAT'S YOUR WARRANTY?

A2: One year warranty.

Q3: HOW ABOUT THE LEADING TIME?

A3: For samples, leading time is 3-5 working days.

For mass cargo, leading time will be 7-9 working days

Shenzhen Pengchu Industry Co., Ltd. Was approved to establish by Shenzhen Administration for Industry and Commerce in 2004 and has passed ISO9001: 2000 international quality system certification.

We specialize in developing, producing and exporting switching power supply and power adapters for laptops, as well as other related accessories. As a measure to enhance the quality of our products, we have introduced the most up-to-date testing equipment from overseas markets to ensure that each product undergoes strict quality control from design to packing.

All the products are 100% aging test. With CE, FCC, RoHS, CB, ETL, SAA, C-TICK, PSE ceritifcates. OEM and ODM orders are always welcome.

"Customer foremost" is our unchangeable service tenet. Several years' hard work brings us trust and confidence from our customers. Our sales network spreads to every corner of the world. We would like to work hand in hand with our business partners to create a more wonderful future.

Shenzhen Pengchu Industry Co., Ltd is always here to help you!
