| Prod Model: |
SRD45-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
197*166*181 Mm |
| Color: |
Black |
| Cell: |
6 |
| Separator: |
AGM |
| Plate: |
Flat Plate |
| Battery Case: |
ABS |
| Terminal Type: |
Copper |
| Sealing: |
Glue Sealing |
| Safety: |
Explosion-Proof |
| Accessory: |
Screws |
| Type: |
Lead-Acid Batteries |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
Low Discharge Rate |
| Nominal Voltage: |
12V |
| Usage: |
Solar |
| Shape: |
Rectangle |
Product Description

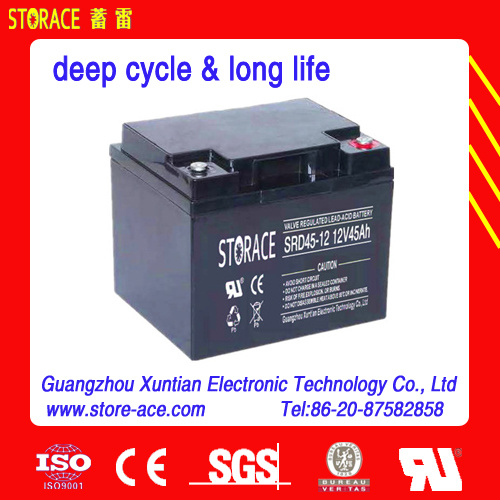

12V 45ah SLA Deep Cycle Battery
SRD45-12
Solar series batteries with valve regulated lead acid use particular alloy and material technology design to ensure an excellent performance in various environments, especially high and low temp. Solar series batteries are optimal for storage and conversion of photovoltaic energy and wind energy.
Battery Structure
1. Container/Cover: Made of UL94HB and LU 94V-0 ABS Plastic
2. Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
3. Separator: Import high quality AGM separator.
4. Positive Plates: PbCa grids minimize corrosion and prolong life.
5. Terminal post: Cooper material with maximum conductivity, enhance the high current rapidly.
6. Vent Valve: Allows the release of excess gas automatically for safety.
Application
Solar street light system, solar power home system, Photovoltaic system, Alternative energy system, Electric Utility, Outdoor control equipment, Railroad Utility, control systems, power systems, wind energy systems, telecommunications/communication systems & UPS system & etc.
Characteristics
· Long service life: Designed life is over five years.
· Good deep charge cycle performance: Good performance in charging, over-discharging and deep-discharging.
· Good resistance to corrosion and small internal resistance.
· Widely working environment: The solar battery can be used at widely difference in temperature from subzero 40° C to 60° C.
Operation and maintenance manual
For maintenance free battery, it's free maintenance in the operation. But we can only use it in proper operation to keep the long lifetime of the battery,
(1) Battery Installation
Batteries should be installed possibly in a clean, cool, ventilated and dry place. The battery should be placed upright. Each terminal between the batteries is connected firmly.
(2) The ambient temperature
Ambient temperature is important factor for the battery operation. When the ambient temperature is too high, Battery plate corrosion will be increased, while absorbing more moisture; When the ambient temperature is too low, the battery will not be full charged. All this will affect the battery life. Therefore we suggest the working ambient temperature is around 25 º C.
(3) The charge and discharge current
Battery charge and discharge current usually uses the concept C, the actual value of C is related to the capacity of the battery. For example, a 100AH battery: 1C = 100A. Charging current is around 0.1C; The charging current must not be bigger than 0.3C. Discharge current general requirements in 0.05 ~ 3C range.
(4) Charging voltage
After the battery is full converted to float charging, the float voltage is around 13.0V. If the charging voltage is too high will cause the battery overcharge, otherwise the battery will not be full charged. Charging voltage is abnormal, it may be caused by the battery configuration error, or it may be caused by controller failure. Do not choose the controller with bad quality.
(5) The depth of discharge
Depth of discharge of the battery life is also a important factor for lifetime of battery, the deeper the battery discharge, the fewer the number of cycles, so battery should avoided from deep discharge.
(6) Regular maintenance
Battery should be regular checked in every period time after used, such as check its outlook, measuring the average voltage of each battery, etc.
|
Capacity 77°F(25ºC) |
20 hours rate(2.1A 10.8V) |
42Ah |
|
10 hours rate(4A 10.5V) |
40Ah |
|
5 hours rate(6.8A 10.5V) |
34Ah |
|
1 hour rate(25A 9.6V) |
25Ah |
|
Internal Resistance |
Full charged battery 77°F(25ºC):10mΩ |
|
Capacity affected by Temperature (10 hour rate) |
104°F(40ºC) |
102% |
|
77°F(25ºC) |
100% |
|
32°F(10ºC) |
85% |
|
5°F(-15ºC) |
65% |
|
Self-Discharge 68°F(20ºC) |
Capacity after 3 month storage |
90% |
|
Capacity after 6 month storage |
80% |
|
Capacity after 12 month storage |
60% |
|
Max discharge current77°F(25ºC):400A(5S) |
|
Charge (Constant Voltage) |
Float:13.6 to 13.8V/77°F/(25ºC) |
|
Cycle:14.4 to 14.7V/77°F/(25ºC) |
|
Max Current:10A |
