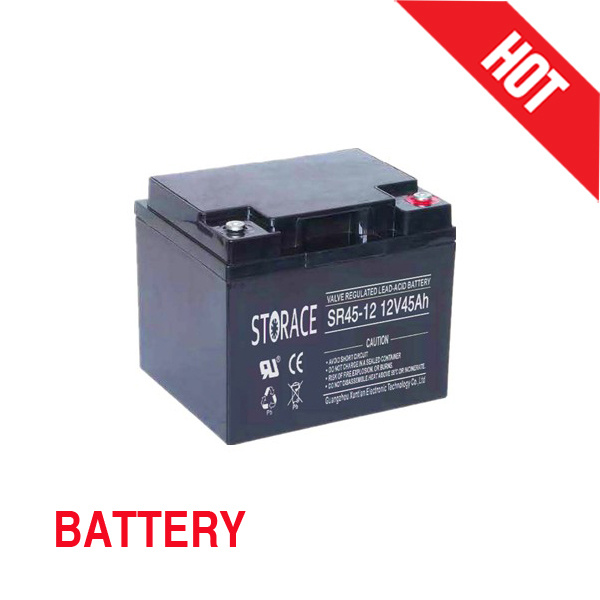

12V 45ah Storage Battery for Solar System (SR45-12)

Prod Model:	SR45-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	197*166*181 mm
Plate:	Flat Plate
Sealing:	Glue Sealing
Color:	Black/Dark Gray
Cell:	6
Type:	Lead-Acid Batteries
Usage:	Solar
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Rechargeable:	Chargeable
Shape:	Rectangle

Product Description

12V 45ah Storage battery for solar system SR(45-12)

Solar series batteries with valve regulated lead acid use particular alloy and material technology design to ensure an excellent performance in various environments, especially high and low temp. Solar series batteries are optimal for storage and conversion of photovoltaic energy and wind energy.

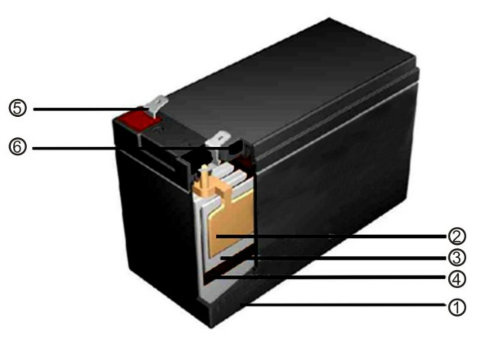

Battery Structure

1. Container/Cover: Made of UL94HB and LU 94V-0 ABS Plastic
2. Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
3. Separator: Import high quality AGM separator.
4. Positive Plates: PbCa grids minimize corrosion and prolong life.
5. Terminal post: Cooper material with maximum conductivity, enhance the high current rapidly.
6. Vent Valve: Allows the release of excess gas automatically for safety.

Application
Solar street light system, solar power home system, Photovoltaic system, Alternative energy system, Electric Utility, Outdoor control equipment, Railroad Utility, control systems, power systems, wind energy systems, telecommunications/communication systems & UPS system & etc.


Characteristics

· Long service life: Designed life is over five years.

· Good deep charge cycle performance: Good performance in charging, over-discharging and deep-discharging.

· Good resistance to corrosion and small internal resistance.

· Widely working environment: The solar battery can be used at widely difference in temperature from subzero 40° C to 60° C.

Data sheet

Capacity                                   77°F(25ºC)		20 hours rate(2.1A 10.8V)				42Ah
		10 hours rate(4A 10.5V)				40Ah
		5 hours rate(6.8A 10.5V)				34Ah
		1 hour rate(25A 9.6V)				25Ah
Internal Resistance		Full charged battery 77°F(25ºC):10mΩ
Capacity affected by Temperature                (10 hour rate)		104°F(40ºC)				102%
		77°F(25ºC)				100%
		32°F(10ºC)				85%
		5°F(-15ºC)				65%
Self-Discharge             68°F(20ºC)		Capacity after 3 month storage				90%
		Capacity after 6 month storage				80%
		Capacity after 12 month storage				60%
Max discharge current77°F(25ºC):400A(5S)
Charge                           (Constant Voltage)		Float:13.6 to 13.8V/77°F/(25ºC)
		Cycle:14.4 to 14.7V/77°F/(25ºC)
		Max Current:10A
