| Prod Model: |
FG061 |
| Item Name: |
AGM SLA Rechargeable Lead Acid Emergency Battery |
| Maintenance Type: |
Free |
| Size: |
151*65*95mm |
| Weight: |
1.82kg/PCS |
| Terminal Type: |
Copper/Lead |
| Warranty: |
2 Years |
| Safety: |
Explosion-Proof |
| Plate: |
Flat Plate |
| Certificate: |
Ce ,UL.ISO.PV |
| Cell: |
6 |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
Future Green 12V 4AH AGM SLA Rechargeable Lead Acid Emergency Battery
Features:
1. Sealed free maintenance deep cycle battery
2. Good deep charge cycle performance
3. OEM/ODM free charge
4. Widely working environment
5. Good quality plates grids
6. Long service life
7. Low self-discharge
8.Sufficient Capacity
| Nominal Voltage | 12V |
| Nominal Capacity (10 hour rate) | 4Ah |
Capacity
25°C(77°F) | 20 hour rate (0.2A) | 4Ah |
| 10 hour rate (0.38A) | 3.8Ah |
| 5 hour rate (0.64A) | 3.2Ah |
| 1 hour rate (2.6A) | 2.6Ah |
| Internal Resistance | Full Charged Battery 25°C(77°F) | ≤30mΩ |
| Float Life | 25°C(77°F) Float charge at 13.8V | About 5 Years |
Capacity affected by Temperature
(10 hour ) | 40°C (104°F) | 102% |
| 25°C (77°F) | 100% |
| 0°C (32°F) | 85% |
| -15°C (5°F) | 65% |
Self-Discharge
25°C(77°F) | Capacity after 3 month storage | 90% |
| Capacity after 6 month storage | 80% |
| Capacity after 12 month storage | 62% |
| Charge (Constant Voltage) 25°C(77°F) | Cycle | Initial Charging Current Less than 60A
Voltage 14.6-15.0V |
| Float | Voltage 13.5-13.8V |
Applications:- Solar and wind Powe System
- Cable TV
- Telecommunications
- Wheelchair
- Marine Equipment
- Electrical Toys
| - Military Equipment
- Emergency lighting
- Power Plants
- Medical Devices
- Golf Cart
- Emergency Alarm Systems
|
Battery Use and Maintenance:
1) Please use constant-voltage charge.2) In floating charge, the voltage is 2.23 to 2.27 per unit cell.
3) In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
4) Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
5) Please do not use it near the heat source and open flame.
6) Please keep it at low temperature. Please change it while there is liquid leaking or damage.
Other items: | Style | Size(mm) | Plate | Weight(kg) |
|
| SJ12V1.3Ah | 97*43*51*57 | 24 | 0.53 |
| SJ12V2.6Ah | 70*47*99*105 | 24 | 0.8 |
| SJ12V5.5Ah | 90*70*101*107 | 36 | 1.6 |
| SJ12V7Ah | 151*65*94*100 | 48 | 2.1 |
| SJ12V12Ah | 151*98*95*101 | 72 | 3.6 |
| SJ12V17Ah | 181*77*167*167 | 48 | 4.9 |
| SJ12V24Ah | 177*165*126*126 | 66 | 7.3 |
| SJ12V24Ah | 177*165*126*126 | 42 | 8.3 |
| SJ12V24Ah | 177*165*126*126 | 42 | 8.7 |
| SM12V33Ah | 196*131*155*180 | 42 | 9.2 |
| SM12V40Ah | 196*165*175 | 42 | 12 |
| SM12V55Ah | 229*138*208*227 | 48 | 15 |
| SM12V55Ah | 229*138*208*227 | 54 | 16.5 |
| SM12V65Ah | 350*166*175 | 66 | 19 |
| SM12V70Ah | 350*166*175 | 72 | 21 |
| SM12V80Ah | 350*166*175 | 78 | 22 |
| SM12V90Ah | 307*168*208*227 | 66 | 25 |
| SM12V100Ah | 328*172*222(222) | 66 | 28 |
| SM12V120Ah | 406*174*208*233 | 90 | 33 |
| SM12V134Ah | 340.5*173*280(285) | 66 | 36 |
| SM12V150Ah | 483*170*241*241 | 102 | 43 |
| SM12V180Ah | 532*207*215*240 | 126 | 52 |
| SM12V200Ah | 522*240*219*244 | 126 | 58 |
| SM12V210Ah | 522*240*219*228 | 150 | 61 |
| SM12V260Ah | 522*240*219*228 | 162 | 69 |

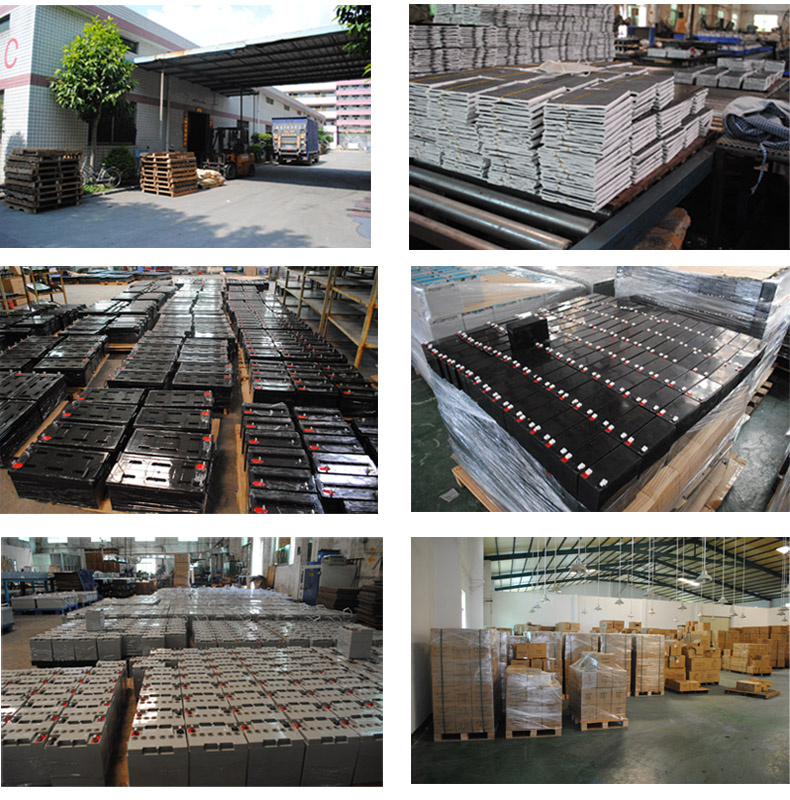

Factory Show:
Packing Details:
Our Qualification:
Our Services:
Samples and OEM, Warranty and After-Sale Service: - Sample can be provided for quality testing
- OEM Welcomed
- Warranty:2 Year
- After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support
How To Ask for Support if products failure in warranty?
1. Email us about PI number, serial number,Product S/N number, show us more details such as: pictures, your testing report or video, if it is the quality problem of product itself, we will resend a new one in next order.
2. we will submit your case to our after sales department.
3.Usually within 24 hours, we will email you the best solutions.
Hello, friends. We are a company with two factory called Future Green Energy Technology based in Guangzhou China. FGET provides solar power system and kinds of batteries globally.
Future Green Energy Technology, is your personal home clean energy solutions provider. This company is a future-oriented Emerging company, is committed to provide clean energy for global world.
The first main product is automotive battery and sealed lead acid battery, which is mainly used for car, truck, taxi, bus, ship, solar, UPS, etc^
The Company has ventured into retail market segment and has nationwide presence through a network of branch offices and channel partners. The Company focuses on being a responsible corporate citizen through active participation in solar power projects and also working with electric vehicles manufacturers.
Commitment to quality, consistency, innovation and service is taking the Company through a steady growth in the competitive market. The Company is ISO certified.
