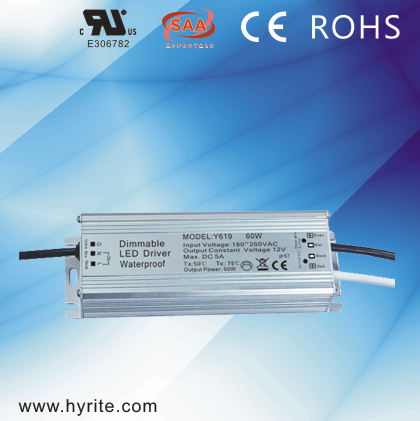

12V 50W Constant Voltage Dimmable LED Driver with Ce

Prod Model:	SD-619-CV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	50W
Output:	Constant Voltage
Input Voltage:	170-250V
IP Rating:	IP67
Warranty:	2 Years Warranty
Use:	for Spot Light, Down Light, Panel Light
Size:	160*55*33mm
Case:	Aluminum Case
Certificates/Standards:	Ce
Operating Temperature:	-25~40 Degree
Usage:	Construction, Building
Circuit Structure:	PWM Controlled
Output Type:	Terminal
Driving Method:	Constant Voltage
Certification:	Ce, EMC, SAA
Power Supply Voltage:	AC170-260V
Brand:	Neonpro

Product Description

12V 50W Constant Voltage Dimmable LED Driver with CE

Brief Introduction:
*Constant voltage output IP67
*0-10V Dimmable LED Drivers
*Used for LED Module, Strip, Spot Light, Down Light, Panel Light ect
*Protection: Over Load, Over Heat, Short Circuit
*Using 0-10V Dimmer
 *CE

Note:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 pc

Shipping:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air


Data sheet:

Model no.	SD-619-CV
Input voltage	170-250 VAC 50/60 Hz
Max. power	50W max
Dimmer	0-10V Dimmer
Output type	Constant Voltage
Efficiency	85%
Output	12VDC
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40 degree
Installation	Waterproof
IP rating	IP67
Certificates/standards	CE
Connection input/output	Terminal
Dimensions(L*W*H)	160*55*33mm
Packing information

Applications of LED Driver
* LED module
* LED strip
* LED-neon tube
* Bar light
* Other signage lighting

Important Parameter of LED Driver:
* Store Temperature: -25~75° C
* Working Temperature: -25~40° C
* Work environment: Indoor or outdoor installations
* Waterproof Rating: IP67
