| Prod Model: |
BB-SB1205 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Starting Power for Motorcycle |
| Cell Adopted: |
A123 26650 2500mAh |
| Max. Continuous Current: |
200A |
| Peak Discharge Current: |
400A |
| Connection Mode: |
Series and Parallel |
| Type: |
LiFePO4 |
| Usage: |
Motorcycle |
| Electrolyte: |
LiFePO4 |
Product Description

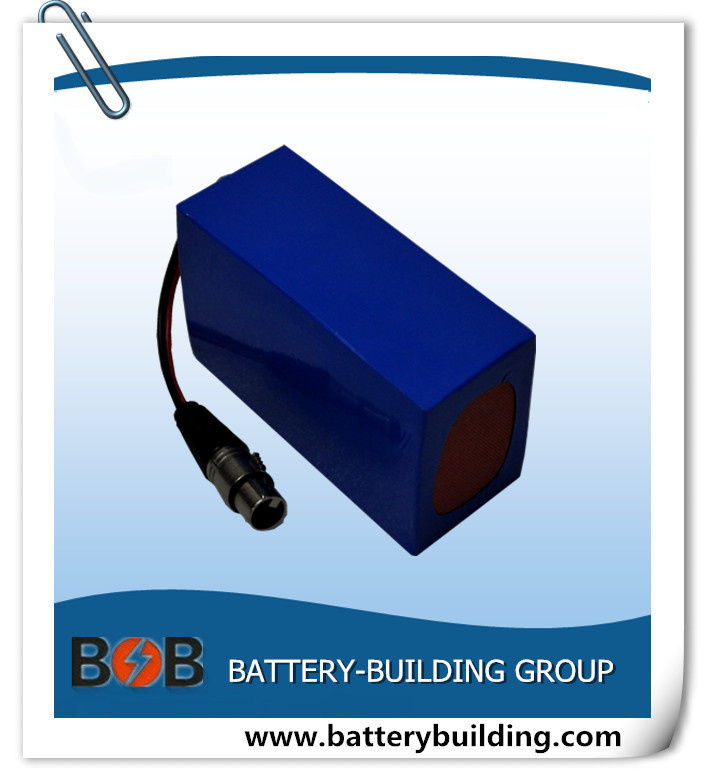

12V 5Ah A123 starter battery pack
Speicification
Nominal voltage: 12V
Nominal capacity: 5Ah
Cell: A123 ANR26650 2500mAh
Configuration of cells: 4S2P
Dimension: 106x54x67mm
Charge voltage: 14.6V
Recommend discharge cut off voltage: 10V
Max continuous discharge current: 30C
Max pulse discharge current: 60C
Weight: about 1.02kg
Discharge wire: 8AWG or 10AWG silicone cable with Anderson connector/XRL connector
Charge wire: 22AWG silicone cable with JST-XH balancing connector
Cycle life: 2000 times cycle
Payment Terms
1.We accept bank transfer(T/T) ,PayPal,Cash.
2.If you prefer other payment method,please contact us by email.
Shipping Terms
1.Samples order: sending by Express ( DHL/ UPS/ FEDEX/ TNT )
2.Bulk order: sending out by air/express/sea.
Warranty Instructions
1.We provide 2 years Warranty.
2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.
3.Goods should be returned in original condition to qualify for a replacement or repair.
Advantages
1.OEM&ODM manufacture, design any of special shape, dimension and other requirements battery packs.
2.Good quality, competitive price, fast delivery, excellent service.
3. Wonderful package, stable shipment, 100% testing and inspection before shipment to insure the quality.
4.CE, RoHS, UN38.3, UL, MSDS certificates.
5. Quick action&response,every inquires will be relied within 24 hours.
Other models:| Item No. | LiFePO4 Motorcycle Start Battery
with K2 cells | LiFePO4 Motorcycle Start Battery with A123 cells |
| BB-SB4S1P | K2 26650 2500mAh 4S1P
12V/2.5Ah
Max. constant current: 70A(5s)
Compatible: 50~250cc Motorcycle | A123 26650 2500mAh 4S1P
12V/2.5Ah
Max. constant current: 70A(5s)
Compatible: 50~250cc Motorcycle
| A123 26650 2300mAh 4S1P
12V/2.3Ah
Max. constant current: 70A(5s)
Compatible: 50~250cc Motorcycle
|
| BB-SB4S2P | K2 26650 2500mAh 4S2P
12V/5Ah
Max. constant current: 120A(5s)
Compatible: 50~250cc Motorcycle | A123 26650 2500mAh 4S2P
12V/5Ah
Max. constant current: 120A(5s)
Compatible: 50~250cc Motorcycle
| A123 26650 2300mAh 4S2P
12V/4.6Ah
Max. constant current: 120A(5s)
Compatible: 50~250cc Motorcycle
|
| BB-SB4S3P | K2 26650 2500mAh 4S3P
12V/7.5Ah
Max. constant current: 180A(5s)
Compatible: 500~1300cc Motorcycle
| A123 26650 2500mAh 4S3P
12V/7.5Ah
Max. constant current: 180A(5s)
Compatible: 500~1300cc Motorcycle | A123 26650 2300mAh 4S3P
12V/6.9Ah
Max. constant current: 180A(5s)
Compatible: 500~1300cc Motorcycle
|
| BB-SB4S4P | K2 26650 2500mAh 4S4P
12V/10Ah
Max. constant current: 260A(5s)
Compatible: 500~1300cc Motorcycle
| A123 26650 2500mAh 4S4P
12V/10Ah
Max. constant current: 260A(5s)
Compatible: 500~1300cc Motorcycle
| A123 26650 2300mAh 4S4P
12V/9.2Ah
Max. constant current: 260A(5s)
Compatible: 500~1300cc Motorcycle
|
SHENZHEN BATTERYBUILDING INDUSTRY Co., Limited is a profestional hi-tech industry company. We are specialized in different kinds of lithium batteries and engaged in the related products, include Lithium batteries, LiFePO4 batteries, BMS/PCM/CMB, RC/Lipo Batteries, and related battery chargers.
Various lithium battery cells models are provided, and can be customized the battery packs according to customers' Detailed requirements and applications. With a wide range, good quality, reasonable prices and stylish designs, our products are widely used in E-bikes, backup power, laptop, electrical toys, helicopter models, electrical cars, power tools and so on.
Our products are exported to all over the world, like Europe, USA, Canada etc. Our company focuses on the development of battery quality with our own research centre and technical team in battery developing, quality controlling and producing. Our aim is "to keep improving new product technology, to take Environment Protection as our responsibility; To provide customers with excellent service and technical support; To make our products much more environment-friendly and safer. "
If you hany any inquiry and question, please just contact us.
We are looking forward to establishing relationships with you in the near future.
