12V 60ah Lithium Battery Pack for Solar Panel System

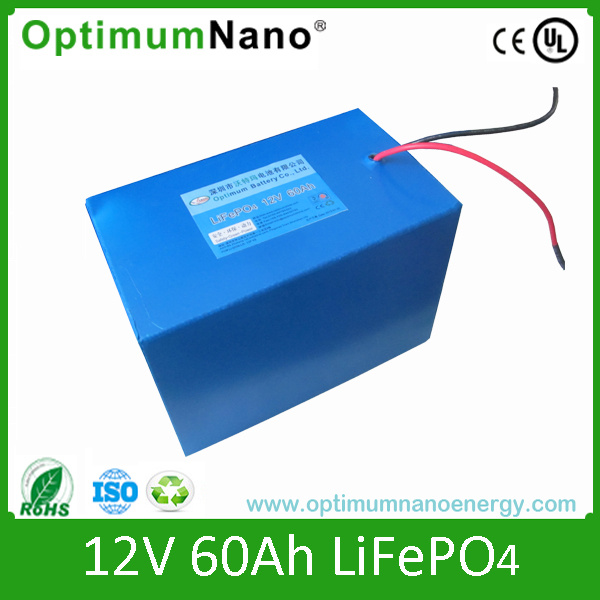

Name: 12V 60ah Lithium Battery Pack for Solar Panel System
Brand: all-electronics-online.com
SKU: 717460565
Availability: InStock
Rating: 4.5 (57 reviews)

Price:	US $ 200-400/Piece
Trade Terms:	FOB,EXW
Min Order:	10/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	opt-1260
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lead Time:	25days
Warranty:	5years
Life Cycles:	2000 Times
Application:	E-Car, E-Bike, Scooter, E-Walker
Certificate:	UL, CE, RoHS, ISO9001, Ts16949
Advantages:	Safety, Long Life Cycles, High Energy Density
Discharging Rate:	< 3c
Max Charge Rate:	14.6V
Max Discharge Rate:	10V
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Standard Voltage:	12V
Rated Capacity:	60ah
Electrolyte:	LiFePO4

Product Description

12V 60AH Lithium battery pack for solar panel system

12V 60AH battery pack for UPS, solar system, Computer and so on.
12V 60AH LiFePo4 battery pack specification
1)Rated voltage 12V
2)Rated capacity 60AH
3)Max charge voltage 14.6V
4)cut off voltage 10V
5)charge method CC&CV
6)Weight about 8kg

LiFePO4 battery structure
Protection in 7 aspects
Against vibration, water ingress, high temperature, low temperature, dust ingress, creepage, short circuit
3 features
Light in weight, small in dimesion, attractive in visual appearance

LiFePO4 battery advantages
1)Long cycle life (2000 cycles) is several times greater than Ni-MH, Ni-Cd or SLA.

2) Non-Toxic, environmentally-friendly product.

3) High safety
LiFePO4 is an intrinsically safer cathode material than Lithium-ion since exothermic reactions can not occur in batteries based on this material
LiFePO4 cells do not incinerate or explode under extreme conditions

4) Good performance in high-current discharge cycles.

We can design different capacity and different size batteries to meet your deman

Compay information
Factory address: Bld 9, Zhukeng Industrial Park, Pingshan New District, Shenzhen City, 518118, Chia. Welcome to visit our facotry.

Any battery pack we produced were assembled by series and parallels of single battery cells, So you can also buy single battery cells, and DIY according to your demands.
Type	Voltage (V)	Capacity (Ah)	Weight (g)	Energy Density (WH/kg weight ratio)	Energy Density (WH/L Volume Ratio)	Discharge rate	Life span(base on 1C discharge and charge rate
18650	3.2	1.4	39	115	270	≤ 3C	2000 cycles≥ 80%
26650-HP	3.2	2.2	80	88	200	10C~20C	2000 cycles≥ 80%
26650-LP	3.2	3.2	85	120	292	≤ 3C	2000 cycles≥ 80%
32650-LP	3.2	5	145	110	280	≤ 5C	2000 cycles≥ 80%
32650-LP	3.2	5.5	147	120	308	≤ 3C	2000 cycles≥ 80%
32650-LP	3.2	6	150	130	336	≤ 3C	2000 cycles≥ 80%

Company Name: OptimumNano Energy Co., Ltd

Name of Exhibition: The China Sourcing Fair

Address: Hong Kong Asia Exhibition Hall

Booth No: At at 9B05

Dates: Oct 11-14, 2015(4 Days)

In 2002, OptimumNano Energy Co., Ltd started the battery business in Shenzhen.

In 2006, OptimumNano began to focus on the production, Engineering, researching and manufacturing of LiFePO4-Lithium Iron Phosphate Battery, we believe the LiFePO4 shall be the best Lithium-ion Power Solution in the future

In 2008, OptimumNano finished the first Pure Electric Bus with LiFePO4 Battery, demonstrating and running for Shanghai EXPO.

In 2009, OptimumNano was awarded the honor of "National High-tech Enterprise".

In 2011, OptimumNano was the main vehicle power battery supplier of the 26th World Universiade Games.

In 2012, OptimumNano was selected as one the supporting company of "2012 New Energy Automotive Industry Technology Innovation Project", which was launched by the Ministry of Finance, the Ministry of Industry and the Ministry of Science and Technology.

In 2013, OptimumNano moved to new and bigger factory to meet our 500, 000 PCS daily production requirement.

In 2014, Shenzhen mayor Mr. Wang Rong and others come to our company to make researches and guidances and gave high praise for our company achievement in the new energy industry

OptimumNano set up the workstation for Academician Material Application. With around 500 R&D staffs, now we have more than 200 patents at home and abroad.

After over 13 years' development, OptimumNano has offices in local 31 cities, distribute our LiFePO4 batteries to over 40 countries in the world.
