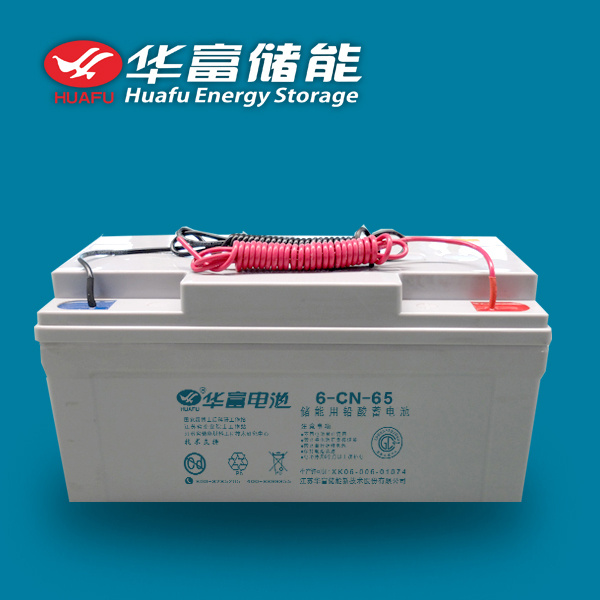

12V 65ah Solar Use Lead-Acid Battery
| Price: |
US $ 66-82/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
6-CN-65 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Net Size: |
350*166*174(L*W*H)mm |
| Total H: |
174mm |
| Weight: |
20.4kgs |
| Warranty: |
3 Years |
| Design Life: |
15 Years |
| Type: |
Lead-Acid Batteries |
| Usage: |
Lighting |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
Item No: 6-CN-65
Nominal Voltage: 12V
Nominal Capacity: 65 AH
Net Size: 350*166*174(L*W*H)mm Total H: 174mm
Weight: 20.4KGS
Warranty: 3 years
Design life: 8 years
Maintenance free: YES
Application:
Wind power station
Photovoltaic power station
Communictions
Telecommunication stations
Traffice field
Garden lamp power
Solar energy building
Other fields
Comprehensive performance:
1. Patents structure: Have "easy connection storage battery" patent structure, can buried underground to installation, to avoid pole corroded.
2. Excellent recovery performance: Use a special patented alloy and lead paste formula, have a strong capacity of recovery performance after deep discharge.
3. Strong charge acceptance: Used import low resistance materials and advanced technology, current become smaller at end of the charge and has a strong charge accept ability.
4. Wide temperature range: -30 degrees Celsius- 45 degrees Celsius
5. Environment-friendly: Not include Cadmium metal which is pollution to environment.
| Normal Voltage | 12V |
|
| Capacity | 65 Ah @ 10hr to 1.80V per cell @ 25 degree |
|
|
Internal Resistance
(full charged) | Approx. < 10 mΩ @ 25 degree |
|
Self Discharge
@ 25 degree | No more than 2 % after 30 days storage |
|
|
Operating Temperature
Range | -25 degree to 50 degree |
|
Recommended
Operating Temperature | -20 degtee to 25 degree |
|
Charging Voltage
@ | Float: 13.5 V
Max: 14.5 V |
|
| Contain Materials | ABS |
|
| Weight | Approx. 22.5 kg (49.5lbs) |
|
| Terminal | M6 |
|
| Dimension | L: 350 W: 166 H: 177 TH: 177 (mm) |
|
| Constant Power Discharge Characteristics Unit: W/cell |
|
|
|
| e | 2H | 5H | 10H |
| 1.80V | 268 | 141 | 80 |
| Constant Current Discharge Characteristics Unit: A |
|
|
|
| F. V/Time | 1H | 5H | 10H |
| 1.80V | 37 | 12 | 7 |
Huafu High Technology Energy Storage Co., Ltd is a leader in battery industry for energy storage in China, manufacturer ranks NO. 1 in sales of GEL battery in Chinses market, with more than 20 years experience in producing and exporting environmental friendly Rechargeable Valve Regulated Lead Acid (VRLA) Battery, AGM Sealed Lead Acid (SLA) Batteries, Deep cycle Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, Specialty batteries for plateaus, OPzV Battery, OPzS Batteries, Telecom Batteries, Lead Carbon, Lithium batteries.
Established in 1990, located in Gaoyou Industrical Park of 180000 square meters in Jiangsu, China. Today, Huafu has nearly 200 full-time R&D personnel, nearly 100 part-time R&D personnel, has built a national post-doctoral workstaions, technology research institution for energy storage materials. With International advanced automatic equipment and excellent producing process, Huafu produces an annual capacity of approximately 4, 000, 000kVAh.
Lead battery & Lithium Battery are our major prodcuts: Classify our lead battery into Energy Storage Battery Series, Back-Up Battery, EV Battery. The Energy Storage Battery Series includes 2V and 12V AMG lead acid battery, AGM GEL Battery, Pure Gel Battery, Solar Deep Cycle battery, Lead-Carbon battery, Heat-tolerant battery, Tubular OPZV battery, Tubular OPZS battery. The Back-up battery series includes 2V and 12V VRLA Battery, Telecom Front terminal battery. Our EV battery includes 6V, 8V, 12V battery for electric vehicle, electric forklift, etc. Lithium battery includes LiFePO4, Ternary lithium power battery.
In the passed 20 years, HUAFU staffs has been insisted on gaining the believe of customers by our quality. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognition, like UK's IEC60896.21/22. IEC61427, CE authentication of the European Union, UL recognition of the USA, Soncap certification for Nigeria and Golden Sunflower. RoHS, SGS, etc.
HUAFU ranks NO. 1 in sales of GEL battery in Chinese market. We has been cooperating with China Mobile Limited & Unicom Limited, ZTE Corporation, China Tower, Huawei Technologies, Emerson. Export from 10 years ago, near to Shanghai Port, Our long-term business ship has been built with Philips. Our products has also sold to USA, Brazil, Russia, Iran, Korea, Thailand, South Africa, Nigeria, Italy, Greece, Germany, Spain, etc.
Best Quality, Good Service, In time Support, Competitive Price. Choose Us!
