| Prod Model: |
sl |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maintenance Type: |
Low Rate |
| Sealed Type: |
Sealed |
| OEM/ODM: |
Accept |
| MOQ: |
Accept Small Quantity |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Medium Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

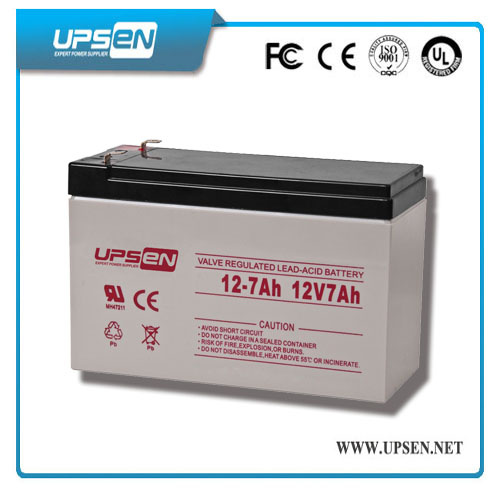

12V 6V Valve Regulated Lead Acid Battery for Energy Storage
key features
1:Easy installation and handling
2:sealed and maintenance free operation
3:Excellent Recovery from Deep Discharge
4:Wireless lawn movers vacuum cleaner and washing machine
5:Stronger resistance to corrode, more effective discharging
6:Advanced calcium lead alloy technology, maintenance-free design
7:At good consistency, no short circuit,anti-pole or poor welding problems
8:Accurate acid filler kept the amount of the electrolyte in each cell precisely
9:High quality AGM separator: extend cycle life and prevent micro short circuit
10:Flow the specification or users manual for the charging and discharging of battery
11:High discharging performance: With smooth discharging voltage and mild discharging
platform
main application
marine equipment,cable television ,medical equipment,Communication systems,Portable lights
,Alarm systems,Power tools,Medical equipment,Electric toys,Emergency lighting equipment,Fire alarm and security systems etc.
Technical Specification
model | nominal | capacity | external dimension | weight | terminal |
| voltage | (ah) | length | width | height | total height | approx | type |
| (v) | 10hr(20hr) | mm | inch | mm | inch | mm | inch | mm | inch | kg | pound |
|
| sl1250 | 12 | 5 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 106 | 4.2 | 1.7 | 3.74 | t1 |
| sl1250(ii) | 12 | 5 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 106 | 4.2 | 1.58 | 3.48 | t1/t2 |
| sl1250(iii) | 12 | 5 | 151 | 5.94 | 51 | 2.01 | 93 | 3.66 | 99 | 3.9 | 1.92 | 4.22 | t1/t2 |
| sl1250(iv) | 12 | 5 | 151 | 5.94 | 51 | 2.01 | 93 | 3.66 | 99 | 3.9 | 1.98 | 4.36 | t1/t2 |
| sl1250(v) | 12 | 5 | 151 | 5.9 | 51 | 2 | 93 | 3.66 | 99 | 3.9 | 1.8 | 3.96 | t1 |
| sl1250(vi) | 12 | 5 | 140 | 5.5 | 48 | 1.89 | 102 | 4.02 | 103 | 4.1 | 1.68 | 3.7 | t43 |
| sl1260 | 12 | 6 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.2 | 4.85 | t1/t2 |
| sl1265 | 12 | 6.5 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2 | 4.41 | t1/t2 |
| sl1265(ii) | 12 | 6.5 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 1.95 | 4.3 | t1/t2 |
| sl1270 | 12 | 7 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.34 | 5.16 | t1/t2 |
| sl1270(ii) | 12 | 7 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.2 | 4.86 | t1/t2 |
| sl1270(iii) | 12 | 7 | 151 | 5.94 | 51 | 2.01 | 94 | 3.7 | 100 | 3.9 | 2 | 4.41 | t1/t2 |
| sl1270(iv) | 12 | 7 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.15 | 4.75 | t1 |
| sl1275 | 12 | 7.5 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.47 | 5.45 | t1/t2 |
| sl1275(ii) | 12 | 7.5 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.38 | 5.24 | t1/t2 |
| sl1280 | 12 | 8 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.5 | 5.51 | t1/t2 |
| sl1290 | 12 | 9 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.78 | 6.13 | t2/t1 |
| sl1290(ii) | 12 | 9 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.9 | 2.45 | 5.4 | t2/t1 |
| sl12100 | 12 | 10 | 151 | 5.94 | 65 | 2.56 | 111 | 4.37 | 116 | 4.6 | 3.2 | 7.05 | t2 |
| sl12100(ii) | 12 | 10 | 151 | 5.94 | 98 | 3.86 | 94 | 3.7 | 100 | 3.9 | 3.45 | 7.6 | t1/t2 |
| sl12120 | 12 | 12 | 151 | 5.94 | 98 | 3.86 | 94 | 3.7 | 100 | 3.9 | 3.7 | 8.16 | t251/t1 |
| sl12120(ii) | 12 | 12 | 151 | 5.94 | 98 | 3.86 | 94 | 3.7 | 100 | 3.9 | 3.45 | 7.71 | t251/t1 |
| sl12140 | 12 | 14 | 151 | 5.94 | 98 | 3.86 | 94 | 3.7 | 100 | 3.9 | 4.1 | 9.02 | t2 |
| sl12150 | 12 | 15 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.6 | 5.3 | 11.68 | t3/t13 |
| sl12160 | 12 | 16 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.6 | 5.3 | 11.08 | t3/t13 |
| sl12180 | 12 | 18 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.6 | 5.3 | 11.68 | t3/t13 |
| sl12180(ii) | 12 | 18 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.6 | 5.5 | 12.11 | t3a/t13 |
| sl12200 | 12 | 20 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.6 | 5.8 | 12.76 | t3a/t14 |
| sl12220 | 12 | 22 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.6 | 6.1 | 13.43 | t3a/t14 |
| sl12240 | 12 | 24 | 166 | 6.54 | 175 | 6.9 | 125 | 4.92 | 125 | 4.9 | 7.2 | 15.87 | t4/t13 |
| sl12240(ii) | 12 | 24 | 166 | 6.5 | 125 | 4.92 | 175 | 6.89 | 182 | 7.2 | 8 | 17.6 | t66/t32 |
| sl12260 | 12 | 26 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.9 | 7.8 | 17.62 | t4/t13 |
| sl12280 | 12 | 28 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.9 | 9 | 19.82 | t4/t13 |
| sl12280(ii) | 12 | 28 | 166 | 6.5 | 125 | 4.92 | 175 | 6.89 | 182 | 7.2 | 9 | 19.82 | t66/t32 |
| sl12280(iii) | 12 | 28 | 175 | 6.9 | 166 | 6.54 | 125 | 4.92 | 125 | 4.9 | 8.7 | 19.16 | t4/t13 |
| sl1870 | 18 | 7 | 151 | 5.9 | 102 | 4.02 | 100 | 3.94 | 100 | 3.9 | 3.5 | 7.7 | tw5 |
| sl2435 | 24 | 3.5 | 180 | 7.1 | 73 | 2.87 | 70 | 2.76 | 70 | 2.8 | 2.6 | 5.73 | tw10 |
| sl24180 | 24 | 18 | 170 | 6.69 | 146 | 5.75 | 187 | 7.36 | 187 | 7.4 | 11 | 24.23 | tw10 |
| sl6360 | 6 | 36 | 162 | 6.38 | 88 | 3.46 | 164 | 6.46 | 170 | 6.7, , | 5.9 | 13.04 | t251/t16 |
| sl6420 | 6 | 42 | 162 | 6.38 | 88 | 3.46 | 164 | 6.46 | 170 | 6.7 | 5.9 | 13.04 | t251/t16 |
| sl61000 | 6 | 100 | 195 | 7.67 | 170 | 6.69 | 2.06 | 8.11 | 211 | 8.3 | 17 | 37.57 | t16 |
| sl61050 | 6 | 105 | 280 | 11.02 | 128 | 5.03 | 203 | 7.99 | 203 | 8 | 18.5 | 40.88 | t16 |
| sl61200 | 6 | 120 | 195 | 7.67 | 170 | 6.69 | 206 | 8.11 | 211 | 8.3 | 19 | 42 | t16 |
| sl61500 | 6 | 150 | 260 | 10.2 | 180 | 7.09 | 247 | 9.72 | 252 | 9.9 | 27 | 59.67 | t19 |
| sl61800 | 6 | 180 | 260 | 10.2 | 180 | 7.09 | 247 | 9.72 | 252 | 9.9 | 29 | 64.09 | t19 |
| sl61800(ii) | 6 | 180 | 323 | 12.72 | 178 | 7.01 | 224 | 8.82 | 229 | 9 | 30 | 66.14 | t85 |
| sl61900 | 6 | 190 | 306 | 12 | 169 | 6.65 | 223 | 8.78 | 228 | 9 | 28 | 61.6 | t19 |
| sl62000 | 6 | 200 | 323 | 12.72 | 178 | 7.01 | 224 | 8.82 | 229 | 9 | 29.5 | 65.19 | t19 |
| sl62250 | 6 | 225 | 243 | 9.57 | 188 | 7.4 | 275 | 10.8 | 275 | 11 | 34.5 | 76.24 | t19 |
| sl62250(ii) | 6 | 225 | 260 | 10.2 | 180 | 7.09 | 247 | 9.72 | 252 | 9.9 | 29.5 | 65.2 | t19 |
| sl81800 | 8 | 180 | 260 | 10.23 | 182 | 7.17 | 295 | 11.6 | 300 | 12 | 36.5 | 64.09 | t19 |
| sl12330 | 12 | 33 | 196 | 7.7 | 131 | 5.16 | 155 | 6.1 | 170 | 6.7 | 10 | 22.1 | t16/t64 |
| sl12330(ii) | 12 | 33 | 196 | 7.7 | 131 | 5.16 | 155 | 6.1 | 170 | 6.7 | 9.7 | 21.44 | t16/t64 |
| sl12350 | 12 | 35 | 196 | 7.7 | 131 | 5.16 | 155 | 6.1 | 170 | 6.7 | 10.5 | 23.2 | t16/t64 |
| sl12400 | 12 | 40 | 197 | 7.73 | 166 | 6.54 | 171 | 6.73 | 171 | 6.7 | 13.5 | 29.74 | t9/t16 |
| sl12400(ii) | 12 | 40 | 197 | 7.73 | 166 | 6.54 | 171 | 6.73 | 171 | 6.7 | 13 | 28.73 | t9/t16 |
| sl12400(iii) | 12 | 40 | 197 | 7.76 | 166 | 6.54 | 175 | 6.89 | 180 | 7.1 | 13 | 28.6 | t51 |
| sl12150w | 12 | 40 | 197 | 7.76 | 166 | 6.54 | 170 | 6.69 | 170 | 6.7 | 13.5 | 29.83 | t66 |
| sl12440 | 12 | 44 | 196 | 7.7 | 166 | 6.54 | 171 | 6.73 | 171 | 6.7 | 13.5 | 29.83 | t7/t9/t16 |
| sl12440(ii) | 12 | 44 | 197 | 7.76 | 166 | 6.54 | 175 | 6.89 | 182 | 7.2 | 13.5 | 29.83 | t51 |
| sl12500 | 12 | 50 | 230 | 9.1 | 138 | 5.43 | 208 | 8.19 | 232 | 9.1 | 17.2 | 38 | t9/t16 |
| sl12550 | 12 | 55 | 230 | 9.1 | 138 | 5.43 | 208 | 8.19 | 232 | 9.1 | 17.2 | 38 | t9/t16 |
| sl12550(ii) | 12 | 55 | 230 | 9.1 | 138 | 5.43 | 208 | 8.19 | 228 | 8.9 | 17.2 | 38 | t53 |
| sl12550(iii) | 12 | 55 | 230 | 9.1 | 138 | 5.43 | 211 | 8.19 | 226 | 8.9 | 17.2 | 38 | t16 |
| sl12550(iv) | 12 | 55 | 277 | 10.91 | 106 | 4.17 | 222 | 8.74 | 222 | 8.7 | 17.5 | 38.58 | t102 |
| sl12600 | 12 | 60 | 240 | 9.45 | 200 | 7.87 | 199 | 7.83 | 209 | 8.2 | 21 | 46.3 | t15 |
| sl12600(ii) | 12 | 60 | 350 | 13.78 | 167 | 6.57 | 179 | 7.05 | 179 | 7.1 | 21 | 46.3 | t9/t16 |
| sl12600(iii) | 12 | 60 | 265 | 10.43 | 190 | 7.48 | 222 | 8.74 | 222 | 8.7 | 21 | 46.3 | t |
| sl12650 | 12 | 65 | 350 | 13.8 | 166 | 6.54 | 179 | 7.05 | 179 | 7.1 | 21 | 46.4 | t9/t16 |
| sl12650(ii) | 12 | 65 | 350 | 13.8 | 166 | 6.54 | 179 | 7.05 | 179 | 7.1 | 22 | 48.5 | t9/t16 |
| sl12700 | 12 | 70 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 229 | 9 | 23 | 50.66 | t16/t33 |
| sl12700(ii) | 12 | 70 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 229 | 9 | 22.8 | 50.3 | t16/t33 |
| sl12700(iii) | 12 | 70 | 260 | 10.2 | 169 | 6.65 | 210 | 8.27 | 217 | 8.5 | 22.8 | 50.27 | t9/t16 |
| sl12700(iv) | 12 | 70 | 350 | 3.78 | 167 | 6.67 | 178 | 7.01 | 179 | 7.1 | 22.5 | 49.72 | t9/t16 |
| sl12750 | 12 | 75 | 562 | 22.13 | 114 | 4.49 | 188 | 7.4 | 188 | 7.4 | 27 | 59.52 | t102 |
| sl12800 | 12 | 80 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 229 | 9 | 23.5 | 51.93 | t16/t33 |
| sl12800(ii) | 12 | 80 | 350 | 13.78 | 166 | 6.54 | 179 | 7.05 | 179 | 7.1 | 23.5 | 51.7 | t16 |
| sl12800(iii) | 12 | 80 | 350 | 13.78 | 166 | 6.54 | 179 | 7.05 | 179 | 7.1 | 23 | 50.71 | t9/t16 |
| sl12900 | 12 | 90 | 307 | 12.08 | 169 | 6.65 | 211 | 8.3 | 234 | 9.2 | 28 | 61.88 | t10/t16 |
| sl12900(ii) | 12 | 90 | 307 | 12.08 | 169 | 6.65 | 211 | 8.3 | 234 | 9.2 | 27.5 | 60.77 | t10/t16 |
| sl12900(iii) | 12 | 90 | 307 | 12.1 | 168 | 6.61 | 208 | 8.19 | 214 | 8.4 | 28 | 61.88 | t10/t16 |
| sl121000 | 12 | 100 | 330 | 12.99 | 172 | 6.77 | 214 | 8.43 | 237 | 9.3 | 32 | 70.55 | t10/t16 |
| sl121000(ii) | 12 | 100 | 331 | 13 | 173 | 6.81 | 213 | 8.39 | 235 | 9.3 | 30.8 | 68.1 | t10/t16 |
| sl121000(iii) | 12 | 100 | 407 | 16 | 174 | 6.85 | 209 | 8.23 | 233 | 8.8 | 34 | 75 | t16/t11d |
| sl121050 | 12 | 105 | 508 | 20 | 110 | 4.33 | 224 | 8.82 | 239 | 9.4 | 30.6 | 67.6 | t16 |
| sl121100 | 12 | 110 | 331 | 13 | 173 | 6.81 | 213 | 8.39 | 235 | 9.3 | 33 | 72.9 | t10/t16 |
| sl121200 | 12 | 120 | 407 | 16 | 174 | 6.85 | 209 | 8.23 | 233 | 9.2 | 38 | 83.98 | t11/t16 |
| sl121200(ii) | 12 | 120 | 407 | 16 | 174 | 6.85 | 209 | 8.23 | 233 | 9.2 | 36.5 | 80.66 | t11/t16 |
| sl121340 | 12 | 134 | 341 | 13.4 | 173 | 6.81 | 283 | 11.1 | 289 | 11 | 41.5 | 91.3 | t19 |
| sl121500 | 12 | 150 | 484 | 191.1 | 171 | 6.73 | 241 | 9.49 | 241 | 9.5 | 46 | 101 | t12/t50 |
| sl121600 | 12 | 160 | 534 | 21.1 | 209 | 8.23 | 216 | 8.5 | 237 | 9.3 | 52 | 115 | t11/t60 |
| sl121600(i) | 12 | 160 | 534 | 21.1 | 209 | 8.23 | 216 | 8.5 | 237 | 9.3 | 50 | 110.5 | t11/t60 |
| sl121800 | 12 | 180 | 530 | 20.8 | 209 | 8.23 | 216 | 8.5 | 237 | 9.3 | 55.5 | 122.6 | t11/t60 |
| sl121800(ii) | 12 | 180 | 534 | 21.1 | 209 | 8.23 | 216 | 8.5 | 237 | 9.3 | 53 | 117.1 | t11/t60 |
| sl122000 | 12 | 200 | 522 | 20.6 | 240 | 9.45 | 220 | 8.66 | 244 | 9.6 | 63.5 | 140.4 | t11/t19 |
| sl122000(ii) | 12 | 200 | 522 | 20.6 | 240 | 9.45 | 220 | 8.66 | 244 | 9.6 | 60.5 | 133.7 | t11/t19 |
| sl122300 | 12 | 230 | 520 | 20.5 | 268 | 10.6 | 220 | 8.66 | 240 | 9.4 | 72.5 | 160.2 | t12/t19 |
| sl122300(ii) | 12 | 230 | 520 | 20.5 | 268 | 10.6 | 220 | 8.66 | 240 | 9.4 | 69.5 | 153.6 | t12/t19 |
| sl122500 | 12 | 250 | 520 | 20.5 | 268 | 10.6 | 220 | 8.66 | 241 | 9.3 | 76 | 174 | t12/t19 |
| sl122500(ii) | 12 | 250 | 520 | 20.5 | 268 | 10.6 | 220 | 8.66 | 241 | 9.3 | 73 | 161.3 | t12/t19 |
| *specification are subject to change without prior notice |
