| Prod Model: |
GL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sample: |
Accepted |
| OEM: |
Available |
| Maintenance Type: |
Free |
| Container Material: |
Enhanced ABS |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
2V |
| Discharge Rate: |
Medium Discharge Rate |
| Shape: |
Flat Battery |
| Rechargeable: |
Chargeable |
Product Description

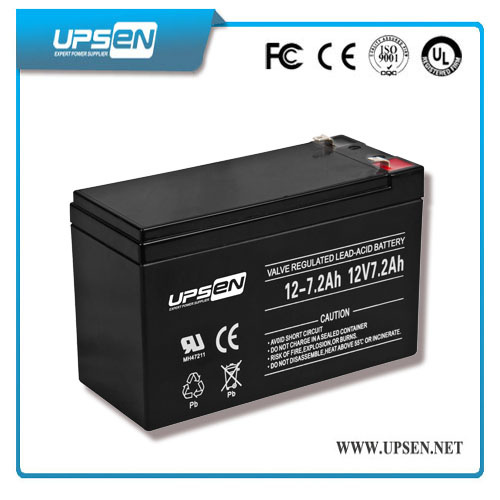

12v 7.2ah Deep cycle gel battery with long life
Gel Battery Key Features
1:ABS plastic shell is fast and anti-aging
2:Safety valve installation for explosion proof
3:High cranking current for starting and winch applications
4:GEL Battery has smaller internal resistance compared to AGM.
5:Superior price advantage compared to traditional Gel technology
6:Not susceptible to thermal runaway like traditional AGM technology
7:Very low self discharge-can be left for long periods without charging
8:Maintenance-free and no acid or water for maintenance in usage
9:Low self-discharge and good discharge performance at low temperature
10:Wide range of operating temperatures with temperature compensated charging.
11:Low selfdischarge: lower than 3% of rated capacity per month under normal operating temperature
Gel Battery Applications
Telephone switchboard,Fire fighting,safety device,Communication systems,Communications Equipment,Telecommunications Systems,Electric powered Bicycle and Wheelchairs,Television & Video Recorders,Emergency Lighting SystemsSystem,Sensitive Electronic Equipment etc.
Technical Specification
Model | Nominal | Capacity | External Dimension | Weight | Terminal |
| Voltage | (Ah) | Length | Width | Height | Total Height | Approx | Type |
| (V) | 10Hr(20hr) | mm | inch | mm | inch | mm | inch | mm | inch | kg | pound | |
| GL12310 | 12 | 31 | 196 | 7.7 | 131 | 5.16 | 155 | 6.1 | 170 | 6.69 | 11 | 24.31 | T64/T16 |
| GL12400 | 12 | 40 | 196 | 7.73 | 166 | 6.54 | 171 | 6.73 | 171 | 6.73 | 14 | 30.94 | T9/T16 |
| GL12500 | 12 | 50 | 230 | 9.1 | 138 | 5.43 | 208 | 8.19 | 232 | 9.13 | 17.5 | 38.55 | T9/T16 |
| GL12650 | 12 | 65 | 350 | 13.8 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | 23 | 50.8 | T9/T16 |
| GL12700 | 12 | 70 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 229 | 9.01 | 24 | 53 | T33B/T16 |
| GL12800 | 12 | 80 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 229 | 9.02 | 26 | 57.4 | T33B/T16 |
| GL12850 | 12 | 85 | 307 | 12.08 | 169 | 6.65 | 211 | 8.3 | 234 | 9.21 | 29 | 64.1 | T10B/T16 |
| GL12950 | 12 | 95 | 394 | 15.51 | 109 | 4.29 | 285 | 11.22 | 285 | 11.2 | 34 | 74.96 | T46 |
| GL12950(II) | 12 | 95 | 508 | 20 | 110 | 4.33 | 224 | 8.82 | 239 | 9.41 | 33 | 72.75 | T46 |
| GL121000 | 12 | 100 | 331 | 13 | 173 | 6.81 | 213 | 8.39 | 235 | 9.25 | 32 | 71 | T10T16 |
| GL121000(II) | 12 | 100 | 330 | 12.99 | 173 | 6.81 | 214 | 8.43 | 219 | 8.62 | 32 | 70.4 | T16 |
| GL121200 | 12 | 120 | 407 | 16 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | 39.5 | 87.3 | T11D/T16 |
| GL121340 | 12 | 134 | 341 | 13.43 | 173 | 6.81 | 283 | 11.14 | 283 | 11.1 | 42.5 | 93.7 | T19 |
| GL121350 | 12 | 135 | 484 | 19.06 | 177 | 6.97 | 241 | 9.49 | 241 | 9.49 | 46 | 101.4 | T12/T50 |
| GL121500 | 12 | 150 | 484 | 19.1 | 171 | 6.73 | 241 | 9.49 | 241 | 9.49 | 49 | 108 | T12/T50 |
| GL121500(II) | 12 | 150 | 551 | 21.69 | 109 | 4.29 | 228 | 8.98 | 228 | 8.98 | 51 | 112.4 | T46 |
| GL121550 | 12 | 155 | 547 | 21.54 | 125 | 4.92 | 317 | 12.48 | 317 | 12.5 | 56 | 123.5 | T46 |
| GL121600 | 12 | 160 | 534 | 21.1 | 209 | 8.23 | 216 | 8.5 | 237 | 9.33 | 53 | 117 | T11/T60 |
| GL121800 | 12 | 180 | 530 | 20.8 | 209 | 8.23 | 216 | 8.5 | 237 | 9.33 | 57 | 126 | T11/T60 |
| GL122000 | 12 | 200 | 522 | 20.6 | 240 | 9.45 | 220 | 8.66 | 244 | 9.6 | 67 | 148 | T11/T19 |
| GL122300 | 12 | 230 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 240 | 9.44 | 76 | 168 | T12/T19 |
| GL122500 | 12 | 250 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 241 | 9.29 | 79 | 175 | T12/T19 |
| GL61800 | 6 | 180 | 260 | 10.2 | 180 | 7.09 | 246 | 9.69 | 251 | 9.89 | 30 | 66.1 | T19 |
| GL62000 | 6 | 200 | 323 | 12.7 | 178 | 7.01 | 224 | 8.81 | 248 | 9.77 | 31 | 38.3 | T19 |
| GL62200 | 6 | 220 | 243 | 9.57 | 188 | 7.41 | 275 | 10.83 | 275 | 10.8 | 34.5 | 75.9 | T19 |
| GL2500 | 2 | 50 | 160 | 6.3 | 50 | 1.97 | 166 | 6.54 | 176 | 6.93 | 3.2 | 7.1 | T16 |
| GL21000 | 2 | 100 | 171 | 6.73 | 72 | 2.83 | 206 | 8.11 | 227 | 8.94 | 6.4 | 14.11 | T16 |
| GL21500 | 2 | 150 | 172 | 6.8 | 102 | 4.02 | 206 | 8.11 | 227 | 8.92 | 9 | 19.8 | T94 |
| GL22000 | 2 | 200 | 172 | 6.8 | 111 | 4.37 | 329 | 12.96 | 365 | 14.4 | 14 | 30.9 | T20 |
| GL23000 | 2 | 300 | 171 | 6.7 | 151 | 5.94 | 330 | 13 | 365 | 14.4 | 20.5 | 45.2 | T20 |
| GL24000 | 2 | 400 | 211 | 8.3 | 176 | 6.93 | 330 | 13 | 366 | 14.4 | 27.5 | 60.6 | T20 |
| GL25000 | 2 | 500 | 242 | 9.5 | 172 | 6.8 | 331 | 13 | 356 | 14 | 33.5 | 73.9 | T20 |
| GL26000 | 2 | 600 | 301 | 11.9 | 175 | 6.89 | 331 | 13 | 356 | 14 | 41 | 90.4 | T20 |
| GL28000 | 2 | 800 | 411 | 16.1 | 175 | 6.89 | 330 | 13 | 356 | 14 | 55 | 121.3 | T20 |
| GL210000 | 2 | 1000 | 475 | 18.7 | 175 | 6.89 | 330 | 12.99 | 356 | 14 | 66.5 | 146.6 | T20 |
| GL215000 | 2 | 1500 | 401 | 15.8 | 351 | 13.8 | 344 | 13.5 | 369 | 14.5 | 103.5 | 228.2 | T20 |
| GL220000 | 2 | 2000 | 491 | 19.3 | 351 | 13.8 | 344 | 13.5 | 369 | 14.5 | 136 | 299.8 | T20 |
| GL230000 | 2 | 3000 | 712 | 28 | 353 | 13.9 | 343 | 13.5 | 369 | 14.5 | 203.5 | 448.6 | T20 |
| *Specification are subject to change without prior notice |
Competitive Advantages:
1: Good after-sales service, we will be full responsible for any faults caused by our side
2: Professional experience in power field more than 10 years
3: Professional technical support before and after sales
4: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
5: Free OEM & ODM Service
6: Competitive price, quality and mature products
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
