12V 75ah Deep Cycle Sealed Solar Power System Gel Battery
| Price: |
US $ 2.25-160/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
FG237 |
| Item Name: |
Sealed Solar Power System Gel Battery |
| Maintenance Type: |
Free |
| Size: |
350*166*175mm |
| Weight: |
23kg |
| Material: |
Fire Proof Case |
| Warranty: |
2 Years |
| Cell: |
6 |
| Working Temperate: |
-15 to 45 |
| Certificate: |
Ce,MSDS |
| Terminal Type: |
Copper/Lead |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

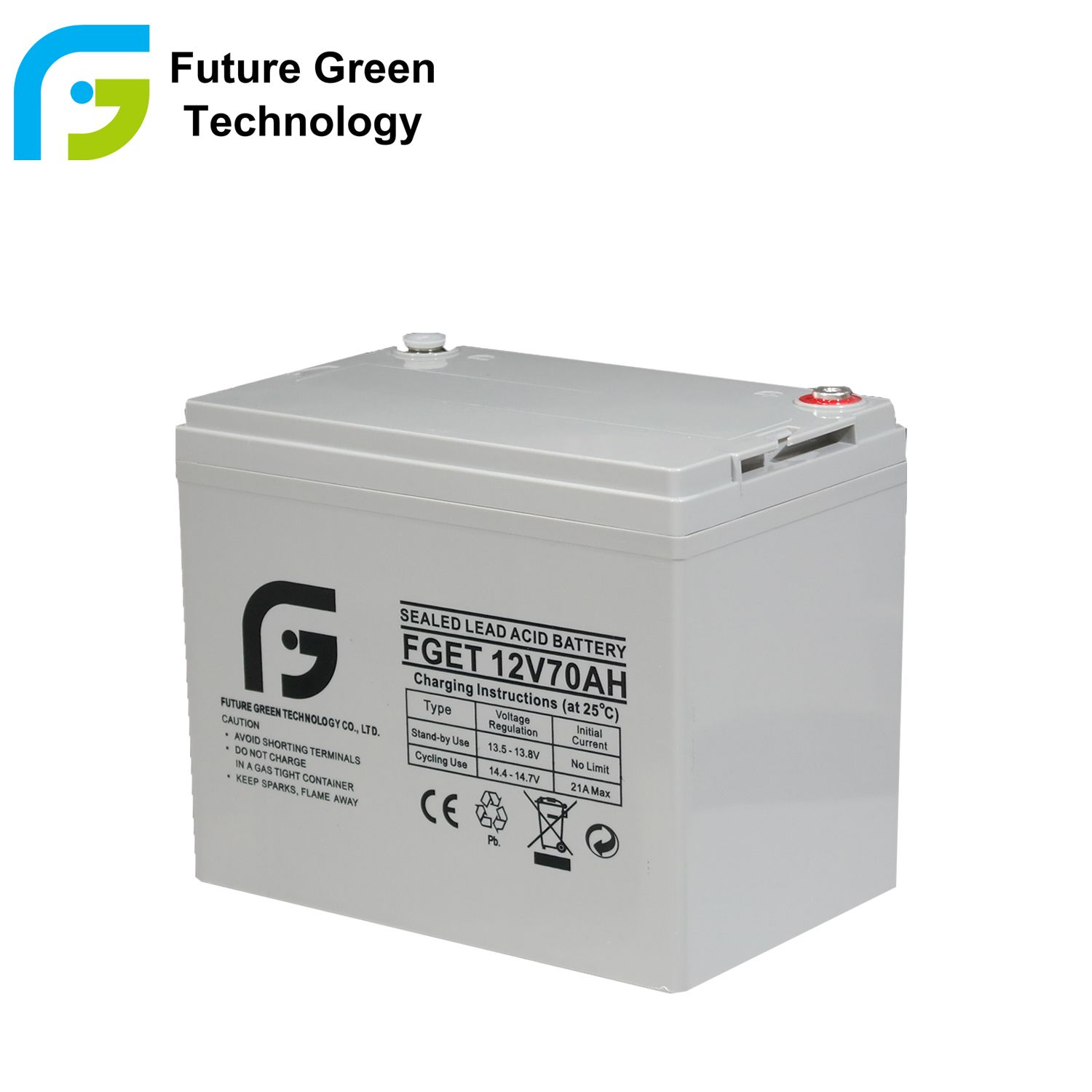

12V 75ah Deep Cycle Sealed Solar Power System Gel Battery
Gel battery description:
Gel solar battery accumulator shows some distinctive advantages over flooded battery or AGM battery, such as super thermal stability, high deep discharge capability, good recovery from deep discharge, even if the battery is left discharged for three days, it will recover to 100% of capacity.
With the above-mentioned advantages, the gel battery has long service life, specially suitable for motive power applications, such as golf trailer, folklift, etc. The deep discharge cycles increased 50% as compared with the AGM battery.
Characteristics- Minor self-discharge.
- Long service lift: The designed lift is over twelve years.
- Good deep charge cycle performance.
- Good over-discharging recovery performance.
- Widely working environment.
Battery Use and Maintenance:1) Please use constant-voltage charge.2) In floating charge, the voltage is 2.23 to 2.27 per unit cell.
3) In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
4) Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
5) Please do not use it near the heat source and open flame.
6) Please keep it at low temperature. Please change it while there is liquid leaking or damage.
| Gel battery series |
| Model | Voltage | Capacity
C20 | Dimension & Weight | Approx .weight | Terminal
Type |
| Length | Width | Height | Totl height |
| (V) | (h) | mm | mm | mm | mm | Kg |
| GE6V180Ah | 6 | 180 | 260 | 182 | 245 | 288 | 23.00 | F6 |
| GE6V210Ah | 6 | 200 | 260 | 182 | 247 | 289 | 30.00 | F6 |
| GE6V225Ah | 6 | 225 | 321 | 176 | 226 | 246 | 31.00 | F6 |
| GE8V210Ah | 8 | 210 | 260 | 182 | 295 | 336 | 36.00 | F6 |
| GE12V33Ah | 12 | 33 | 195 | 130 | 159 | 180 | 9.50 | F5 |
| GE12V40Ah | 12 | 40 | 197 | 165 | 175 | 182 | 13.00 | F5 |
| GE12V60Ah | 12 | 60 | 260 | 168 | 211 | 233 | 20.00 | F6 |
| GE12V70Ah | 12 | 70 | 260 | 168 | 211 | 233 | 21.50 | F6 |
| GE12V100Ah | 12 | 100 | 331 | 171 | 214 | 224 | 30.00 | F6 |
| GE12V120Ah | 12 | 120 | 407 | 174 | 225 | 238 | 33.50 | F6 |
| GE12V150Ah | 12 | 150 | 483 | 170 | 241 | 241 | 44.00 | F6 |
| GE12V200Ah | 12 | 200 | 522 | 240 | 219 | 244 | 57.00 | F6 |
| GE12V250Ah | 12 | 250 | 520 | 268 | 220 | 249 | 67.00 | F6 |
| GE12V55Ah-F | 12 | 55 | 277 | 106 | 222 | 222 | 16.50 | F6 |
| GE12V80Ah-F | 12 | 80 | 564 | 115 | 189 | 189 | 25.50 | F7 |
| GE12V100Ah-F | 12 | 100 | 395 | 110 | 285 | 285 | 30.00 | F9 |
| GE12V150Ah-F | 12 | 150 | 551 | 110 | 287 | 287 | 48.00 | F9 |
| GE12V180Ah-F | 12 | 180 | 546 | 125 | 317 | 323 | 53.00 | F9 |
| GE2V200Ah | 2 | 200 | 173 | 111 | 330 | 364 | 13.50 | F6 |
| GE2V300Ah | 2 | 300 | 171 | 151 | 330 | 364 | 20.00 | F6 |
| GE2V500Ah | 2 | 500 | 241 | 171 | 330 | 365 | 31.00 | F6 |
| GE2V600Ah | 2 | 600 | 302 | 175 | 330 | 367 | 37.00 | F6 |
| GE2V800Ah | 2 | 800 | 410 | 175 | 330 | 365 | 50.00 | F6 |
| GE2V1000Ah | 2 | 1000 | 475 | 175 | 330 | 367 | 60.00 | F6 |
| GE2V1500Ah | 2 | 1500 | 400 | 350 | 345 | 382 | 95.00 | F6 |
| GE2V2000Ah | 2 | 2000 | 490 | 350 | 350 | 382 | 120.00 | F6 |

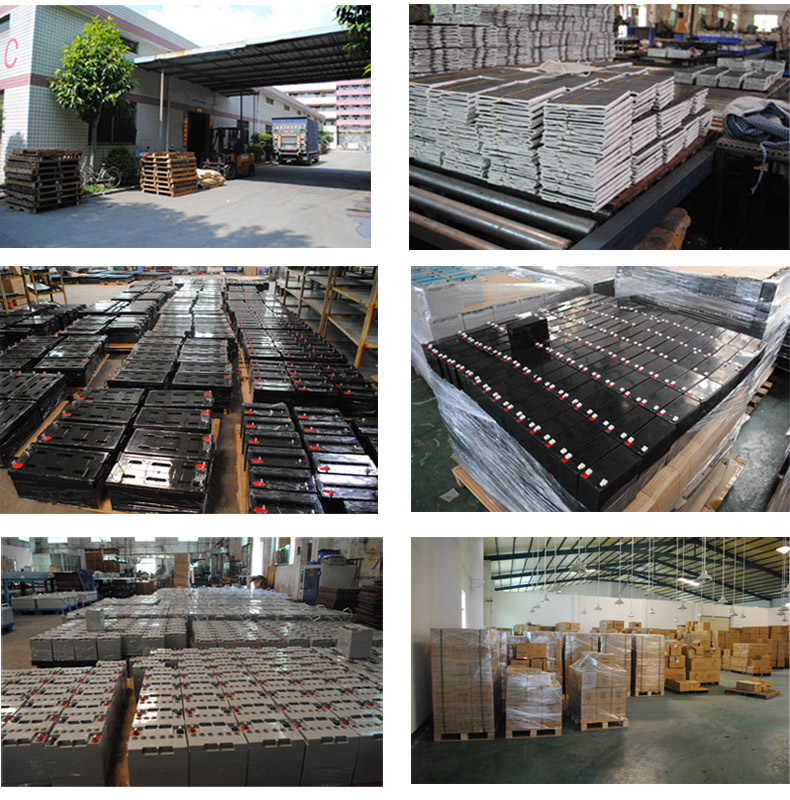

Factory Show:

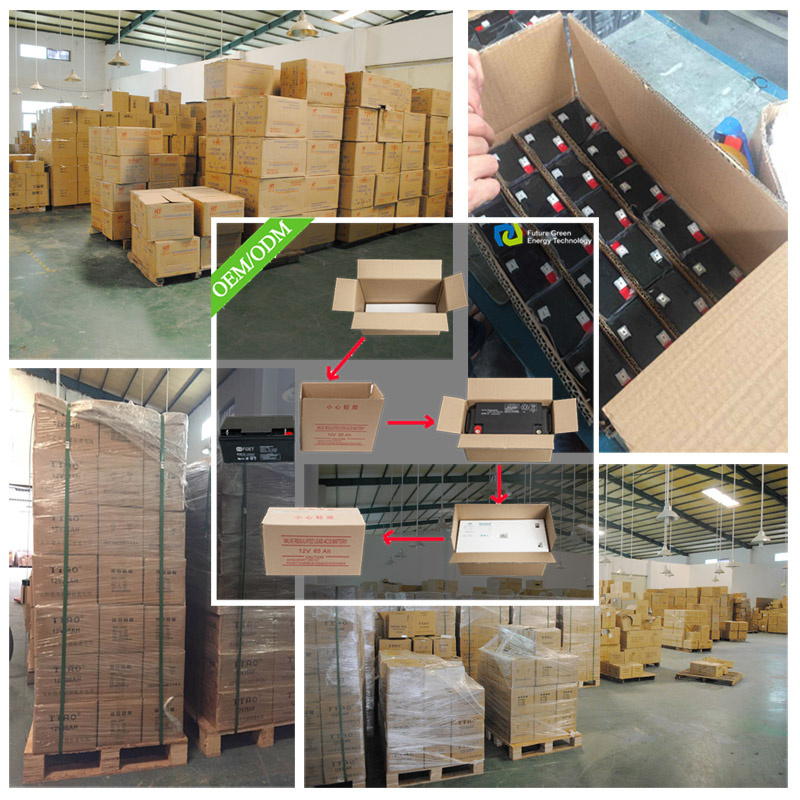

Packing details:
Our Services:
Samples and OEM, Warranty and After-Sale Service:
- Sample can be provided for quality testing
- OEM Welcomed
- Warranty:2 Year
- After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support
Our Qualification:
| Payment Terms | T/T | EXW | 30% T/T in advance, paid the balance before shipment |
| FOB |
| CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L |
| CIF |
| L/C | L/C amount above 50,000 usd, we can accept L/C at sight |
| West Union | Amount lower than 5000usd |
| Paypal |
| Delivery time | 15 working days after receiving payment for one container |
FAQ:Q1: How to choose a right battery?
A1:Tell us your demand, then our sales will recommend a suitable battery to you.
Q2: How about the delivery time?
A2: 7 days for sample; 15 days for bulk order.
Q3: What is the warranty of lead acid battery?
A3: 2 years warranty on FGET-Solar product.
Q4: How to solve the technical problem?
A4: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q5: How To Ask for support if products failure in warranty?
A5: 1. Email us about PI number, serial number, Product S/N number, show us more details such as: pictures, your testing report or video, if it is the quality problem of product itself, we will resend a new one in next order. 2. we will submit your case to our after sales department, and solve it in 24 hours.
Hello, friends. We are a company with two factory called Future Green Energy Technology based in Guangzhou China. FGET provides solar power system and kinds of batteries globally.
Future Green Energy Technology, is your personal home clean energy solutions provider. This company is a future-oriented Emerging company, is committed to provide clean energy for global world.
The first main product is automotive battery and sealed lead acid battery, which is mainly used for car, truck, taxi, bus, ship, solar, UPS, etc^
The Company has ventured into retail market segment and has nationwide presence through a network of branch offices and channel partners. The Company focuses on being a responsible corporate citizen through active participation in solar power projects and also working with electric vehicles manufacturers.
Commitment to quality, consistency, innovation and service is taking the Company through a steady growth in the competitive market. The Company is ISO certified.
