| Prod Model: |
FGET 12V7AH |
| Item Name: |
12V7ah Sealed Lead Acid Battery |
| Maintenance Type: |
Free |
| Size: |
151*65*94*100mm |
| Weight: |
2.05kg/PCS |
| Material: |
Fire Proof Case |
| Warranty: |
2 Years |
| Plate: |
Flat Plate |
| Terminal Type: |
Copper/Lead |
| Certificate: |
Ce, UL.ISO.PV |
| Cell: |
6 |
| Type: |
Lead-Acid Batteries |
| Usage: |
Lighting |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

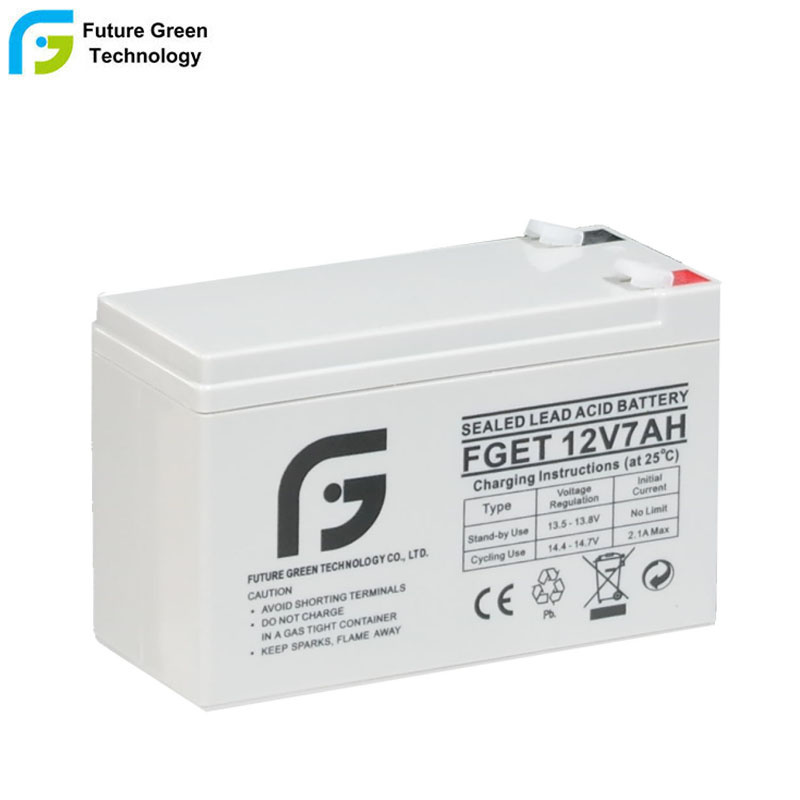

12V 7ah Sealed Lead Acid Battery for UPS Alarm Security SystemBattery Out Size
Battery Parameters
Capacity
25'C (77'C) | 20 hour rate(0.350A ) | 7.00AH |
| 10 hour rate(0.653A ) | 6.53AH |
| 1 hour rate(4.500A ) | 4.50 AH |
| Internal Resistance | Full charged Battery at 25 'C(77'F ) | 23 milliohm |
| Capacity affected by Temp | 40'C (104F) | 102% |
| 25'C (77'F) | 100% |
| 0'C (32'F) | 85% |
| (-15'C )5'F | 65% |
Self-Discharge
25'C (77'F) | Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
Charge
(Constant Voltage) | Initial Charging Current less than 2.1 A |
| Voltage 14.4-15.0V |
| Voltage 13.5-13.8V |
Features1. Long battery life, high capacity, Superior of recovery after discharge.
2. ABS material: increase the strength of battery container. (Flame-retardant ABS is optional)
3. High purity raw material: ensure low self discharge rate.
4. Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99% and freedom from
electrolyte maintenance or water adding.
5. Silver- coated copper terminals, brass insert terminals and lead terminals improve the electric conductivity.
6. Pb CaSn alloy for plate grids: less gassing, less self-discharging high quality.
7. Maintenance-Free Operation
8. Low Self-Discharge Applications- Solar and wind systems
- Cable TV
- Telecommunications
- Wheelchair
- UPS
| - Military Equipment
- Emergency lighting
- Power Plants
- Medical Devices
- Golf Cart
|
Battery Use and Maintenance1) Please use constant-voltage charge.2) In floating charge, the voltage is 2.23 to 2.27 per unit cell.
3) In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
4) Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
5) Please do not use it near the heat source and open flame.
6) Please keep it at low temperature. Please change it while there is liquid leaking or damage.
Factory information
Future Green Technology, is your personal home clean energy solutions provider. This company is a future-oriented Emerging company, is committed to provide clean energy for global world.
We manufacture and supply all kinds of SLA batteries (AGM, GEL, AGM-GEL, Pb-C), rechargeable battery and flooded battery used for motive (Electrical bicycle/Tricycle, EV, HEV, forklift, electrical tools/toys, etc.), renewable energy storage (solar, wind etc.), reserve (telecom, UPS, emergency lighting, security system etc.) and motorcycle. We can also supply electrical bicycles, tricycles, related accessories as well as technical support for new factory establishment. Our Services
Samples and OEM, Warranty and After-Sale Service
- Sample can be provided for quality testing
- OEM Welcomed
- Warranty: 2 Year
- After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support
Payment Terms| Payment Terms | T/T | EXW | 30% T/T in advance, paid the balance before shipment |
| FOB |
| CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L |
| CIF |
| L/C | L/C amount above 50,000 usd, we can accept L/C at sight |
| West Union | Amount lower than 5000usd |
| Paypal |
| Delivery time | 15 working days after receiving payment for one container |
FAQ* How to choose a right battery?
Tell us your demand, then our sales will recommend a suitable battery to you.
* How about the delivery time?
7 days for sample; 15 days for bulk order.
* What is the warranty of lead acid battery?
5 years warranty on FGET-Solar product.
* How to solve the technical problem?
24 hours after-service consultancy just for you and to make your problem to solve easily.
* How To Ask for support if products failure in warranty?
1. Email us about PI number, serial number,Product S/N number, show us more details such as: pictures, your testing report or video, if it is the quality problem of product itself, we will resend a new one in next order.
2. we will submit your case to our after sales department, and solve it in 24 hours. Lead Acid Battery Series| Model | Voltage | Capacity
(20h) | Size
(mm) | Plate
Number | Weight
(kg) |
| SJ6V4.5Ah | 6V | 4.5Ah | 70*47*101*107 | 18 | 0.71 |
| SJ6V7Ah | 6V | 7Ah | 151*34*94*100 | 24 | 1 |
| SJ6V10Ah | 6V | 10Ah | 151*50*94*100 | 36 | 1.5 |
| SJ12V1.3Ah | 12V | 1.3Ah | 97*43*51*57 | 30 | 0.56 |
| SJ12V4Ah | 12V | 4Ah | 90*70*101*107 | 36 | 1.4 |
| SJ12V7Ah | 12V | 7Ah | 151*65*94*100 | 48 | 2 |
| SJ12V9Ah | 12V | 9Ah | 151*65*94*100 | 54 | 2.6 |
| SJ12V12Ah | 12V | 12Ah | 151*98*95*101 | 78 | 3.5 |
| SJ12V17Ah | 12V | 17Ah | 181*77*167*167 | 48 | 4.9 |
| SJ12V24Ah | 12V | 24Ah | 177*165*126*126 | 66 | 7.3 |
| SJ12V30Ah | 12V | 30Ah | 177*165*126*126 | 78 | 8.8 |
| SM12V33Ah | 12V | 33Ah | 196*131*155*180 | 42 | 9.2 |
| SM12V36Ah | 12V | 36Ah | 196*131*155*180 | 42 | 10.6 |
| SM12V38Ah | 12V | 38Ah | 196*165*175*182 | 36 | 11.4 |
| SM12V42Ah | 12V | 42Ah | 196*165*175 | 42 | 12.8 |
| SM12V45Ah | 12V | 45Ah | 196*165*175 | 42 | 13.2 |
| SM12V55Ah | 12V | 55Ah | 229*138*208*227 | 48 | 15 |
| SM12V65Ah | 12V | 65Ah | 350*166*175 | 66 | 19 |
| SM12V70Ah | 12V | 70Ah | 350*166*175 | 72 | 21 |
| SM12V80Ah | 12V | 80Ah | 350*166*175 | 78 | 22 |
| SM12V100Ah | 12V | 100Ah | 307*168*208*227 | 66 | 28 |
| SM12V120Ah | 12V | 120Ah | 406*174*208*233 | 90 | 33 |
| SM12V120Ah | 12V | 120Ah | 406*174*222*238 | 78 | 34 |
| SM12V134Ah | 12V | 134Ah | 340.5*173*280(285) | 66 | 36 |
| SM12V145Ah | 12V | 145Ah | 340.5*173*280(285) | 78 | 40 |
| SM12V150Ah | 12V | 150Ah | 483*170*241*241 | 114 | 43 |
| SM12V180Ah | 12V | 180Ah | 532*207*215*240 | 126 | 52 |
| SM12V200Ah | 12V | 200Ah | 522*240*219*244 | 138 | 59 |
| SM12V210Ah | 12V | 210Ah | 522*240*219*228 | 150 | 61 |
| SM12V260Ah | 12V | 260Ah | 522*240*219*228 | 162 | 69 |
| Front Terminal Battery |
| SM12V55Ah-F | 12V | 55Ah-F | 277*106*222.5*222.5 | 66 | 16 |
| SM12V75Ah-F | 12V | 75Ah-F | 562*114*188*188 | 78 | 18 |
| SM12V100Ah-F | 12V | 100Ah-F | 394*109*286*286 | 66 | 33 |
| SM12V105Ah-F | 12V | 105Ah-F | 507*109*223*238 | 66 | 35 |
| SM12V150Ah-F | 12V | 150Ah-F | 551*109*288*288 | 66 | 46 |
| SM12V150Ah-F | 12V | 150Ah-F | 551*105*288*288 | 66 | 45 |
| SM12V180Ah-F | 12V | 180Ah-F | 560*125*316*316 | 78 | 52 |
