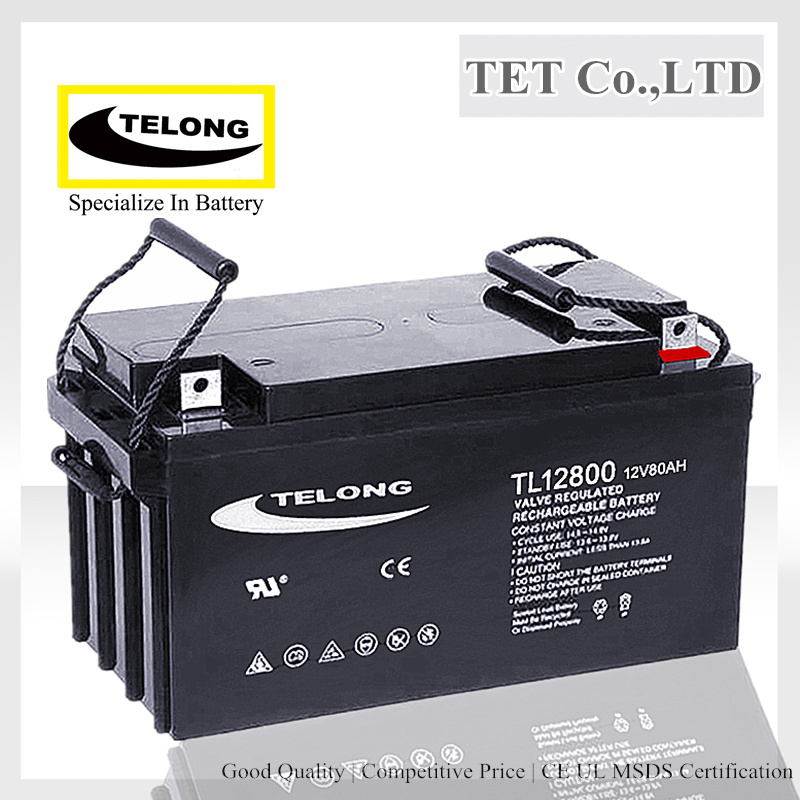

12V 80ah Deep Cycle Solar Power Battery for Solar System

12V 80ah Deep Cycle Solar Power Battery for Solar System
Price: US $ 78-80/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 500/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: TL12800
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimenstions: 348(L)*168(W)*178(H)Mm
Weight: 23.0kg
Color: Black/ Grey or Other
Container Material: ABS
Charge (Cycle Use): 14.5~15.0V
Charge (Standby Use): 13.5~13.8V
Designed Life: 5 Years
Warranty: 2 Years
Type: Lead-Acid Batteries
Usage: Solar /Alarm System Telecommunication Equipment
Rechargeable: Chargeable
Discharge Rate: High Discharge Rate
Shape: Square Battery
Nominal Voltage: 12V

Product Description

TELONG TL12800 (12V 80ah) Deep Cycle Solar Power Battery. It has obtained the CE and RoHS authentication of the European Union, UL recognition the USA. The battery is widely used for solar system, alarm system, emergency lighting system, solar power station and so on.



SPECIFICATION of 12V 80ah Deep Cycle Solar Power Battery

Nominal Voltage12V
Rated capacity (10 hour rate)80Ah
Dimension                 Length348mm (13.6 inches)
Width168mm (6.6inches)
Height                        178mm (6.9inches)
Weight Approx23Kg(50.7Ibs)



FEATURE of 12V 80ah UPS Battery

1).Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99%and free-
    dom from electrolyte maintenance or water adding.
2).Not restricted for air transport-complies
3).UL-recognized component.
4).Valve Regulated Construction .Can be mounted in any orientation.
5).Computer designed lead, calcium tin alloy grid for high power density.
6).Long service life, float or cyclic applications. Maintenance-free operation.
7).Low self discharge. Long Life Design
8).Wide Operation Temperature Range
9).Available in flame retardant ABS material for the battery case



CHARACTERISTICS of 12V 80ah Lead Acid Battery

Capacity
25'C (77'C)
10 hour rate(8.0A )80AH
5 hour rate(12.8A )64AH
3 hour rate(18.7A )56AH
1 hour rate(52A  )52AH
Internal ResistanceFull charged Battery at 25  'C(77'F  )4.9 milli-ohm
Capacity affected by Temp40'C (104F)102%
25'C (77'F)100%
0'C (32'F)85%
(-15'C )5'F65%
Self-Discharge Capacity after 3 month storage91%
25'C (77'F)                                         Capacity after 6 month storage82%

Capacity after 12 month storage64%
TerminalF5
Charge Cycle  Initial Charging Current less than 32A
(Constant Voltage)Voltage 14.5-15.0V

FloatVoltage13.5-13.8 V



APPLICATIONS of 12V 80ah Storage Lead Acid Battery

Railway signal /Medical Equipment
Alarm system /Emergency Lighting System
Solar/ wind system /Control equipments
Telecommunication /Communication systems
Electric Power Supply /DC power Supply
Other standby or primary power supplies.



OTHER INFORMATION of 12V 80ah Maintenance Free Lead Acid Battery

1Logo: silk printing
2Packaging: in Carton Box Packing in Wooden Pallet
3Payment terms: T/T(with 30% deposit); L/C at sight
4Date of delivery: 15-25days after receipt of the deposit
5Loading port: Shenzhen (China)
6Sample charge: FREE



Shenzhen Telong Energy Technology Co., Ltd was founded in 2005, Specialized in researching, developing, producing and sales of lead acid battery, lithium battery and Gel battery.

Telong is a leading battery producer in the Chinese market as a deep cycle battery supplier for electric bicycles, distributed primarily under the Telong brand. With over ten years of experience and extensive technical expertise in the lead-acid battery industry, Telong's dedication to research and development is evident in increasingly widespread recognition of Telong goods offering consistent quality in high capacity, high energy density, deep discharge, more cycles with sustained discharge time, and more operational stability.

Telong has mainly produce the following series - CR\ER\PL\DZM\TL\TEL\GEL\TLD\TLF\OPZV\OPZS including 500 kinds of products. These products are widely used by many different industries, such as telecommunication, power system, radio and television system, railway, solar, UPS, electric vehicles, cars, golf cars, forklifts, emergency lights, security, alarm, gardening tool, baby carrier etc. Its worldwide sales network already covers more than 100 countries and regions, and has a good cooperation partnership with several excellent operators.

In an endless pursuit of perfection, Telong continues to blaze new trails in quality battery production. For quality control, Telong established professional Quality Management Center and successfully got the certificates of ISO9001, TS16949 quality management system and ISO14001 environment management system and also has passed the audit of OHSAS18001. The products has been authorized as 'Good quality products and Inspection-free in China' by national quality inspection department. Telong Products have also obtained the CE and RoHS authentication of the European Union, UL recognition the USA, Our reputation is built on the promise that ethical behavior and fair business practices will result in a satisfied and growing customer base. Telong prides itself by delivering its promises in a timely and efficient manner. We listen attentively to our customers, and are constantly reviewing our business practices and procedures in order to make changes that will benefit our customers.
