12V 80ah UPS Power Battery Gel Battery
| Price: |
US $ 68-72/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
6-GFMJ-80 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
329*172*214*236 mm |
| Weight: |
25.3kgs |
| Maintenence Free: |
Yes |
| Terminal Type: |
Lead |
| Warranty: |
3 Years |
| Design Life: |
8 Years |
| Battery Color: |
Italia Grey |
| Type: |
Lead-Acid Batteries |
| Usage: |
Lighting |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

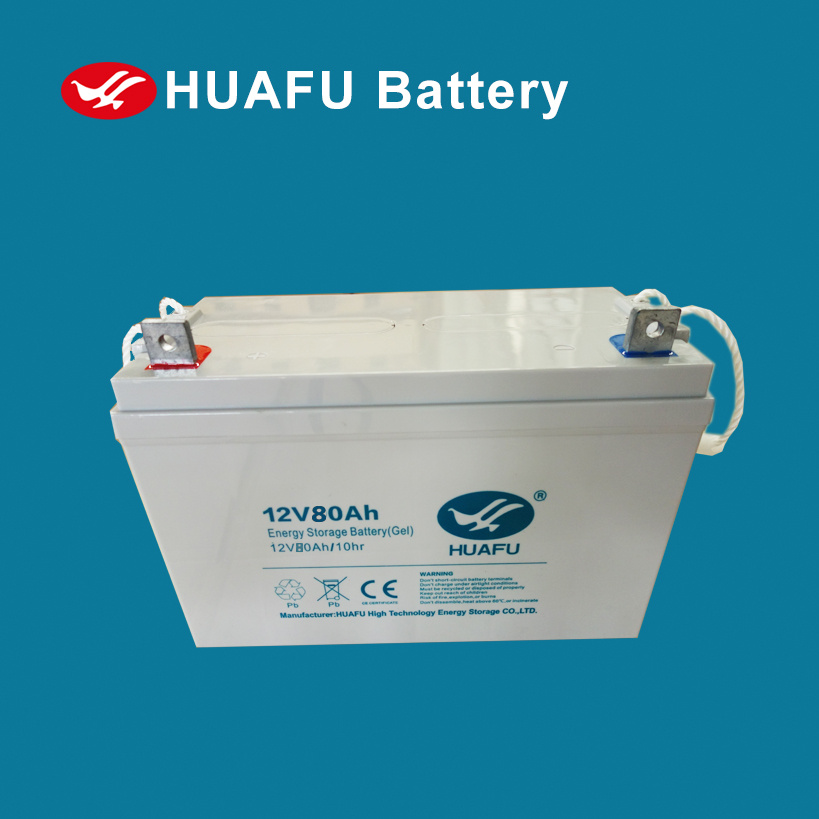

12V 80Ah UPS Power Battery Gel BatteryThe battery consists mainly of positive plates, negative plates, separators, electrolyte, valves, a container and a cover.
Battery Properties: Sealed Battery / Maintenance Free Battery / Rechargeable Battery
Quality system & Certifications: ISO9001,ISO14001,OHSAS18001-2007, CE, UL, IEC, ROHS, SGS
Products Standard: GB/T 19638.2-2005 YD/T 1360-2005 IEC 60896-21/22:2004 Performance Specifications
| Rated Voltage | 12V |
| Rated Capacity | 80 Ah(10 hr, 1.80 V/cell, 25 ºC) |
| Approximate Weight (Kg,±3%) | 25.3 kg |
| Terminal | Lead terminal(M8) |
| Maximum Charge Current | 20 A |
| Ambient Temperature | -35~60 ºC |
| Dimension (L*W*H*TH,±3% ) | 329*172*214*236 mm |
| Case | ABS |
| Application | Communication/communication station, power station, power transmission and transformation system, computer system protection, emergency power supply, UPS uninterruptible power supply systems, wireless stations and standby power automatic control |
3 Years Warranty! Any Battery With Quality Problem Will be Changed! Huafu Sealed Maintenance Free Battery Features:
1). AGM (Absorbing Glass Mat) technology of which the electrolyte is absorbed.
2). Maintenance-free operation - no addition of water to the electrolyte is required.
3). Sealed Battery with Valve Regulated Construction .Can be mounted in any orientation.
4). Wide range of operating temperatures with temperature compensated charging.
5). Computer designed lead, calcium tin alloy grid for high power density.
6). Extended service life due to low self-discharge levels.
7). Available in flame retardant ABS material for the battery case.
Comprehensive performance
1. Patents structure: Have "easy connection storage battery" patent structure, can buried underground to installation, to avoid pole corroded.
2. Excellent recovery performance: Use a special patented alloy and lead paste formula, have a strong capacity of recovery performance after deep discharge.
3. Strong charge acceptance: Used import low resistance materials and advanced technology, current become smaller at end of the charge and has a strong charge accept ability.
4. Wide temperature range: -30 degrees Celsius- 45 degrees Celsius
5. Long life: Using gel electrolyte, no acid layer and has long life.
6. Environment friendly: Not include Cadmium metal which is pollution to environment. With no leaking and ensured the battery's environmental protection and safety.
Package
| 20FT=18 Wooden Boxes = 810 Pcs |
| Packing in Carton | Packing in Wooden Box |
| Pcs/Ctn | Ctn Size | Ctn/Box | Box Size |
| 1 | 342*185*273mm | 45 | 1075*995*990mm |
FAQ
1). Price term: FOB/C&F
2). Packing: in Carton Box Packing in Wooden case
3). Minimum quanity: 3 Pcs
4). Delivery Time:10-15 days after Receiving extra deposit payment
5).Web: www.huafubattery.com
6). Contact: Mob +86 150-6287-5651
7). Factory video: https://youtu.be/dAExGmhU4PI
| Model | 12V 80Ah |
| Max.Discharge Current | 30I10A (3min) |
| Self-Discharge(25°C) | <3%/month |
| Warranty | 3 years |
| Designed life | 8 years |
| Using Temperature | Discharge: -25°C~50°C |
| Charge: -20°C~45°C |
| Storage: -30°C~40°C |
| Recommended Using Temperature | 15°C~30°C |
| Charge Voltage (25°C) | Float Charge: 13.5V-13.8V |
| Average Charge: 14.4V-14.7V |
| Max.Charge Current | ≤0.25C10 |
| Charge Mode(25°C) | Float Charge:13.65±0.15V/Cell |
| Temperature Compensation Coefficient :±18 mV/Cell°C |
| Cycle Charge:14.7±0.3V/Cell |
| Temperature Compensation Coefficient: ±30 mV/Cell°C |
| Cover Material | ABS Engineering Plastic |
| Cycle life | 105 % @ 40°C |
| 85 % @ 0°C |
| 60 % @ -20°C |
DOD cycle
| 100% DOD 520 times |
| 50% DOD 1350 times |
| 30% DOD 2188 times |
Huafu High Technology Energy Storage Co., Ltd is a leader in battery industry for energy storage in China, manufacturer ranks NO. 1 in sales of GEL battery in Chinses market, with more than 20 years experience in producing and exporting environmental friendly Rechargeable Valve Regulated Lead Acid (VRLA) Battery, AGM Sealed Lead Acid (SLA) Batteries, Deep cycle Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, Specialty batteries for plateaus, OPzV Battery, OPzS Batteries, Telecom Batteries, Lead Carbon, Lithium batteries.
Established in 1990, located in Gaoyou Industrical Park of 180000 square meters in Jiangsu, China. Today, Huafu has nearly 200 full-time R&D personnel, nearly 100 part-time R&D personnel, has built a national post-doctoral workstaions, technology research institution for energy storage materials. With International advanced automatic equipment and excellent producing process, Huafu produces an annual capacity of approximately 4, 000, 000kVAh.
Lead battery & Lithium Battery are our major prodcuts: Classify our lead battery into Energy Storage Battery Series, Back-Up Battery, EV Battery. The Energy Storage Battery Series includes 2V and 12V AMG lead acid battery, AGM GEL Battery, Pure Gel Battery, Solar Deep Cycle battery, Lead-Carbon battery, Heat-tolerant battery, Tubular OPZV battery, Tubular OPZS battery. The Back-up battery series includes 2V and 12V VRLA Battery, Telecom Front terminal battery. Our EV battery includes 6V, 8V, 12V battery for electric vehicle, electric forklift, etc. Lithium battery includes LiFePO4, Ternary lithium power battery.
In the passed 20 years, HUAFU staffs has been insisted on gaining the believe of customers by our quality. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognition, like UK's IEC60896.21/22. IEC61427, CE authentication of the European Union, UL recognition of the USA, Soncap certification for Nigeria and Golden Sunflower. RoHS, SGS, etc.
HUAFU ranks NO. 1 in sales of GEL battery in Chinese market. We has been cooperating with China Mobile Limited & Unicom Limited, ZTE Corporation, China Tower, Huawei Technologies, Emerson. Export from 10 years ago, near to Shanghai Port, Our long-term business ship has been built with Philips. Our products has also sold to USA, Brazil, Russia, Iran, Korea, Thailand, South Africa, Nigeria, Italy, Greece, Germany, Spain, etc.
Best Quality, Good Service, In time Support, Competitive Price. Choose Us!
