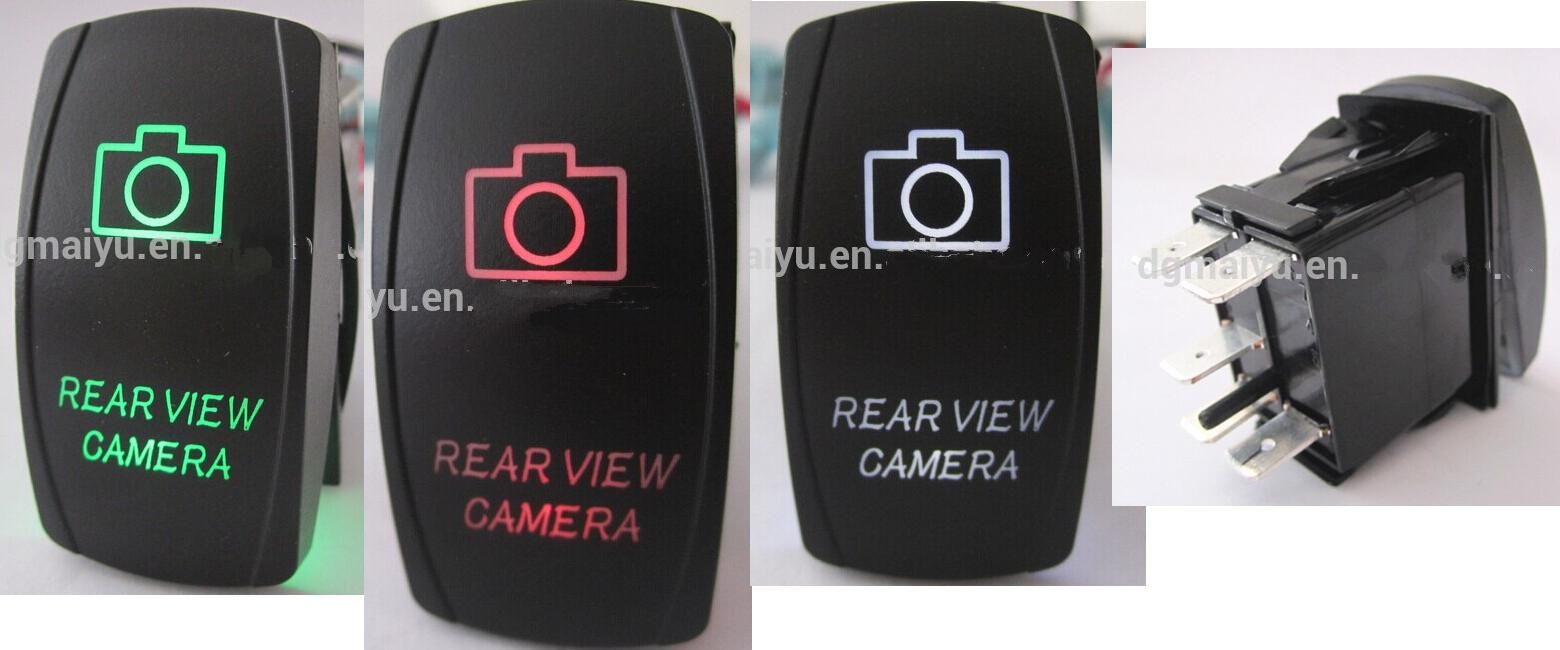

12V Auto Boat Switch/Daul LED Light Truck Trailer Switch

Prod Model:	boat switch-209
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Maiyu
Max. Current:	20A
Rating Current:	12V-24V
Rating Ampere:	20A
Pin:	5 Pins
Material:	ABS Plastic Panel
Atmospheric Humidity:	Max.85%
Mechanical Life:	500000 Times
Approval:	RoHS, CE
LED Color:	Blue, Red, Amber, White, Green, Gray
Usage:	Vehicle
Standard:	Standard
Lamp:	With Lamp
Certification:	CE
Condition:	New
Color:	Optional

Product Description

IP68 Dual LED dual color ON/OFF switch with Laser Etched symbols

Packaging & Delivery

Packaging Details:	50pcs in a blister box, 500 pcs in a normal carton
Delivery Detail:	depend on your order quantity,normally it will takes 5-7 days



Details and the Specifications:

1.Abs plastic panel
2.waterproof boat switch
3.500000 Mechanical Life
4. Process can be screen printing and laser carving
5. It has a face surface size of 0.90'' x 1.92'' and uses a standard din size mounting hole. Cutout Dimensions are 0.83'' x 1.45''.

 These high quality 12 volt Rocker switch is a single throw ON - OFF switch designed to operate your 12 volt accessories. They have a face surface size of 2'' (50mm) x 1'' (25mm) and uses a standard din size mounting hole of 1.41'' (36mm) x .86'' (22mm) this is the standard size of most switch holes in modern vehicles, however it is best to check your particular hole size if unsure.

Single Pole Single Throw ON-OFF switch.
12VDC 20Amps, 24VDC 10Amps 125VAC 16Amps, 250V DA10Amps.
Black hard surface rocker.
Two LEDs in the switch.
Upper LED is ON only when the switch is turned ON.
Lower LED is independent.
Both LEDs have separate grounds.
Same size as the Carling and ARB switches.
Rated 16A 12V.
No rear barriers between terminals.
