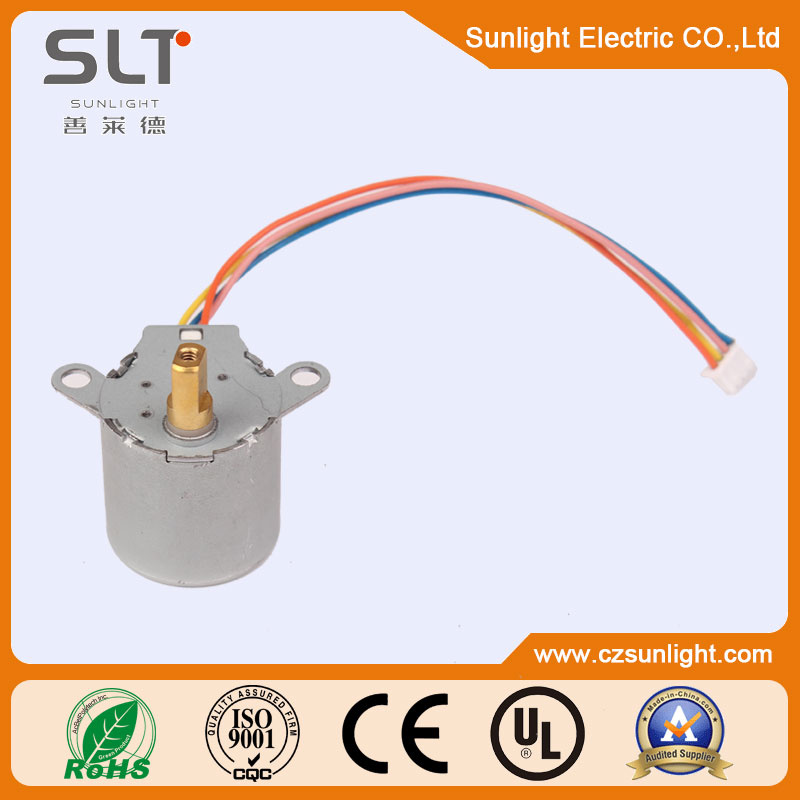

12V DC 4 Phase Mini Stepper Motor

12V DC 4 Phase Mini Stepper Motor
Price: US $ 10-15/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal
Prod Model: SLT35SM412
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angel Accuracy: +/-10%
Resistance Accuracy: +/-10%
Inductance Accuracy: +/-20%
Temperature Rise: 60° C Max
Ambient Temperature: -20c-+50c
Insulation Resistance: 100mmin.500 VDC;
Dielectric Strength: 600V AC for One Minute
Shaft Radial Play: 0.1mmmax (300g-Load)
Shaft Axial Play: 0.55mmmax (300g-Load)
Number Of Stator: Three-Phase
Excitation Mode: HB-Hybrid
Operate Mode: The Three Single Phase
Type: Magnetic-Electric
Brand: Slt

Product Description

Product Description
Model:
SLT35SM412
Rated Voltage:12VDC
Current:0.3A
Inductance:8mH
Holding Torque:320 g-cm
Leads:NO6
Weight:0.06kg
Length:13.5mm




The specification of 12V DC 4 Phase mini stepper motor

Model SLT35SM412
Rated VoltageVDC12
Phase No.phase4
ResistanceΩ20
Step AngelDEG3.75/12
Rating Ratio 1:64
Starting Frequencypps≥500
Leads(100P.P.S)mN.m≥88.2
Detent TorquemN.m≥49

Application of 12V DC 4 Phase mini stepper motor

a.Car (Fan,View mirror,wiper blade,car seat adjustment and so on.)
b.Home Appliance ( Electric cooker, Electric mop and other products.)Medical
equipment and beauty products.
c.Office products (such as printer, scanner......)
d.Electric tools and garden tools.


Company Information



Packaging & Shipping
1,Inner packing(Waterproof plastic bag packing)+Outer packing(Carton packing)
2,Export wooden box packaging for products.
3,Other package as you required



Contact

Contact Person: Ariana Wang
Tel.: 86-519-83825998
Fax.: 86-519-83823899
Mobile: 86-13407564218




Website: www.czsunlight.com or www.sunlightmotor.com



Changzhou Sunlight Motor is the subsidiary company of the Jiangsu Woersen Electronics Technology Co., Ltd. It also contains Wenwei tube, Rongda Electronics, Woersen motor.

There are almost two hundred people in this group, including twenty technical engineers, eight R&D engineers. Annual value of production is about 0.16 billion.

The main products are DC motor, brushless DC motor, linear actuator and DC fan.

At present, our products have been exported to the United States, Germany, Britain, Russia, Japan, South Korea and so on. And we have received the high praise from our customers.

Currently, our company has passed ISO9000 and TS16949 certifications. The factory also has been audited by the authority SGS.

We welcome all the global companies to visit our factory and negotiate with us!

Sunlight is a young and dynamic team. Our slogan is " Where there is power supply, there is Sunlight"

We can not only meet our clients` mass production order, but also be flexible to provide the small quantity order for our clients too.

Meanwhile, the professional OEM services could be provided by us according to the customers'requests. The main brushless DC motor's series are: 42BLDC, 57BLDC, 86BLDC 110BLDC motor and so on

The main brush DC motor's series are: 130DC, 365DC, 370DC, 477DC motor and so on;

The main linear actuator's series are: ST01, PT01, YT01 and so on;

The main fan's series are: 16inch, 12inch, and so on

So that, If you give us a chance, Sunlight Motor will not let you disappoint.
