| Prod Model: |
92L ---198L |
| Item: |
New Product 92L to 198L Solar Freezer |
| Model No: |
92L to 198L |
| Input Voltage: |
DC 12V/24V Auto Recognition |
| Carton Size(mm) (L*W*H): |
504*534*1303* |
| Application: |
Remote Homes;Boats and Marine |
| N.W./G.W.(Kg): |
32/35 |
| Power Consumption: |
65 |
| Capacity: |
60-200L |
| Door: |
Double Doors |
| Installation: |
Free-Standing |
| Type: |
Side-by-Side |
| Power Source: |
Solar |
| Temperature Type: |
Double-Temperature |
| Defrost Type: |
Manual Defrost |
| Climate Type: |
ST |
| Certification: |
RoHS |
| Material: |
Pre-Coated Steel Plate |
Product Description
**********************************************************************
COMMERCIAL ENERGY GROUP LIMITED is a an energy-saving technology pioneer company, engaged in develop and apply solar freezer refrigerator.
In response the call of government concerning on energy-saving & emissions reduction, we majorly focus on the development of solar power system. Based on radical innovatory design concept and high-tech application, make fully use of the green, clean energy to achieve zero power consumption, zero emissions, zero pollution.
Guided by the principle of "advanced technology,exquisite product and competent manufacturing",the company is proceeding with the mission of energy saving and green planet building based on the spirit of "credit,innovation,hard working and social responsibility"
********************************************************************************************************************************
Product instruction

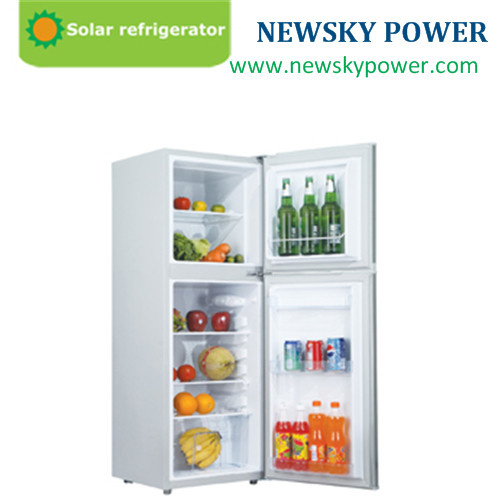

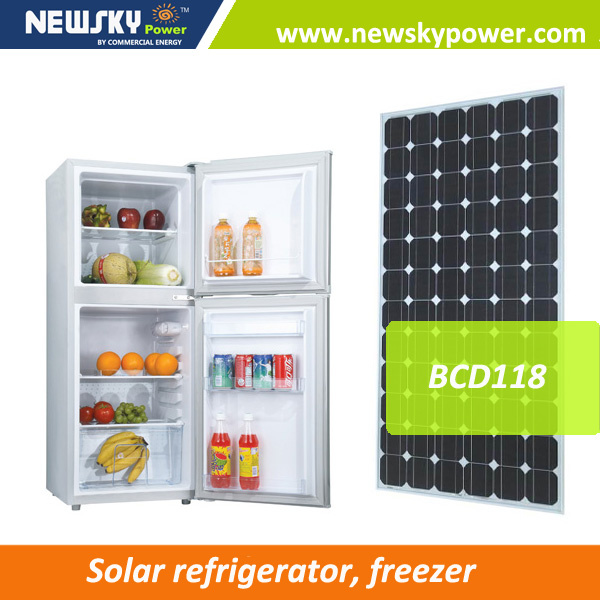

Solar refrigerator fridge
Fature
- High quality DC compressor
- DC12V/24V automatic recognition
- CFC-free refrigerant (R-134a)
- Low power consumption
- Battery over discharge protection
- AC/DC operated
- 0ºC-10ºC (32ºF-50ºF) for refrigerator compartment
- High temperature resistance and energy saving design
- Max -18ºC (-0.4ºF) for freezer compartment at 30ºC (86ºF) Ambient temperature
Application- Remote Homes
- Remote Stores
- Churches & Schools
- Micro-enterprises
- Cabins
- Boats and Marine
- Disaster Preparedness
- Beverage Vending
- Medical Clinics
- Markets
- Traveling Vendors
| Model | BCD 92 | BCD 118 | BCD 142 | BCD 158 | BCD 176 | BCD198 |
| Power Consumption | 55W | 65W | 65W | 65W | 65W | 72W |
| Input Voltage | DC 12V/24V |
| Insulation thickness | 60mm |
| Work Temperature | <40ºC |
| Capacity | Fridge | 82L | 71L (Bottom) | 95L (Bottom) | 100L (Upper) | 100L (Upper) | 128L (Upper) |
| Freezer | 10L | 47L (Upper) | 47L (Upper) | 58L (Bottom) | 76L (Bottom) | 70L (Bottom) |
| Product Size (mm) | 470 × 495× 815 | 470× 495 × 1165 | 470× 495× 1265 | 500 × 550 × 1370 | 500× 550× 1450 | 500× 550× 1580 |
| Carton Size (mm) | 504× 534 × 854 | 504× 534× 1203 | 504 × 534 × 1303 | 556 × 605× 1427 | 556× 605× 1504 | 556× 605× 1680 |
| N.W./G.W.(KG) | 23/26 | 30/33 | 32/35 | 41/44 | 43/47 | 44/49 |
| Loading Quantity | 114PCS/20GP, 276PCS/40HQ. | 64PCS/20GP, 184PCS/40HQ. | 63PCS/20GP, 184PCS/40HQ. | 52PCS/20GP,
140PCS/40HQ | 52PCS/20GP,
136PCS/40HQ | 46PCS/20GP,
112PCS/40HQ |
2016 News design Solar freezer sing & dual Temp
*The first one manufacture of DC solar refrigerator & freezer in China Since 1999, not with AC power freezer, more professional in the solar industry
*Senior engineer team
1. Frequency conversion DC compressor, motor rotating speed adjustable automatically according ambient 2. temperature. Better cooling and energy saving effect.
3. Pre-coated steel plate with film protection, not Powder spraying steel plate, Color is not easy oxidation discoloration.
4. Ventilation fan makes refrigerator inner temperature more uniform.
5. Previously placed an extra temperature probe in freezer body for double insurance.
6. LED light makes more convenient at night.
7. Anti-out DC socket.
8. LCD digital control panel with temperature setting button. Inner temperature and battery voltage can be displayed.
9. MAX/ECO mode for choice.
10. 110mm thickness, better insulation effect, more energy saving.
11. Independent condenser with high performance fan.
12. Double ball bearing compressor fan, low noise.
12. 50% energy saving compare with old model.
*******************************************************************************************
Why us?

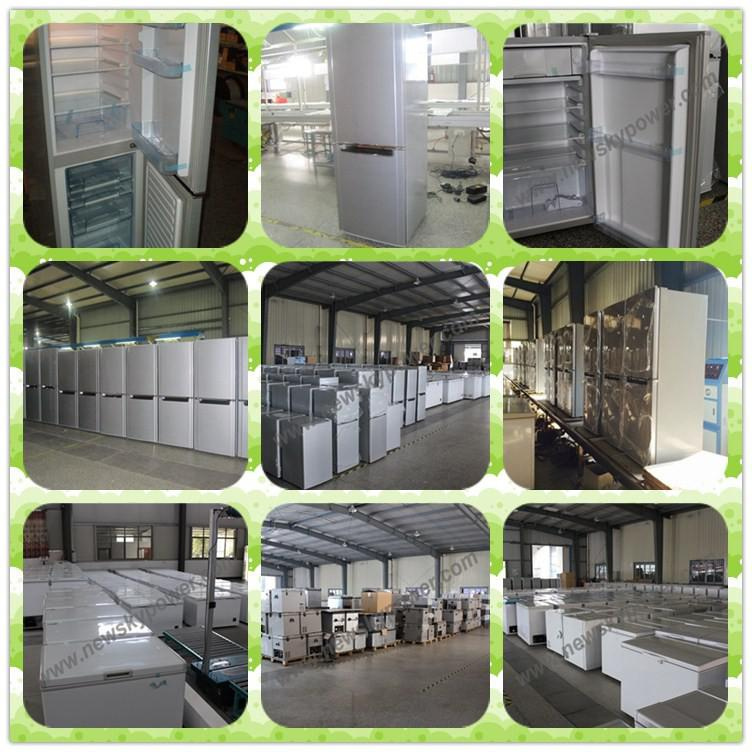

1. Advanced production equipment
Our company input a big investment into production equipments and moulds, and we produce the solar refrigerator freezer body by ourselves, not purchase from other AC power freezer factory. So that we could design and produce the real solar powered refrigerator freezer adapt to variety area environment.
We are the first one manufacture of solar refrigerator freezer in China Since 1999. Since now we are the largest scale solar refrigerator freezer factory in China.
The product was continuously updated and improved according to feedback from different counties customers , all the products have passed the strict testing, the performance is quite reliable.
2. Assembling line
5 steps assembling lines, assembling ability reach approximately 5000units one month. We focus on DC solar refrigerator freezer only, not with AC power freezer.
We are more professional in the solar industry, even some famous brand solar freezer companies talk with us for OEM cooperation.
3.Strict testing
Quality Control personnel are all experts in their respective product assignments, they check the quality at every stage of production strictly from the incoming raw materials to the finished product.
All the finished products are already through strictly testing before packing. We bring in a variety of testing equipments to make sure each unit 100% qualified.
4. Packing workshop
We build larger packing warehouse to meet more purchasing orders in 2015. Our products exporting data have reached to 50% exporting shares of DC freezer in china.
***********************************************************************
