| Prod Model: |
DC Stepper Motor GM25-25BY |
| Product Name: |
DC Stepper Motor GM25-25BY |
| Life Expectency: |
500hours |
| Rear Shaft Extensions: |
customized |
| Efficiency: |
80%-90% |
| Reduction Ratio: |
3 -1000 |
| Directions: |
CW/CCW |
| Axial Play: |
0.05-0.5mm |
| Bearing At Output: |
Sleeve Bearing |
| Housing: |
Zinc Alloy |
| Main Gear: |
Steel Hardened |
| Number Of Stator: |
Four-Phase |
| Excitation Mode: |
PM-Permanent Magnet |
| Operate Mode: |
25by Stepping Motor |
| Type: |
Gear Motor |
| Certification: |
RoHS,CE |
| Brand: |
TT Motor |
Product Description

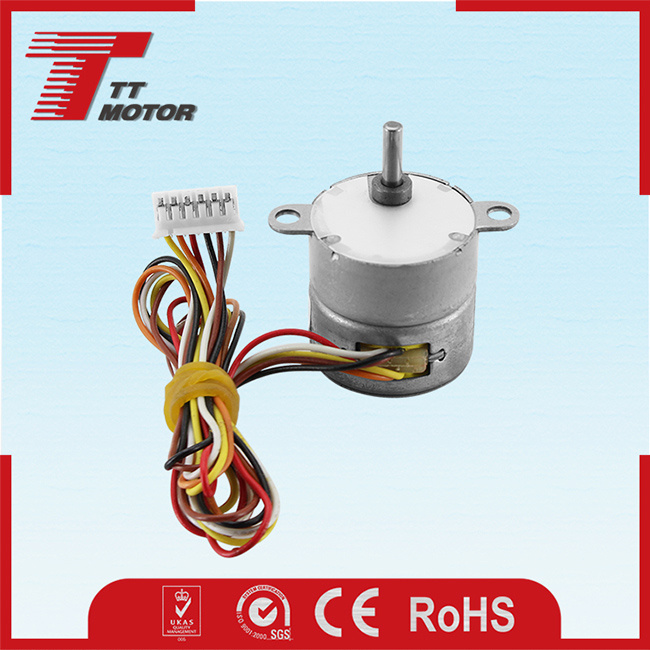

12v electric gearbox 25mm stepper motor for Intelligent robot
Gear motor Main Features1.25mm gearbox plus 25by stepping motor
2.Small size dc gear motor with low speed and big torque
3.25mm gear motor provide 0.1Nm torque and more reliable
4.Suitable to small diameter, low noise and big torque application
5.Reduction ratio:10
,30
,60
,75
,100
| model no. | Rated voltage | No.of Phase | Step Angle | Gear Ratio | Resistance | Holding Torque | current | Pull in Rate |
| VDC | | | | Ω | g.cm | mA | pps |
| GM25-25BY-10 | 12 | 4 | 7.5° | 1/10 | 100 | 1000 | 120 | 600 |
| GM25-25BY-60 | 12 | 4 | 7.5° | 1/60 | 100 | 5000 | 120 | 600 |
| GM25-25BY-100 | 12 | 4 | 7.5° | 1/100 | 120 | 8000 | 100 | 550 |
Product Application
Fax paper cutter, scanner, copy machine, ip camera, industrial automeation control
| Other Applications: |
| Business Machines: | ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines. |
| Food and Beverage: | Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Home Entertainment and Gaming: | Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys. |
| Home Technologies: | Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines. |
| Lawn and Garden: | Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers. |
| Personal Care: | Hair Cutting, Hair Care, Massagers. |
| Power Tools: | Drills and Drivers, Sanders, Grinders, Polishers, Saws. |
| Camera and Optical: | Video, Cameras, Projectors. |

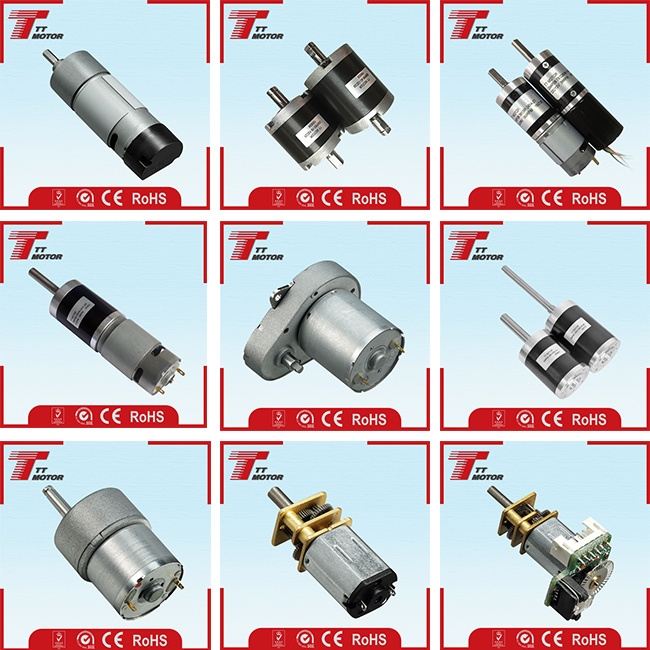

Related Products
Packing & Delivery
Packaging: single carton packing, 100 pieces per box.
Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
China Post: Depends on ship to which country;
Sea: Depends on ship to which country

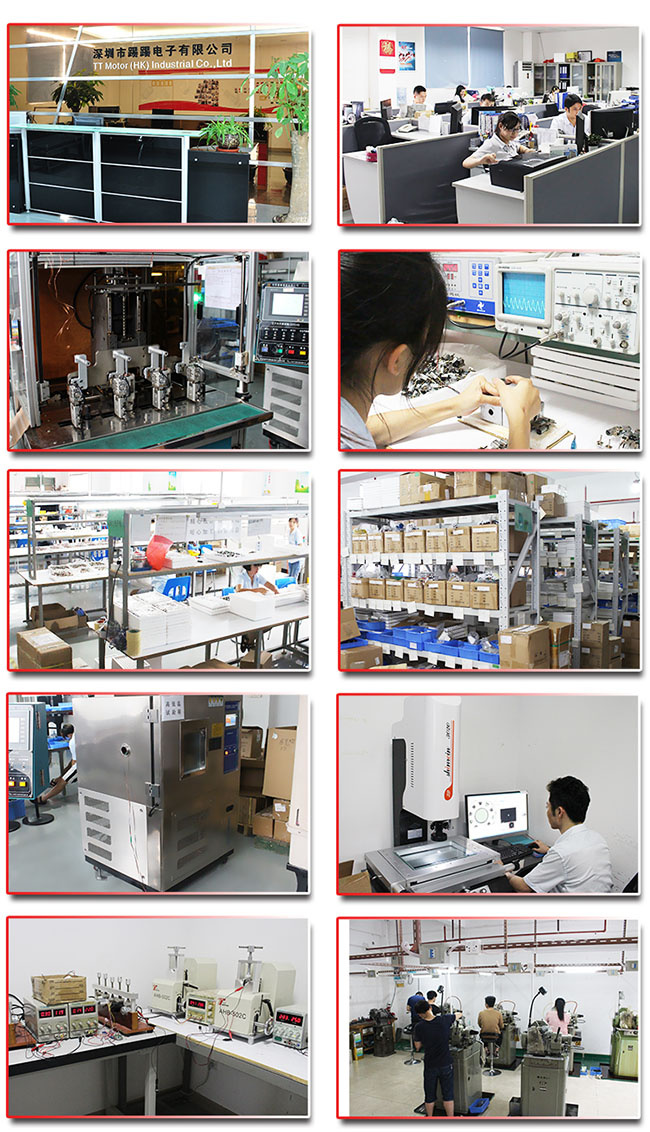

Our company
