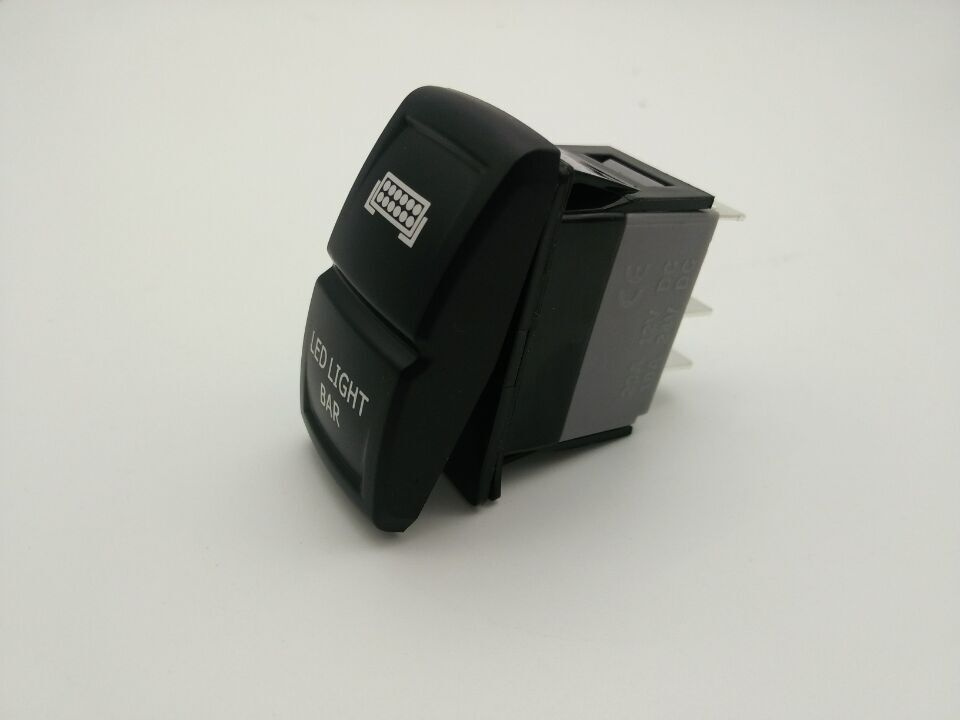

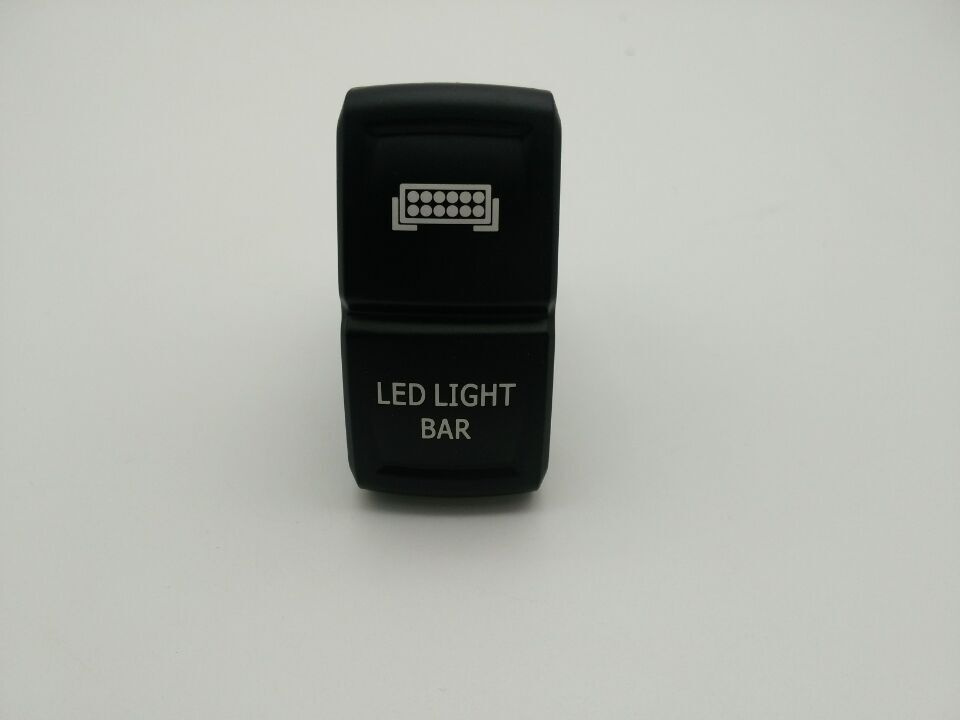

12V LED Rocker Switch with Bumper Light Bar 5 Colors LED

Prod Model:	MY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
DC:	12V/20A, 24V/10A
Pin:	3 Pins
Panel Cutout Dimesion:	36.8*21mm
Feature:	Waterproof Switch
Hxwxd:	42X24X40mm
Rating Ampere:	20A
Max. Voltage:	24V
Usage:	Digital Products
Standard:	Standard
Lamp:	With Lamp
Color:	Black
Certification:	CE
Condition:	New

Product Description

Packaging & Delivery

Packaging Details:	50pcs in a blister box, 500 pcs in a normal carton
Delivery Detail:	depend on your order quantity,normally it will takes 5-7 days

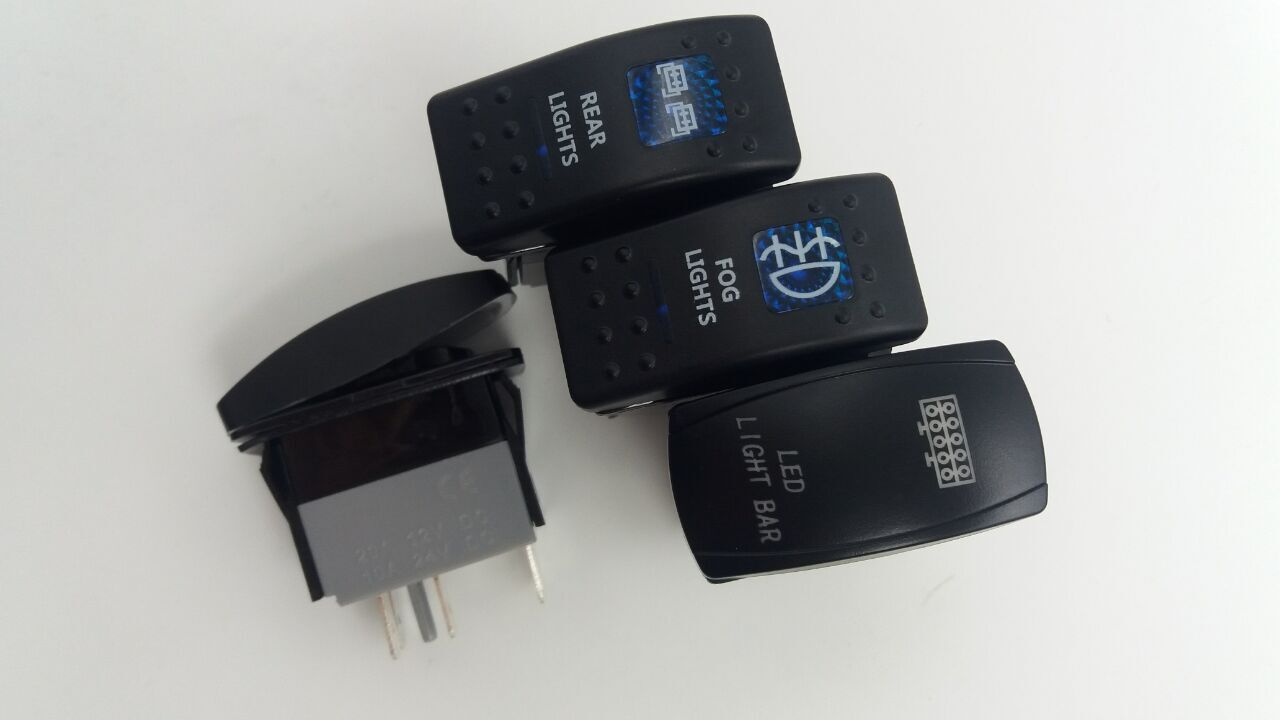

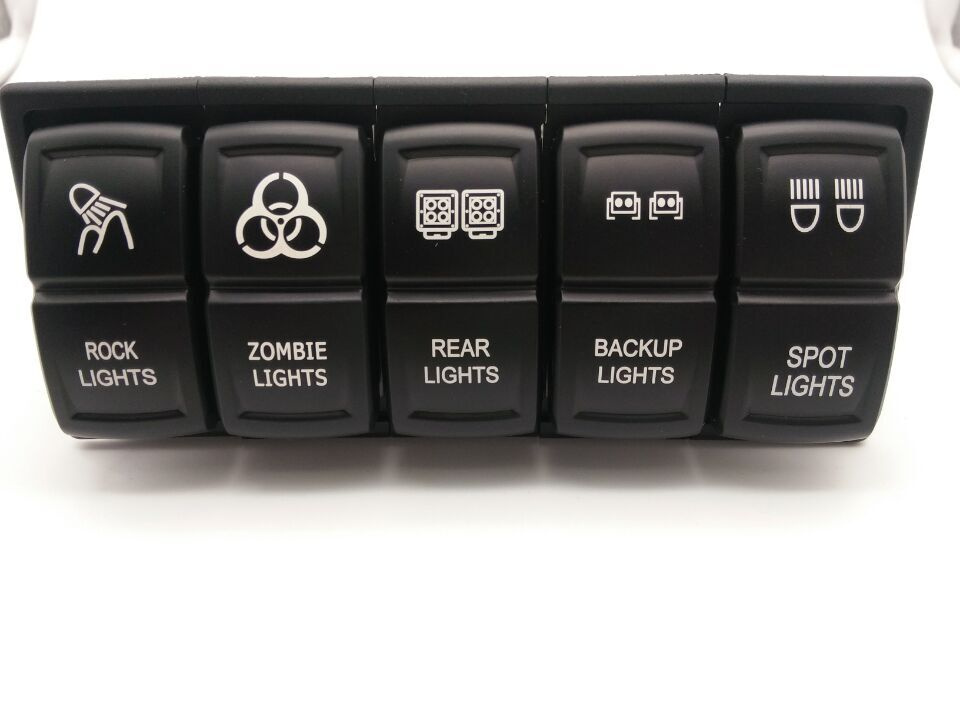

IP68 Dual LED dual color rocker switch with Laser Etched symbols

Details and the Specifications:

1.Abs plastic panel
2.waterproof rocker switch
3.500000 Mechanical Life
4. Process can be screen printing and laser carving
5. It has a face surface size of 0.90'' x 1.92'' and uses a standard din size mounting hole. Cutout Dimensions are 0.83'' x 1.45''.

 These high quality 12 volt Rocker switch is a single throw ON - OFF switch designed to operate your 12 volt accessories. They have a face surface size of 2'' (50mm) x 1'' (25mm) and uses a standard din size mounting hole of 1.41'' (36mm) x .86'' (22mm) this is the standard size of most switch holes in modern vehicles, however it is best to check your particular hole size if unsure.

Single Pole Single Throw ON-OFF switch.
12VDC 20Amps, 24VDC 10Amps 125VAC 16Amps, 250V DA10Amps.
Black hard surface rocker.

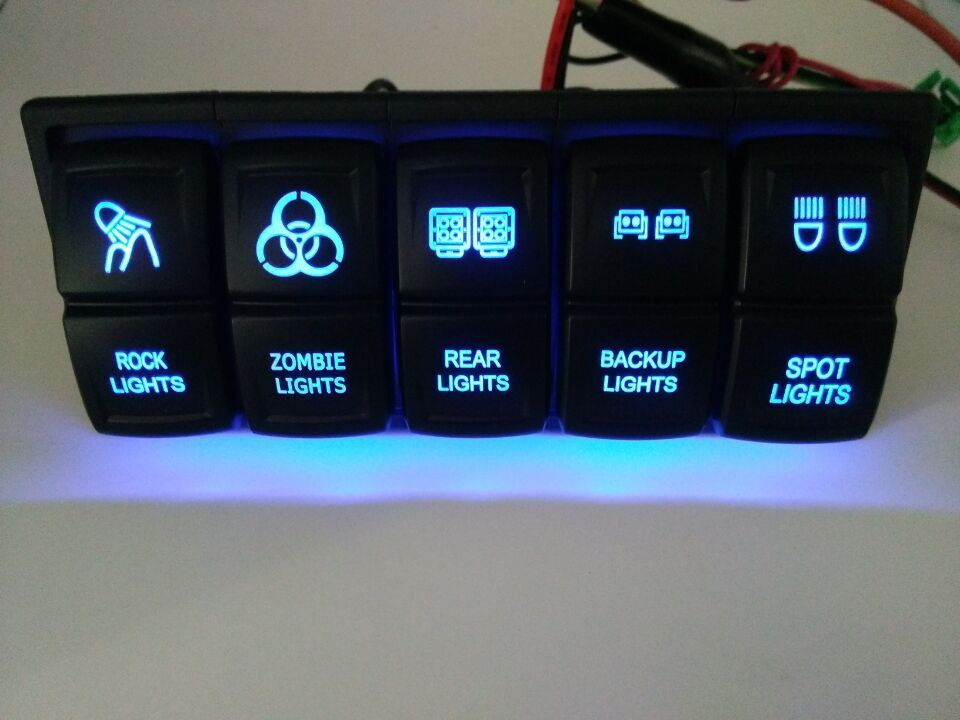

Two LEDs in the switch.
Upper LED is ON only when the switch is turned ON.
Lower LED is independent.
Both LEDs have separate grounds.
Same size as the Carling and ARB switches.
Rated 16A 12V.

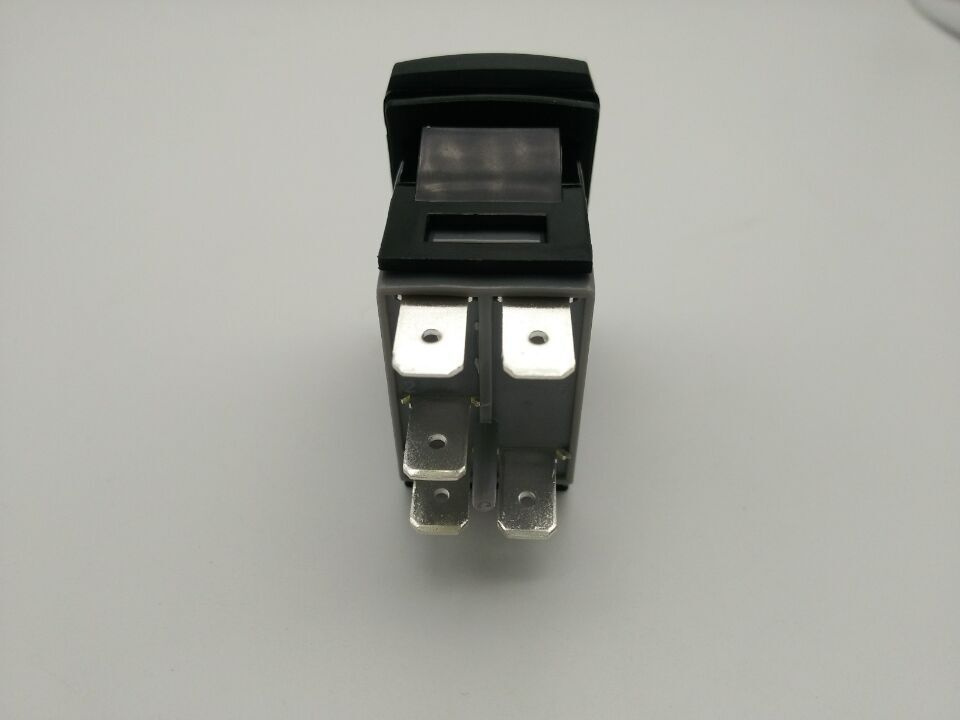

No rear barriers between terminals.
