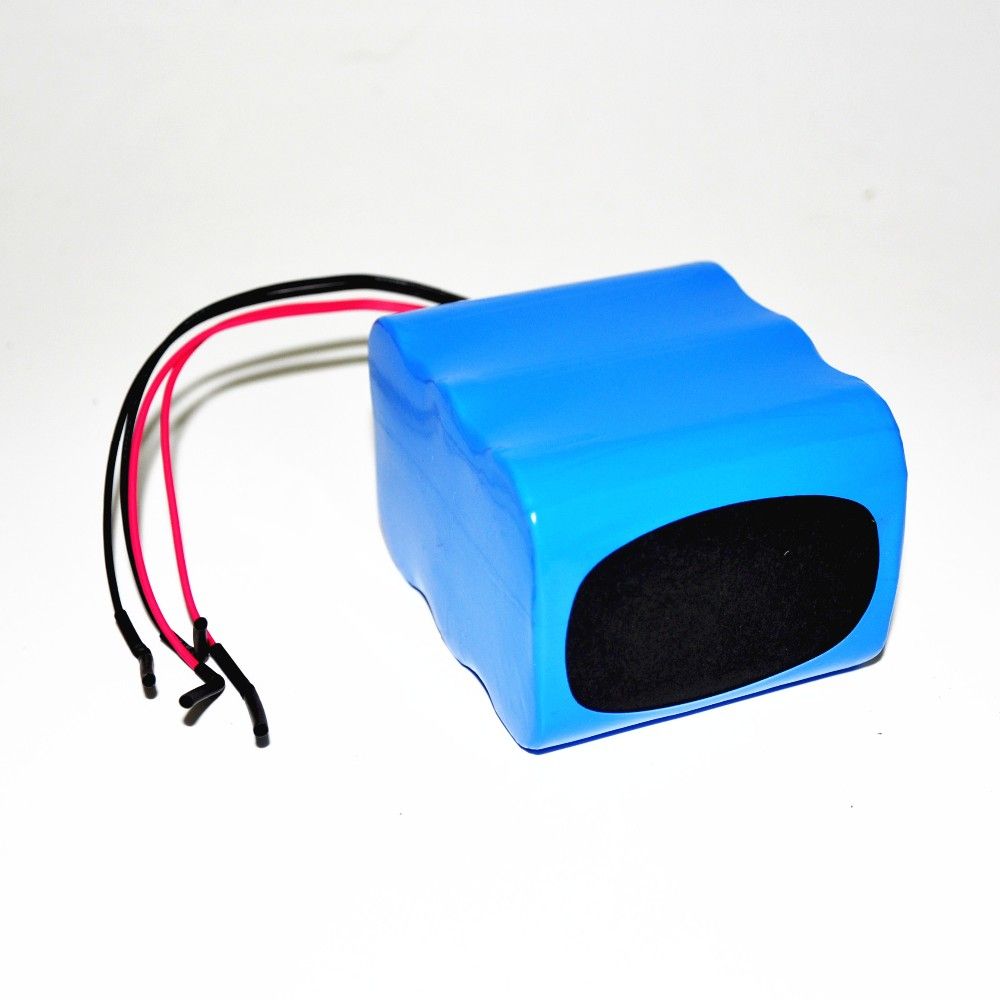

12V Li-ion Battery Pack for LED Light/Solar panel

Name: 12V Li-ion Battery Pack for LED Light/Solar panel
Brand: all-electronics-online.com
SKU: 827526745
Availability: InStock
Rating: 4.3 (53 reviews)

Price:	US $ 22-30/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WT003
Type:	Lithium-Ion Batteries
Usage:	Lighting
Nominal Voltage:	12V
Discharge Rate:	Medium Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

Solar Street Light Lifepo4 12v 12ah rechargeable battery for Led lights Battery for Lead Acid Battery Replacement

1, Item: 12V solar battery
2, Both cell and Battery pack are available
3,OEM orders are welcomed
4, Individual Li-ion , LiFePO4 battery can be assembled in parallel or series into stacks as required by customers

Model	12V solar battery
No.	Item	General Parameters
1	Nominal Capacity	12Ah
2	Nominal Voltage	12.8V
3	Charging Voltage	14.60V
4	Discharge end voltage	8.0V
5	Internal Impedance	≤280mΩ
6	Stand charge	Constant Current 0.2C5A,Constant Voltage 14.60V,
6	Stand charge	0.01 C5A cut-off
7	Standard discharge	Constant Current 0.2C5A
8	Maximum Continuous Charge Current	Constant Voltage 14.60V
9	Maximum Continuous Discharge Current	0.01 C5A cut-off
10	Operation Temperature Range	Charge: 0~45°C
10	Operation Temperature Range	Discharge: -10~60°C
11	Storage Temperature Range	Less than 1 year: -20~25°C
		less than 3 months: -20~40°C
		Less than 7 days :-20-60ºC
12	Dimensions	72110110mm the accurate size depends on your request
13	Certification	IEC62133 ,CB , 2006-66-EC , ROHS , UN38.3
14	Cycle life	2000 cycles
Safety Performance
1	Thermal exposure test	No explosion, No fire
2	Short test(20ºC)	No explosion, No fire The Temperature of the Battery surface not exceeded than 150ºC
3	Short test(55ºC)	No explosion, No fire The Temperature of the Battery surface not exceeded than 150ºC
4	Forced discharge test	No explosion, No fire
5	Over charge test	No explosion, No fire
6	Combustion test	Components (except for dust shape product) of the battery or batteries shall not penetrate aluminum network as a whole

Shenzhen Aug Energy Electronic Co., Ltd is consist of Hong Kong Aug Energy Electronic Co., Ltd. And the former Jiangxi Yichun technology Co., Ltd. Specializes in new energy lithium ion battery, lithium polymer battery, power electric vehicle assembly system, power control system of lithium battery research and development, production and sales in one of the high-tech export-oriented enterprises. In Jiangxi Yichun, Guangdong Dongguan both has the factories and companies, with a total investment of 200 million RMB, has nearly 25000 square meters standard workshop, has the domestic first-class lithium ion battery and lithium ion polymer battery automatic production equipment and testing equipment, can Nissan 200000 Ah lithium ion power battery and 10 sets of electric vehicle powertrain.

The company has a group of experts and technical personnel who will be long engaged in lithium ion power battery research and production, with south China university, central south university, Tianjin university etc eighteenth scientific research institutes maintain close relations of cooperation. Company researchers developed a manganese acid lithium batteries, lithium iron phosphate batteries, ultra-low temperature lithium ion battery series products and electric vehicle powertrain system and batch produce, the products has passed the ISO9001: 2000 quality system certification, CE certification, battery performance has reached the country's leading level.

Company products are mainly used in electric cars, solar equipment, communication base station, monitoring system, underwater communication power supply, GPS power supply, Banks, medical system emergency standby power, military industry, smart phones, tablet PC, laptop, mobile power supply, bluetooth and smart card, etc.
