12V Lithium Battery LiFePO4 with 5ah-300ah and PCM

Name: 12V Lithium Battery LiFePO4 with 5ah-300ah and PCM
Brand: all-electronics-online.com
SKU: 737798825
Availability: InStock
Rating: 4.8 (139 reviews)

Price:	US $ 4-6.9/Piece
Trade Terms:	FOB,CIF,DAP
Min Order:	50/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	OPT-12-5~300
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Battery Type:	Ifr 32650 (3.2V 5ah/6ah)
Drawing For Single Cell:	69.2mm(Length)*32.2mm(Diameter)
Case Material:	as Your Request
Certifications:	CE,UL,RoHS,Nqa,IEC,BV,SGS,Rbrc
Warranty Time:	2 Years
Life Cycles:	2000 Times
Application:	E-Car ,E-Bus ,Golf Car ,E-Bike,Scooter,RV,Agv ,Sol
Certificate:	UL ,CE ,RoHS ,ISO9001 ,Ts16949 ,SGS ,BV , IEC62133
Charge Method:	Cc/CV
Advantages:	Safety,Long Life Cycles,High Energy Density,
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Electrolyte:	LiFePO4

Product Description

12V Lithium Battery LiFePO4 with 5ah-300ah and PCM

Product feature

Use in electric richshaw vehicle,electric skatingboard,e-bike,e-motorcycle,e-car,solar light,ups,electric boat,LED

1.this battery suitable for all of the electric vehicle and skiing borad and UPS backup.

Longer cycle life
2.The cycle life of the battery pack can reach 2000 times with 0.2C-1C discharge current.

Small dimension and light weight
3.The Li-ion battery is have half dimension and third weight compare with the lead-acid battery. Thus the performance of the whole EV is improved and the battery can be taken off easily.

Green battery to protect environment
4.The lead-acid battery will pollute the environment seriously because of frequent replace, but the Li-ion battery is green power without pollution.

Very safe and Reliable
5.The Li-ion battery is more safe and reliable than the lead acid one. It wont explode or burn when bump, heavy stress, needle pricking, short circuit, overcharge and overheat.

Rapid charge
6.The battery can be full charged in2 hours at 0.5c current.

banlance charge and discharge
6.The pack have a BMS, so it will not over-discharge and over-charge. It is as a balance charger, but it is cheaper than it.

the best welcome and potential product

7.Now it is the best welcome and potential product in the battery market.

Specification:

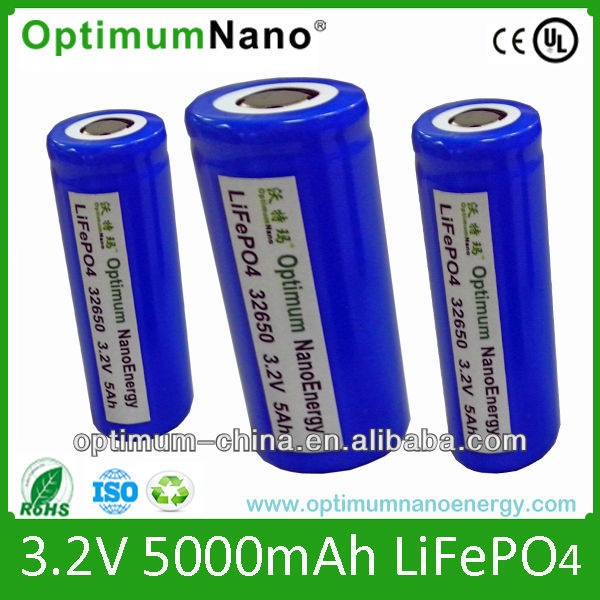

3.2v5ah datasheet
Voltage:	3.2V
Capacity:	5AH
Max.Charge voltage:	3.65V
Cut-off voltage:	2.5V
Standard charge and discharge current:	0.1-0.2C
size	32*70mm
Weight	Aboutm 45G
Cycle life(1C/1C 100% DOD)	2000 Cycles
Recommend Charge Current	(0.2C)
Recommend Continuous Discharge Current	(1C)
Max continuous Discharge current	(2.5C)
Peak Discharge (Max. 10 sec.Duration)	(3C)
Charge Temperature Range	0ºC~ 45ºC
Discharge Temperature Range	-20ºC~ 65ºC

Company Name: OptimumNano Energy Co., Ltd

Name of Exhibition: The China Sourcing Fair

Address: Hong Kong Asia Exhibition Hall

Booth No: At at 9B05

Dates: Oct 11-14, 2015(4 Days)

In 2002, OptimumNano Energy Co., Ltd started the battery business in Shenzhen.

In 2006, OptimumNano began to focus on the production, Engineering, researching and manufacturing of LiFePO4-Lithium Iron Phosphate Battery, we believe the LiFePO4 shall be the best Lithium-ion Power Solution in the future

In 2008, OptimumNano finished the first Pure Electric Bus with LiFePO4 Battery, demonstrating and running for Shanghai EXPO.

In 2009, OptimumNano was awarded the honor of "National High-tech Enterprise".

In 2011, OptimumNano was the main vehicle power battery supplier of the 26th World Universiade Games.

In 2012, OptimumNano was selected as one the supporting company of "2012 New Energy Automotive Industry Technology Innovation Project", which was launched by the Ministry of Finance, the Ministry of Industry and the Ministry of Science and Technology.

In 2013, OptimumNano moved to new and bigger factory to meet our 500, 000 PCS daily production requirement.

In 2014, Shenzhen mayor Mr. Wang Rong and others come to our company to make researches and guidances and gave high praise for our company achievement in the new energy industry

OptimumNano set up the workstation for Academician Material Application. With around 500 R&D staffs, now we have more than 200 patents at home and abroad.

After over 13 years' development, OptimumNano has offices in local 31 cities, distribute our LiFePO4 batteries to over 40 countries in the world.
