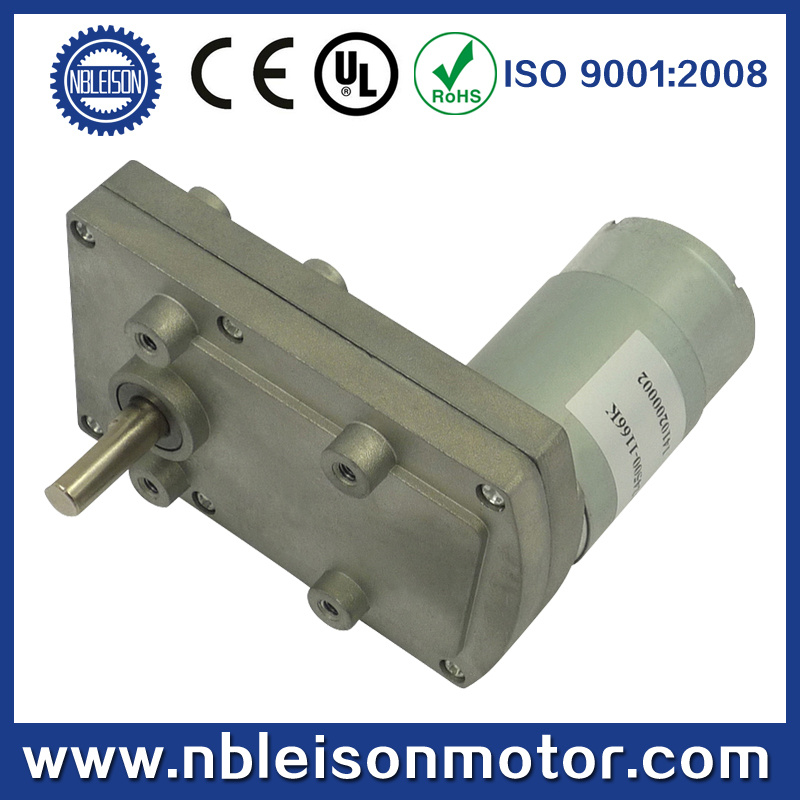

12V Low Rpm DC Motor with Gear Reduction (TT555122500)

Name: 12V Low Rpm DC Motor with Gear Reduction (TT555122500)
Brand: all-electronics-online.com
SKU: 678550082
Availability: InStock
Rating: 4.8 (89 reviews)

Price:	US $ 6.25-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TT555122500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gear:	Metal Gear
Construction:	Permanent Magnet
Commutation:	Brush
Rotation Direction:	Reversible
Shaft:	Round, D-Cut, Hole Thread or Other Customized
Gear Type:	Spur Gear
Lubrication:	Grease
Motor Type:	Iron Core Permanent Magnet Motor
Efficiency:	Ie1
Structure And Working Principle:	Brush
Operating Speed:	Low Speed
Application:	Vending Machine, Coffee Machine

Product Description

DC motor with gearbox

1. Voltage: 3V, 6V, 12V, 24V

2. Speed: 1-60rpm

3. Rated torque: 3-60kg. Cm

4. Ratio: 1: 37 to 1: 1166

5. Direction of rotation: CW/CCW

6. Packing: 55X35X18CM 24PCS/ CTN 14KGS Net weight

7. Application: Household appliancesslot machinesmoney detector automatic actuator. Coffee machine towel disposalcoin refund devicesperistaltic pump Lighting stage lamp

8. The data sheet and price range are only for referece, Motor's price are decide by toque and ratio reduciton, Please contact with me if want more informations.

Motor name	Rated volt. v	No load		Load torque				Stall torque
		Current	Speed	Current	Speed	Torque	Output power	Torque	Gear trains
		mA	r/min	mA	r/min	kg · cm	W	kg. cm	mm
TT545122500-36K	12	≤ 100	60	≤ 330	46	2.7	1.2	6	3
TT545122500-676	12	≤ 100	33	≤ 330	26	4.6	1.2	15	3
TT545122500-90K	12	≤ 100	23	≤ 330	18	6.9	1.2	21	3
TT545122500-150K	12	≤ 100	14.9	≤ 330	11	10	1.2	30	4
TT545122500-196K	12	≤ 100	11.5	≤ 330	8.5	12.9	1.1	39	4
TT545122500-277K	12	≤ 100	8	≤ 330	6	18.3	1.1	54	4

Motor name	Rated volt. v	No load		Load torque				Stall torque
		Current	Speed	Current	Speed	Torque	Output power	Torque	Gear trains
		mA	r/min	mA	r/min	kg · cm	W	kg. cm	mm
TT545122500-394K	12	≤ 100	5.6	≤ 330	4.2	26.4	1.1	78	4
TT545122500-624K	12	≤ 100	3.6	≤ 330	2.7	37	1	111	5
TT545122500-1166K	12	≤ 100	1.9	≤ 230	1.6	60	1	180	5

Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,

Our Product range are:

DC Brush motor: 6-130mm diameter, 0.01-1500W output power.

DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power

DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power

Brushless DC Motor: 28-110mm, 5-1000W output power

Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw

AC Gear Motor: 49 to 100mm diameter, 6-140 output power

Compare with other competitors, Our advantages are:

1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.

2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.

3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.

4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.

5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).

Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
