12V Micro Brush DC Geared Electric Motor for Car

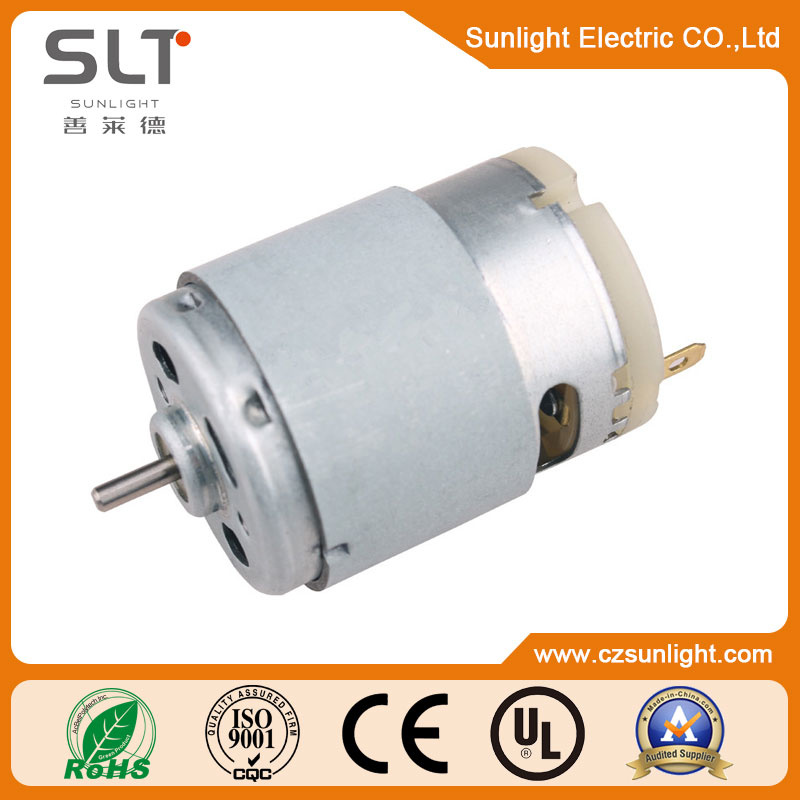

Name: 12V Micro Brush DC Geared Electric Motor for Car
Brand: all-electronics-online.com
SKU: 761801515
Availability: InStock
Rating: 5 (37 reviews)

Price:	US $ 1-5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SLT-380PA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	12V
No Load Speed:	8114rpm
No Load Current:	0.103A
Load Speed:	6768rpm
Load Current:	0.518A
Load Torque:	61.8 G.Cm
Output:	3.99W
Stall Torque:	372.7g.Cm
Stall Current:	2.606A
Application:	Medical Equipments
Operating Speed:	Constant Speed
Excitation Mode:	Compound
Structure And Working Principle:	Brush
Certification:	CE
Brand:	Slt

Product Description

Product description
Voltage:12V
No Load Speed:8114rpm
No Load Current:0.103A
Load Speed:6768rpm
Load Current:0.518A
Load Torque:61.8G.Cm
Output:3.99W
Stall Torque:372.7G.Cm
Stall Current:2.606A

Advantages of 12V Micro Brush DC Geared Electric Motor for Car
a: Save cost, price is low
b: Better reliability.
c: Low energy consumption.
d: Speed is steady.
e: Easy to run and adjust the speed.
f: Small size, easy to carry.
g: Application range is super wide.

The specification of 12V Micro Brush DC Geared Electric Motor for Car

Model			SLT-380PA-20150
Voltage	Operating Range (V)		9.0-15.0
Voltage	Nominal (V)		12.00
NO Load	Speed	r/min	8114
NO Load	Current	A	0.103
At Max Efficiency	Speed	r/min	6768
	Current	A	0.518
	Torque	mN.m	6.06
	Torque	g.cm	61.8
	Output	W	3.99
Stall	Torque	mN.m	36.53
	Torque	g.cm	372.7
	Current	A	2.606
