| Prod Model: |
DC Brushless Gear motor GMP56-TEC5760 |
| Product Name: |
DC Brushless Gear motor GMP56-TEC5760 |
| Maximum Efficiency: |
80%-90% |
| Voltage: |
6V-24V |
| Press Fit Force(Statics): |
40N |
| Maximum Winding Temperature: |
80ºC |
| Max Allowable Screw Into Flange: |
1.8mm |
| Ambient Temperature Range: |
-30-65ºC |
| Axial Play: |
Preset |
| Axial(Dynamix): |
0.8N |
| Maximum Radial Play: |
≤0.02mm |
| Application: |
Power Tools |
| Operating Speed: |
Low Speed |
| Structure And Working Principle: |
Brushless |
| Excitation Mode: |
Permanent Magnet |
| Type: |
DC Brushless Gear motor |
| Certification: |
RoHS CE |
| Brand: |
TT motor |
Product Description
Website |
Website: www.ttmotor.com |
Contact |
Elina Yan |
Tel |
+86-1581-3704-981 |

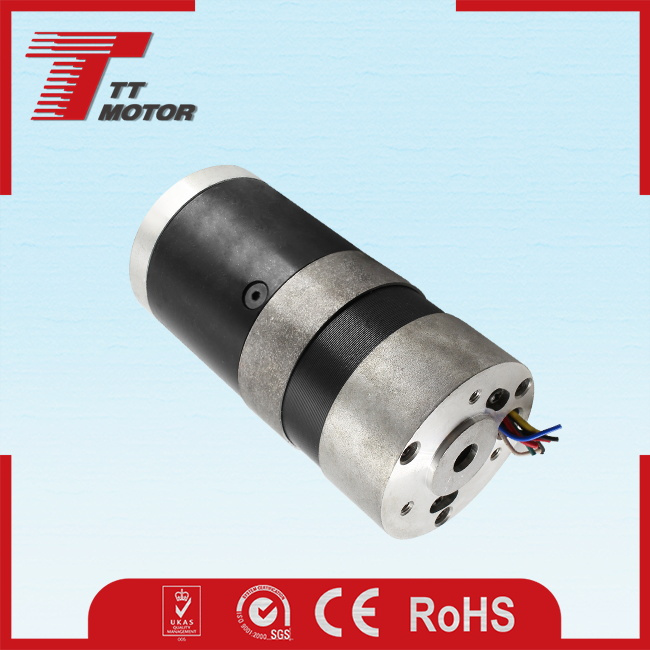

12V mini dc brushless motor for lifting chairs engine
Main Features
1.OEM/ODM 56mm gearbox plus 57mm brushless motor |
2.Small size dc gear motor with low speed and big torque |
3.56mm gear motor provide 30.0Nm torque and more reliable |
4.Suitable to small diameter, low noise and big torque application |
5.Reduction ratio:4,13,15,18,47,55,65,77,168,198,234,276,326 |
Motor technical data :
Motor model no. |
Rated voltage |
No-load speed |
No-load current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall torque |
Stall current |
VDC |
r/min |
mA |
r/min |
g.cm |
mA |
W |
g.cm |
A |
TEC5760-1220 |
12.0 |
2000 |
350 |
1600 |
1100 |
2100 |
18 |
2400 |
5.0 |
TEC5760-2440 |
24.0 |
4000 |
200 |
3000 |
1600 |
3500 |
50 |
4500 |
8.0 |
TEC5760-2480 |
24.0 |
8000 |
700 |
6100 |
2100 |
7600 |
132 |
6700 |
12.0 |
Gear motor technical data : GMP56-TEC5760-1220-xxx
Reduction ratio |
4 |
13 |
18 |
47 |
55 |
77 |
168 |
198 |
326 |
Length mm |
36 |
48 |
48 |
59 |
59 |
59 |
70.2 |
70.2 |
70.2 |
No-load speed rpm |
500 |
150 |
110 |
42 |
36 |
26 |
12 |
10 |
6 |
Rated speed rpm |
400 |
120 |
88 |
34 |
29 |
21 |
10 |
8 |
6 |
Rated torque kg.cm |
4.0 |
11 |
16 |
36 |
42 |
59 |
110 |
130 |
215 |
Max.momentary tolerance torque kg.cm |
9 |
25 |
35 |
79 |
92 |
129 |
242 |
285 |
300 |
Gear motor technical data : GMP56-TEC5760-2440-xxx
Reduction ratio |
4 |
13 |
18 |
47 |
55 |
77 |
168 |
198 |
326 |
Length mm |
36 |
48 |
48 |
59 |
59 |
59 |
70.2 |
70.2 |
70.2 |
No-load speed rpm |
950 |
300 |
220 |
80 |
70 |
50 |
23 |
20 |
12 |
Rated speed rpm |
750 |
230 |
165 |
64 |
55 |
39 |
18 |
15 |
9 |
Rated torque kg.cm |
6.0 |
17 |
23 |
53 |
62 |
86 |
161 |
190 |
300 |
Max.momentary tolerance torque kg.cm |
16 |
47 |
65 |
148 |
173 |
243 |
300 |
300 |
300 |
Gear motor technical data : GMP56-TEC5760-2480-xxx
Reduction ratio |
4 |
13 |
18 |
47 |
55 |
77 |
168 |
198 |
326 |
Length mm |
36 |
48 |
48 |
59 |
59 |
59 |
70.2 |
70.2 |
70.2 |
No-load speed rpm |
1950 |
600 |
430 |
165 |
140 |
100 |
47 |
40 |
24 |
Rated speed rpm |
1500 |
470 |
340 |
130 |
110 |
80 |
36 |
30 |
19 |
Rated torque kg.cm |
8.0 |
22 |
30 |
69 |
81 |
110 |
210 |
250 |
300 |
Max.momentary tolerance torque kg.cm |
24 |
70 |
98 |
220 |
258 |
300 |
300 |
300 |
300 |
