| Prod Model: |
JRS-540 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| DC Motor: |
DC Motor |
| Voltage: |
6V -24V |
| Speed: |
Constant Speed |
| Torque: |
High Torque |
| Micro: |
Micro Electric Motor |
| Brush: |
Carbon Brush |
| Diameter: |
36mm |
| Power: |
DC High Power |
| Material: |
RoHS Material |
| Shaft: |
Stainless Steel |
| Application: |
Power Tools |
| Operating Speed: |
Constant Speed |
| Excitation Mode: |
Excited |
| Structure And Working Principle: |
Brush |
| Certification: |
Ce RoHS |
Product Description
-Voltage:6v-25v
-Speed:constant speed
-Brush:Carbon Brush Motor
-Power:Dc high power
-Motor diameter :35.8mm
-OUTPUT: APPROX 3.0W-65W
-Typical Applications: Household applications, Door Closer, Ride-on Toy, etc.
-Motor's specification and shaft length can be tailor-made according to customer's requirements.
| Model | Voltage | No Load | At Maximum Efficiency | Stall |
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Output | Torque | Current |
| r/min | A | r/min | A | mN.m | g.cm | W | mN.m | g.cm | A |
| JRS-540RH-7516 | DC2.4-4.5V | DC 3.6V | 20200 | 2.90 | 16310 | 12.2 | 15.1 | 154 | 25.8 | 78.5 | 800 | 51.0 |
| JRS-540RH-5045 | DC4.5-9.6A | DC 6V | 11600 | 0.82 | 9660 | 4.09 | 14.4 | 147 | 14.6 | 86.3 | 880 | 20.4 |
| JRS-540RH-6035 | DC3.6-7.2V | DC 7.2V | 9500 | 1.15 | 7700 | 4.91 | 12.3 | 125 | 9.88 | 64.7 | 660 | 21.0 |
| JRS-540SH-5045 | DC4.5-12V | DC 12V | 17500 | 0.95 | 15080 | 5.93 | 31.8 | 324 | 50.1 | 230 | 2350 | 37.0 |
| JRS-540SH-7520 | DC3.6-7.2V | DC 4.8V | 15400 | 2.00 | 13010 | 10.9 | 26.0 | 265 | 35.3 | 167 | 1700 | 59.0 |

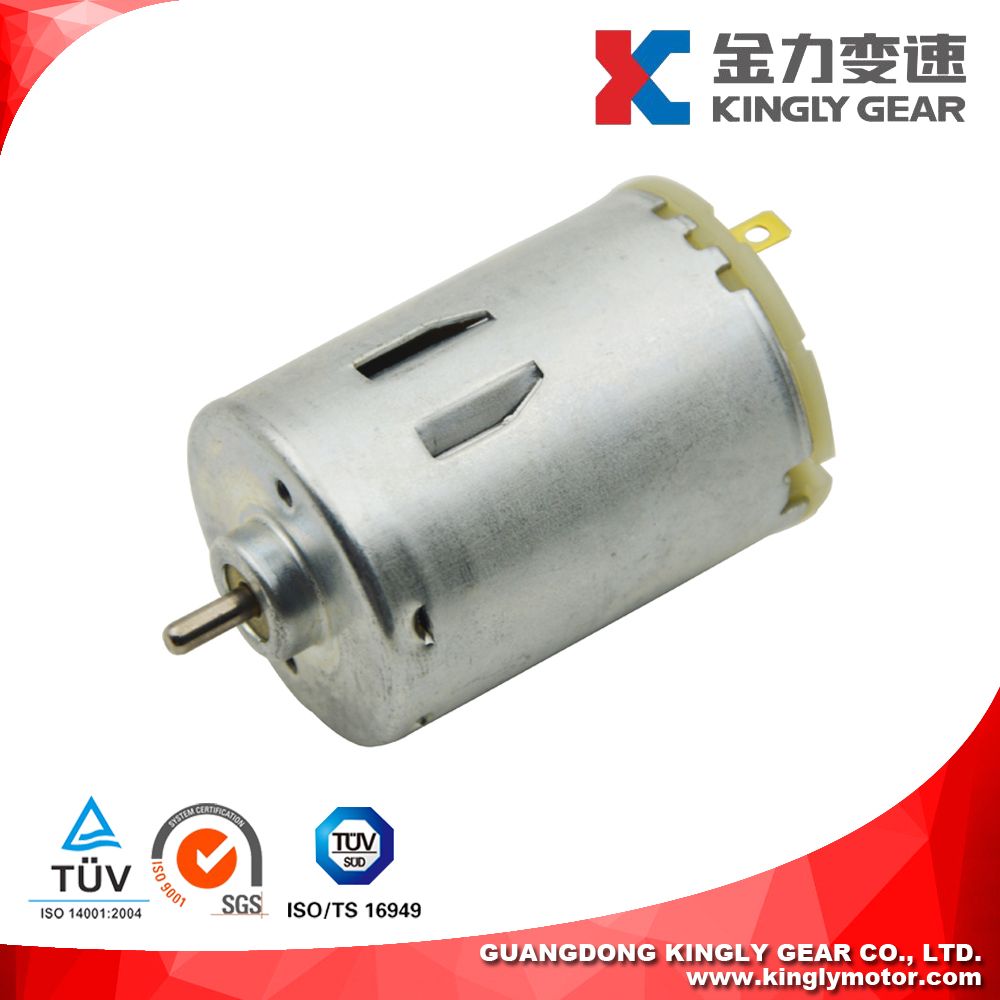

12v motor for electric power tool
Typical Applications:
Electric tool, drill motor, garden tool motor
Copy Machine, Cash Register Hair Dryer
Vending Machine, Door Lock, Copy Machine
Massager/Vibrator, Radio Control Model
Output Power: Approx 0.07W-0.1W
Voltage: From 1.5v to 24v
Speed: From 2000rpm to 30000rpm
Torque: From 0.1g. Cm to 500g. Cm
Dia: 6mm to 48mm
-Motor's specification and shaft length can be tailor-made according to customer's requirements.
