| Prod Model: |
ZWPD024024-384 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
12V DC |
| Gearbox Diameter: |
24mm |
| No Load Speed: |
15rpm |
| No Load Current: |
80mA(Max) |
| Rated Load Speed: |
13rpm |
| Rated Load Current: |
220mA(Max) |
| Torque: |
4206gf.Cm |
| Max Rated Torque: |
5000 Gf.Cm |
| Ratio: |
384:1 |
| Motor Type: |
Planetary Gear Motor |
| Application: |
Power Tools |
| Operating Speed: |
Low Speed |
| Structure And Working Principle: |
Brush |
| Excitation Mode: |
Permanent Magnet |
| Casing Protection: |
Drip-Proof |
| Type: |
Gearbox Motor |
| Certification: |
RoHS |
| Brand: |
Zhaowei |
Product Description

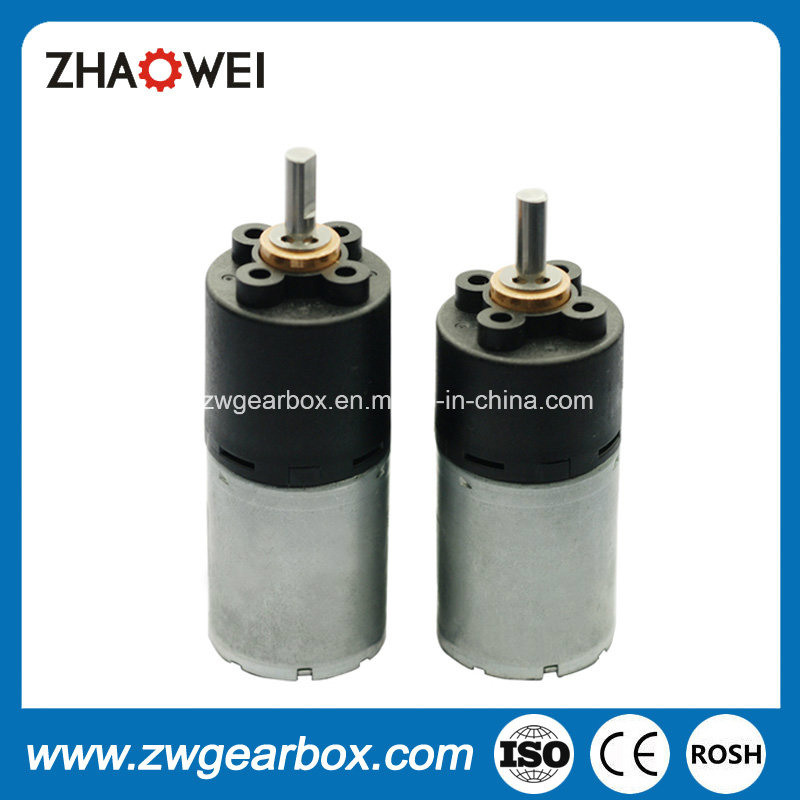

12V Nominal Voltage Planetary Gear Motor With Plastic Gearbox
Product Description
Planetary Gear Motors with Plastic Gearbox
No-load speed: 15rpm
Load speed: 13rpm
Load torque: 4206gf.cm
Model | Typical Application Parameters | Max Rated Torque of Gear Box
| Max Instant Torque of Gear Box
| Gear Ratio
| Gear Box Length
L1 |
Rated
| At No Load
| At Rated Load | Overall Length
L |
Voltage
| Speed
| Current
| Speed
| Current
| Torque
|
| VDC | rpm | mA(MAX) | rpm | mA(MAX) | gf.cm | mN.m | mm | gf.cm | gf.cm | mm |
| ZWPD024024-16 | 12.0 | 365 | 75 | 315 | 215 | 248 | 24.4 | 51.6 | 1500 | 4500 | 16 | 20.8 |
| ZWPD024024-24 | 12.0 | 243 | 75 | 210 | 215 | 373 | 36.5 | 1500 | 4500 | 24 |
| ZWPD024024-36 | 12.0 | 162 | 75 | 140 | 215 | 559 | 54.8 | 1500 | 4500 | 36 |
| ZWPD024024-64 | 12.0 | 91 | 75 | 79 | 220 | 835 | 81.8 | 57.7 | 3000 | 9000 | 64 | 26.9 |
| ZWPD024024-96 | 12.0 | 61 | 75 | 52 | 220 | 1144 | 112.2 | 3000 | 9000 | 96 |
| ZWPD024024-144 | 12.0 | 41 | 75 | 35 | 220 | 1878 | 184.1 | 3000 | 9000 | 144 |
| ZWPD024024-216 | 12.0 | 27 | 75 | 23 | 220 | 2817 | 276.2 | 3000 | 9000 | 216 |
| ZWPD024024-256 | 12.0 | 23 | 80 | 20 | 220 | 2804 | 275.0 | 63.8 | 5000 | 10000 | 256 | 33 |
| ZWPD024024-384 | 12.0 | 15 | 80 | 13 | 220 | 4206 | 412.5 | 5000 | 10000 | 384 |
| ZWPD024024-576 | 12.0 | 10 | 80 | 9 | 220 | 5000 | 490.4 | 5000 | 10000 | 576 |
| ZWPD024024-864 | 12.0 | 7 | 80 | 6 | 220 | 5000 | 490.4 | 5000 | 10000 | 864 |
| ZWPD024024-1296 | 12.0 | 5 | 80 | 4 | 220 | 5000 | 490.4 | 5000 | 10000 | 1296 |
Note: The technical paratmeters can be customized according to client's requirement.

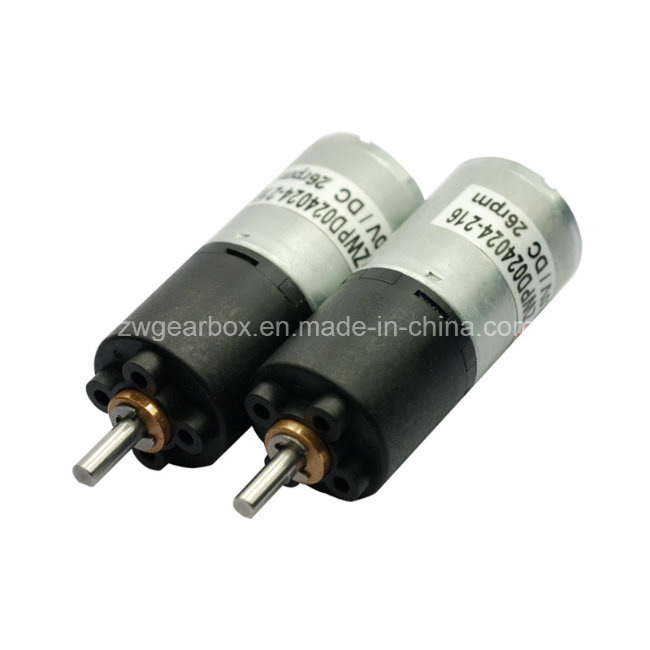

Product details show
Our Services
- ODM & OEM
- Gearbox design and development
- Related technology support
Packaging & Shipping
1) Packing Details
packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.
Or according to client's requirement.
2) Shipping Details
samples will be shipped within 10 days;
batch order leading time according to the actual situation.
Company Information
Shenzhen Zhaowei Machinery & Electronics Co., Ltd is a national grade high-tech enterprise which professionally specialized in R&D and manufacture high precise gear box reducers. We provide total solution to costomers including transmission gear box design, gear parts and molding design and manufacturer, parts mass production and assembly.
1) Competitive Advantages
- 18-year experience in manufacturing motor gearbox
- Experienced Staff: average 7-year experience in R&D , ODM &OEM
- International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
- Competitive Price
- High Product Performance: Low noise, High efficiency, Long lifespan
- Prompt Delivery: 15 working days after payment
- Small Orders Accepted
- Advanced equipments: Agie Wire cutting machines, Agie EDM, Makino, EDM, Roders CNC, Sodick and Sumitomo Precision Injection Machines, etc.
2) Main Products
Certifications
We Have passed to hold ISO9001, ISO14001 and TS16949.
and more...
FAQ
1. Can you make the gearbox with custom specifications?
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2.Do you provide the samples?
YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.
3.What is your MOQ?
Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.
4. Do you have the item in stock?
I am sorry we donot have the item in stock, All products are made with orders.
5. Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
6.How to ship to us?
We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.
7.How to pay the money?
We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.
8. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
9. Can I come to your company to visit?
YES, you can come to our company to visit at anytime, and welcome to visit our company.
10. How do contact us ?
Please send an inquiry .
Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 1997, which is State High-Tech enterprise for gear transmission design and manufacturing. We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.
Main Products
The products are widely used in Automobile, industry equipment, Smart Home, Medical device, standard gearbox etc.
ZHAOWEI has 165 Sumitomo injection machines and 35 automatic production lines. Most of machines come from overseas such as AGIE wire cutting machine, AGIE EDM, MAKINO, FANUC, RODERS CNC. The company focus on three divisions "components manufacturing center", "precise tooling" and "Transmission Module" with more than 1000 employee.
ZHAOWEI specialized in precise injection components and precise transmission system with the quality certification ISO9001, TS 16949 and has been awarded with "State High-Tech Enterprise" in 2013. The company pay more attention on R & D and got more than 40 patents. 4G antenna E-tilt mechanism, Smart Home Device, Intelligent robot drive module self-developed reached the international technical level. ZHAOWEI has established the long term Strategy partnership with HUAWEI, BOSCH, etc. New Plant project has been started in Huizhou City that will helpful to foster ZHAOWEI business and meet the globalization development needs.
