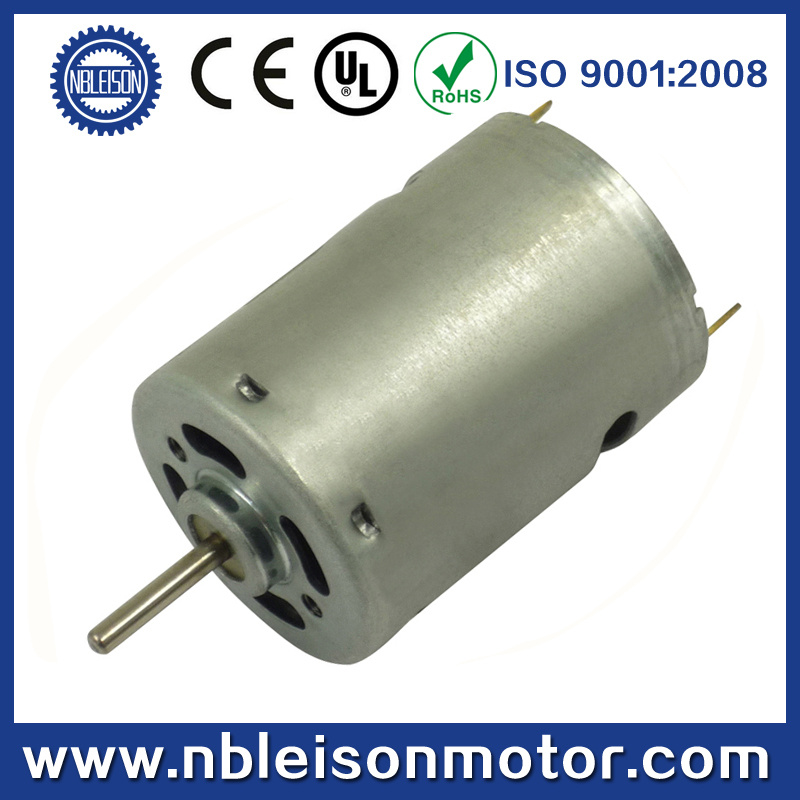

12V Permanent Magnet DC Motor

Name: 12V Permanent Magnet DC Motor
Brand: all-electronics-online.com
SKU: 678492582
Availability: InStock
Rating: 4.4 (114 reviews)

Price:	US $ 0.56-2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RS-380
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Construction:	Permanent Magnet
Commutation:	Brush
Stator:	2 Poles
Armature Slots:	3 Solts
Shaft:	Dia2.3mm Steel Shaft, Accept Customized
Opition:	EMC/EMI Suppression, Cooling Fan
End Cap:	Metal or Plastic for Choose
Insulation Of Armature:	Class F Magnet
Structure And Working Principle:	Brush
Operating Speed:	Constant Speed
Application:	Power Tools, Household Appliances, Water Pump, Fan

Product Description

DC Motor:

Volatge: 3-36V

Speed: 1500-35000RPM

Output Power: 1-40W

Dimension: 27.7dia x37.8mm length

Packing: 29.5X27X13.5CM, 200PCS/CTN 15KSG/CTN

Note: The technical data sheet and price range are only for reference, we can customerize them according to different requirements after evaluation, Please contact with me if you have want sampels or more specifications

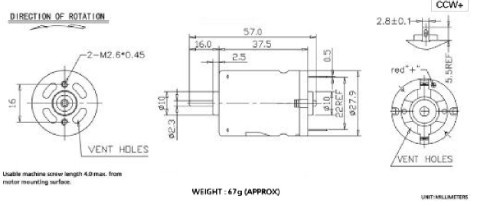

Dimension:

MODEL	VOLTAGE		NO- LOAD		AT MAXIMUM EFFICIENCY					STALL
	VOLTAGE		SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	TORQUE		CURRENT
	OPERATING RANGE	NOMINAL	r/min	A	r/min	A	mN@ m	g@ cm	W	mN@ m	g@ cm	A
RS-380SH-4045	DC 3-9V	DC 7.2V	16200	0.5	14060	3.29	10.9	111	16	82.3	840	21.6
RS-380SH-3557	DC 12-24V	DC 12V	21200	0.44	18367	2.85	11.26	114.9	21.68	84.2	860	18.5
RS-380SH-3750	DC 6-12V	DC 12V	16500	0.45	13966	1.96	8.34	85.2	12.67	68.6	700	14.67
RS-380SH-12300	DC 12-30V	DC 24V	8000	0.07	6540	0.31	6.27	63.9	4.29	34.3	350	1.4
RS-380SA-3270	DC 3-12V	DC 6V	9200	0.26	7800	1.4	7.4	75	6	48.4	493	7.8
RS-380SA-12350	DC 12-28V	DC 24V	7400	0.06	6000	0.27	6.3	64	3.9	33.1	338	1.2

Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,

Our Product range are:

DC Brush motor: 6-130mm diameter, 0.01-1500W output power.

DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power

DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power

Brushless DC Motor: 28-110mm, 5-1000W output power

Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw

AC Gear Motor: 49 to 100mm diameter, 6-140 output power

Compare with other competitors, Our advantages are:

1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.

2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.

3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.

4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.

5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).

Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
