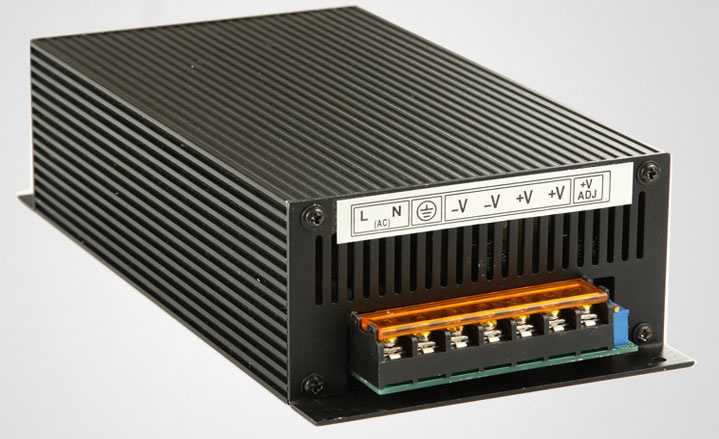

12V Series 480W Hot Sale Switch Power Supply

Prod Model:	wsp-480-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	110*191*58mm L*W*H
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	Capacitor Step-down
Brand:	Wsp

Product Description

12V 40A 480W Switching Mode Power supply
Model WSP-480W-12V
Input Input Voltage(V) 110/220VAC
Input Current (A) 2.8A Max
Frequency (Hz) 50Hz-60Hz
Efficiency 82% Typ(230VACFull Load)
Inrush current(A) Cold star <20A/230VAC
Leakage current(mA) <3mA/240VAC
Output Output Voltage(V) +36VDC
Voltage Regulation +3,-2%
Output Current(A) 140A
Current  Range (A) 0 ~ 40A
Rated Power(W) 3480W
Start time, hold-up time(ms) Ton≤1000ms,Td≥20ms @230Vac Full Load
Rise time(ms) Typ:20ms @230Vac Full Load
Ripple/Noise(mVp-p) 120mVp-p
Environment working Temperature (°C) 0°C - +40°C(refer derating curve)
Storage Temperature(°C) -20°C - +60°C
Humidity(%) 20% - 90% RH non condensing
Safety/ EMC Withstand voltage(VAC) I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min
Safety  Standard EN/UL60950-1,GB4943
EMC  Standard EN55022 Class B,EN61000-4-2,3,4,5,6,8,11 GB17626.5 Level3
Protection Over voltage Protection >115%-135% Rated output voltage
Over load Protection >105%-150% Auto recovery
Short circuit Protection Latched
Over Temperature Protection No
Sise    L*W*H(mm)

110*191*58mm L*W*H

Weight
1280g/pcs
