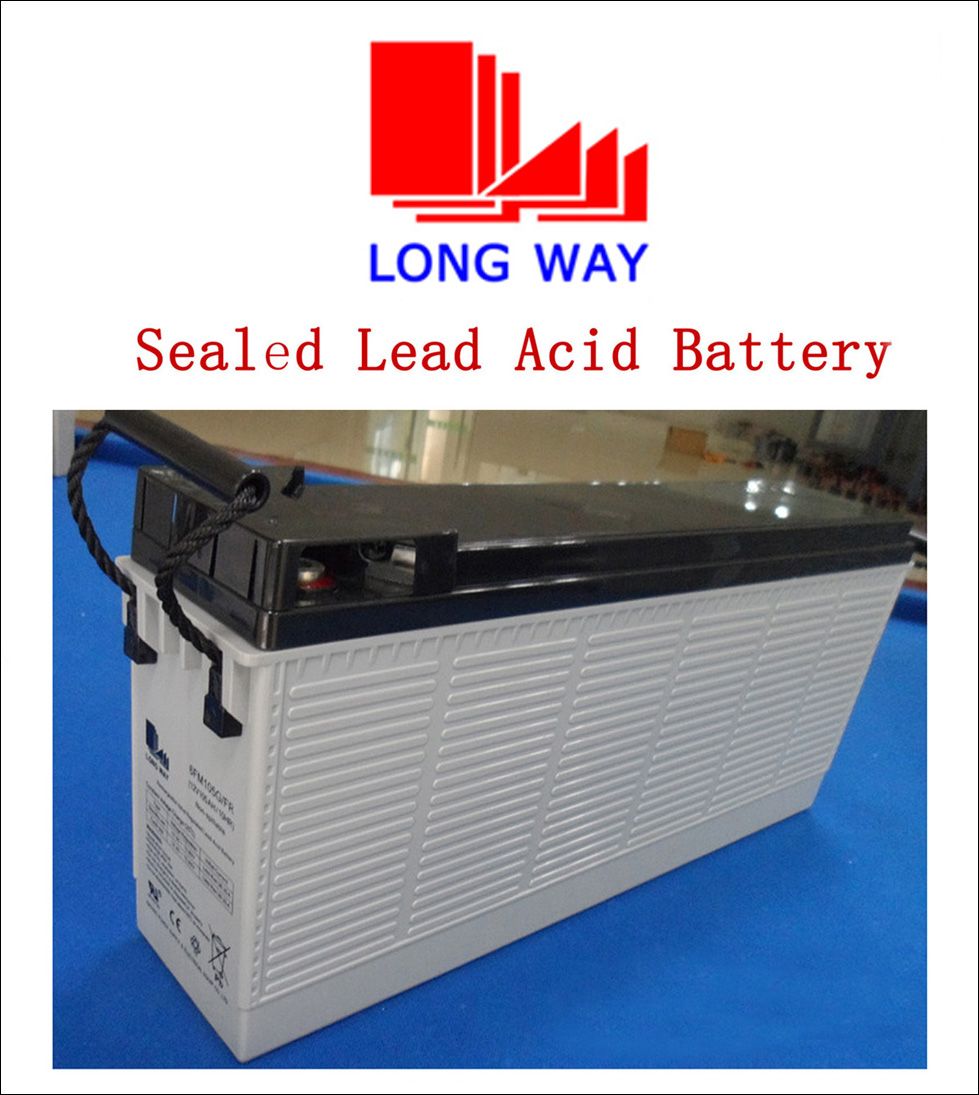

12V Solar UPS Front Access Sealed Lead Acid Battery

Prod Model:	6FM105FR (12V105AH/10HR)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Grey or Black or Orange
Packing Qty.:	1 PCS/CTN
Size:	L527*W110*H225(Th232)mm
Weight:	32.5kg/71.7lbs
Terminal:	F11
Applications:	UPS, Telecom System, Bank Security System, Railway
Type:	Lead-Acid Batteries
Usage:	Boat
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

12V Solar Ups Front Access Sealed Lead Acid Battery 6FM105FR

The Longway FR series battery is mainly uesed in the area of communication, which is novel in design, reasonable in structure and occupying the leading position in the same industry of the world.

As with previous INTELEC(International Telecommunications Energy)conferences, many people were concerned about the life and durability of VRLA(Valve regulated lead acid) batteries, It can be employed in numerous applications in the fields of communications, In order to ensure that the power supply is guaranteed at all times, essential facilities are backed up with high performances battery systems.

Sudden breaks in the power supply are then no longer a problem. If the power suddenly fails, battery systems take over the emergency supply of power.

Specifications:

Cells per Unit	6
Normal Voltage	12V
Capacity	105Ah@10Hr-rate to 1.80V per cell@25ºC
Weight	Approx(32.5±3%kg)  (71.7lbs)
Maximum Discharge Current	1050A(5sec)
Internal Resistance	Approx. 4.5mΩ full charged @25ºC
Operating Temperature Range	Discharge: -20ºC~60ºC Charge:0ºC~50ºC Storage: -20ºC~60ºC
Nominal Operating  Temperature Range	25ºC±3ºC
Float Charging Voltage	13.7~13.9VDC/unit Average @25ºC
Maximum Charging Current	26.25A
Equalization and Cycle Service	14.4V~15.0VDC/unit Average @ 25ºC
Self Discharge	Self-discharge ratio less than 3%per month at 25ºC.
Terminal	Terminal F11
Container Material	ABS(UL94-HB)  *Flammability resistance of (UL94-V0) can be available upon request

1)Applications: UPS, Telecom System, Bank Security System, Railway, Solar Light system

2)General Features:
Environmental friendly;
Thick pasted plates with quality lead-tin-calcium alloy grids for long service life;
Centralized venting system for gas ventilation;
Plastics or rope handles for handling and installation convenience;
Front access terminals for easy and quick connection;
Low internal resistance;
Lower self discharge.

For more information, please contact us and welcome you!

Standby LONGWAY  FR series batteries
Battery Model	Nominal  Voltage     (V)	Nominal  Capacity    (AH)	Length		Width		Height		Total Height		Weight(5%)		Terminal
			In	mm	In	mm	In	mm	In	mm	Pound	Kg	Type	Position
6FM55FR	12	55	11.5	291	4.17	106	8.78	223	9.06	230	39.7	18.0	F9	E
6FM75FR	12	75	22.1	562	4.53	115	7.36	187	7.64	194	51.8	23.5	F10	E
6FM85FR	12	85	22.1	562	4.53	115	7.36	187	7.64	194	56.2	25.5	F10	E
6FM105FR	12	105	20.0	508	4.33	110	8.86	225	9.13	232	71.7	32.5	F10	E
6FM110FR	12	110	16.1	410	4.33	110	11.3	288	11.6	295	72.8	33.0	F10	E
6FM125FR	12	125	21.7	551	4.29	109	9.41	239	9.41	239	79.4	36.0	F11	E
6FM150FR	12	150	22.2	565	4.33	110	11.3	288	11.6	295	97.0	44.0	F11	E
6FM180FR	12	180	22.0	560	4.92	125	12.4	316	12.4	316	114.6	52.0	F11	E
