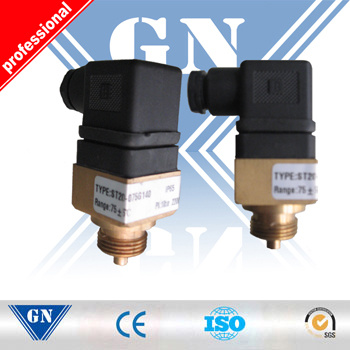

12V Temperature Switch

Prod Model:	CX
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measuring Range:	-200-600c
Output:	4-20mA
Probe:	PT100
Protection Class:	IP65
Housing Material:	Stainless Steel
Electrical Connection:	Terminals
Standard:	Standard
Certification:	CE
Principle:	Capacitive

Product Description

Specifications

 This equips with a PT100 probe whose resistance changes upon temperature changing. The resistance will then be converted to linear analog output. Applicable to both liquid and gas: Water distribution system. Hydraulic and pneumatic system. Cooling and heating system. Air-conditioning, Automation process

The PT100 series is all stainless steel structure, the use of high-precision pressure core and sophisticated compensation technology, has a strong earthquake, impact resistance and long-term stability, easy installation, wide range features to meet the needs of our customers. The products are widely used in industrial equipment, constant pressure water supply, medical equipment, process control and other fields.

Features
1.Easy to instal
2.Multiple measuring range selectable
3.Various probes selectable
4.Stainless steel housing, compact desig
5.Be able to work with other meters and controls


Dimensions


Technical Parameters

Measuring range:	-200^600ºC
Linearity:	<0.1%
Accuracy:	±0.2K + 0.2% of full span
Resolution:	0.1K
Pressure rating:	40 bar
Temperature effect:	0,1 K / 10 K
Response time:	t50, 2.3s / t90, 5.4s
Operating voltage:	12^30Vdc
No-load current:	Output 4^20mA: Signal current Output 0^10V: 8mA
Analog load resistance:	Output 4^20mA: 500Ω Output 0^10V: 5KΩ
Wiring protection:	Reversed polarity, overvoltage
Probe:	PT100
Ambient temperature:	-25^80ºC
Protection class:	IP65
Housing material:	Stainless steel
Wetted parts material:	Stainless steel 1.4571
Electrical connection:	Terminals
