| Prod Model: |
POE 36w |
| Input Voltage Range: |
100-240VAC |
| Output Voltage: |
9V/12VDC,15V/24V Poe Adjustable |
| Output Power: |
DC 12W,Poe 24W |
| Output Current: |
1A |
| Dimension(mm): |
108*178*29 |
| Weight: |
0.6kg |
| Charge Period: |
3-5 Hours |
| Backup Time: |
3-10 Hours |
| Warrenty: |
12 Months |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Brand: |
Stcb |
Product Description

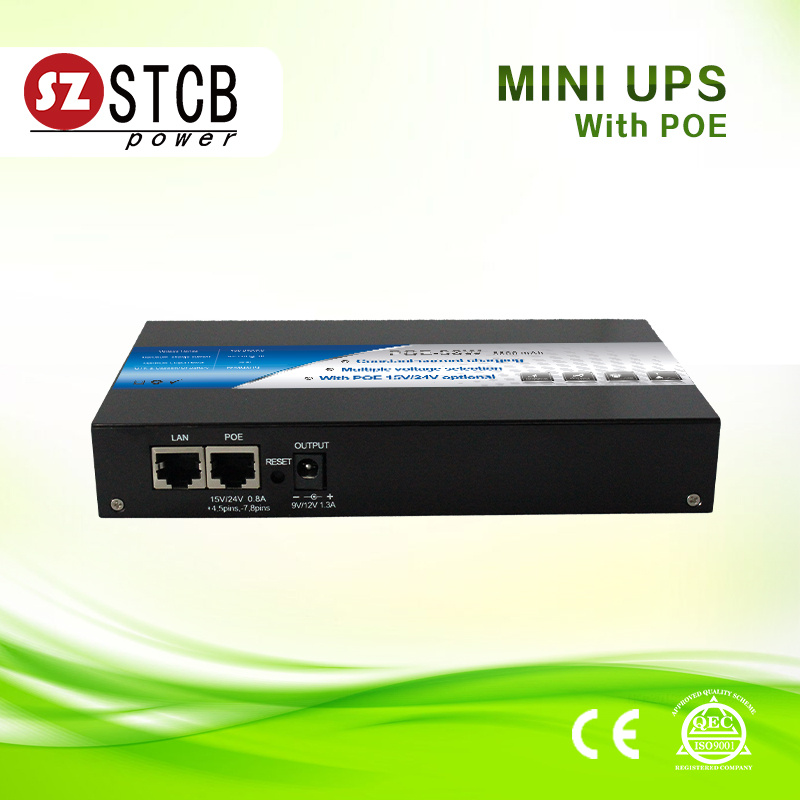

12V UPS Rechargeable Battery Micro UPS
Main Features:
1,High capacity lithium batteries,provide long backup to the loads.
2,High compatibility,suitable for most digital products in the market.
3,Power Over Ethernet(POE) can transmit the data and power at the same time to simplify wire set.
4,Intelligent circuit design with over-charging,over-discharging and short circuit protctions.
5,Built-in adapter allows wide AC viltage range(85-265Vac)
Product description:
This product not only can be used as DC ups to supply uninterruptible power to net work equipment like modem,router,CCTV etc.,but also can be used as portable power to charge smart phones and other digital device,which guarantees your devices to opperate continuously.Also add it POE power supply functions,15v /24v POE port can transfer data and power at same time.
Specification:
| Model | POE-36W |
| Input voltage | 100~240Vac/50-60Hz |
| Output | POE interface | DC interface |
| Output voltage(optional) | 15,24Vdc | 9,12Vdc |
| Output polarity | +4,5pins -7,8pins | -- |
| Transfer time | 0ms |
| Output power & current(in common) | 24W/1.0A | 12W/1.0A |
| Battery type | Lithium battery |
| QTY.&capacity of battery | 2200mah*4 |
| Charging period | Typical 2-3 hours |
| Unit dimension(mm) | 108*178*29 |
| Net weight(kg) | 0.62kg |
| Environment of performance | Temperature 0ºC~40ºC,Humidity 20%~90% |
| Noise level | Less than 40dB |
Our services:
1. We can be customized according to customer needs and find a good sample logistics, please provide the exact address, company name, phone us.
2. 1% pcb board is provided
3. if by container , you can let us know your own shipping agent or use our cooperated agent
4. 1year warrenty , if it is our quality problem , we will provide the parts for free .
FAQ:
Q1 : What is you advantages?
A1:
a).We are professional ups manufacturer for more than ten years and we have these staffs with rich
production and R&D
b) Excellent workers and skilled engineers
c).Our aims are to provide every customer high quality, reasonable price and excellent
service.
d)we can guarantee to send the goods on time. And also accept any transportation ways that
you require
Q2 : How do you control the production quality?
A2:
a) For materials, we have IQC departments and the IQC testing follow MIL-STD-105E standard
b) in production have 4 times function testing
c) all of our products with 100% burn-in testing
d) 100% QC testing before delivery
Q3 : Do you accept OEM/ODM?
A3 : ODM&OEM are warmly welcomed !!!
Q4 : what's your payment?
A4:
a) We can accept payment terms of T/T, Western Union, PayPal.
Samples and trial order accept PayPal ,T/T & Western Union. normal order accept T/T &Western Union
b) 30% ADVANCE DEPOSIT after buyer's confirmed payment, the balance should be paid before shipping when goods are ready.
SHENZHEN SMARTKEY POWER Co., Ltd / SHENZHEN SANTAK CASTLE POWER SUPPLY Co., Ltd. is a professional engaged in an uninterruptible power supply (UPS), small uninterruptible power supply, solar inverter, solar home system, valve control maintenance free lead-acid battery, voltage regulator design, products such as the production, sales and service company 16 years ago, and has a good reputation in the local market. Professional R & D team and professional export team. The United States and Germany, battery, UPS power supply technology and reserves of high quality and efficiency to adapt to market research and management team and the development of industry demand, universities and scientific research institutions established extensive and close relations of cooperation, research and development to ensure the sustainable development of enterprises and high-tech products.

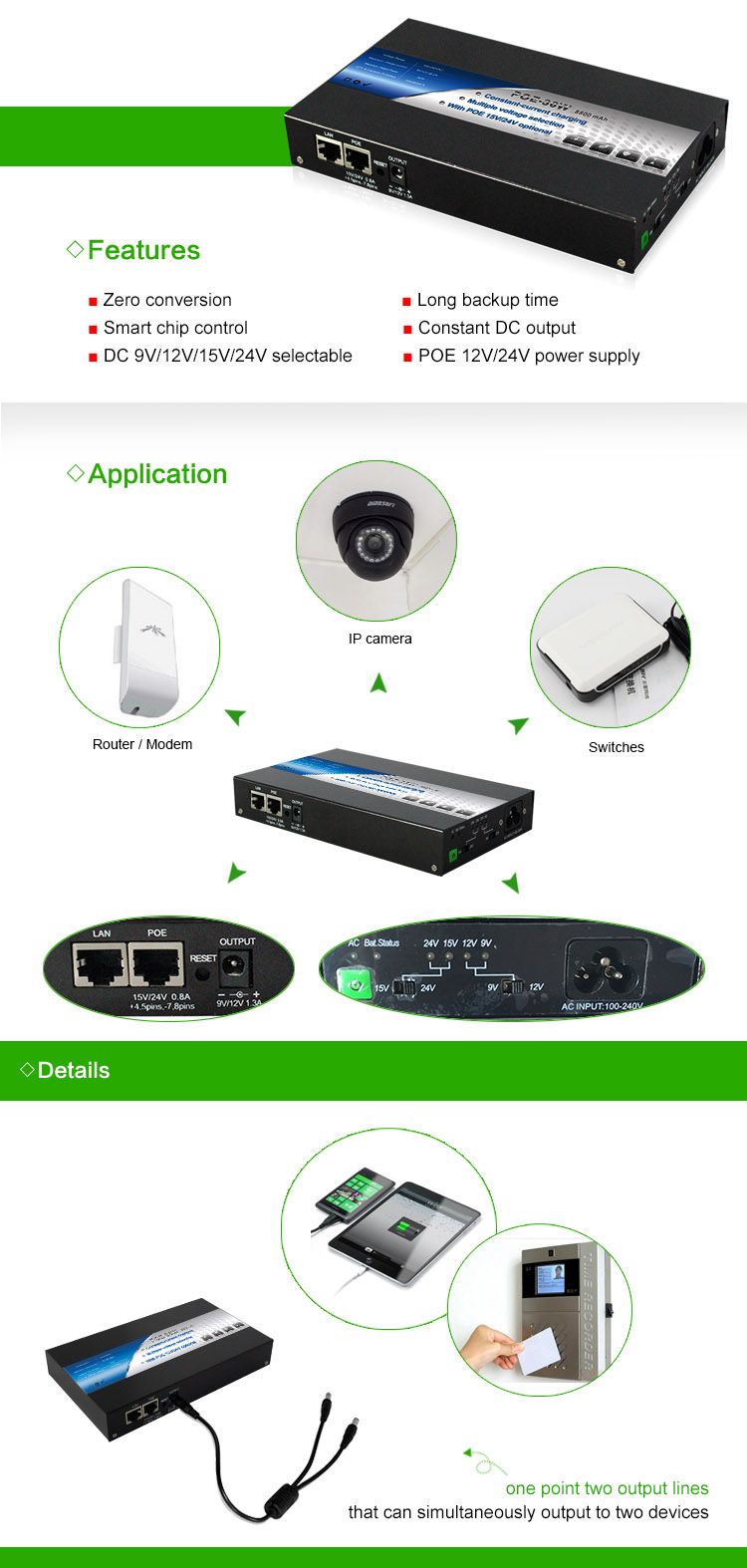

DC UPS is a backup protection power for network communication equipment. It can be widely applied to various low-power DC devices, such as routers, modems, IP cameras, closed-circuit television monitoring and POE switches, so as to ensure network communication in the case of blackout continuity, and also to charge mobile phones and tablet computers.
UPS has 16 years of experience in UPS production and sales, and has many rich experience in UPS pre-sale service after many years of operation and development in many parts of China and Europe, such as North and South America, South Asia, Middle East, Africa and many other fields. 16 years of industry struggle to build our technical team, at any time to provide customers with high quality power solutions and solutions.
The use of clean energy, such as inverting solar energy, is the trend of future energy development, and plays an important role in energy conservation and environmental protection. We have entered the solar home industry to produce high frequency and high frequency solar inverters to meet the needs of customers in different regions.
The annual sales volume in 2016 is about $4 million 500 thousand.
Shenk is still developing, is still in progress, not only is the company with the boss, and we have been in the staff. Along the way, people have experienced a lot of Shenk, forward, also has the growing stagnation; Family, also have a family of regret to leave; Have to climb the joy, also occasionally fall pain.
In this bumpy road, is the achievement of our dream journey shenk!
