| Prod Model: |
12V 1.3AH 12V7AH to 12V100AH, 12V200AH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

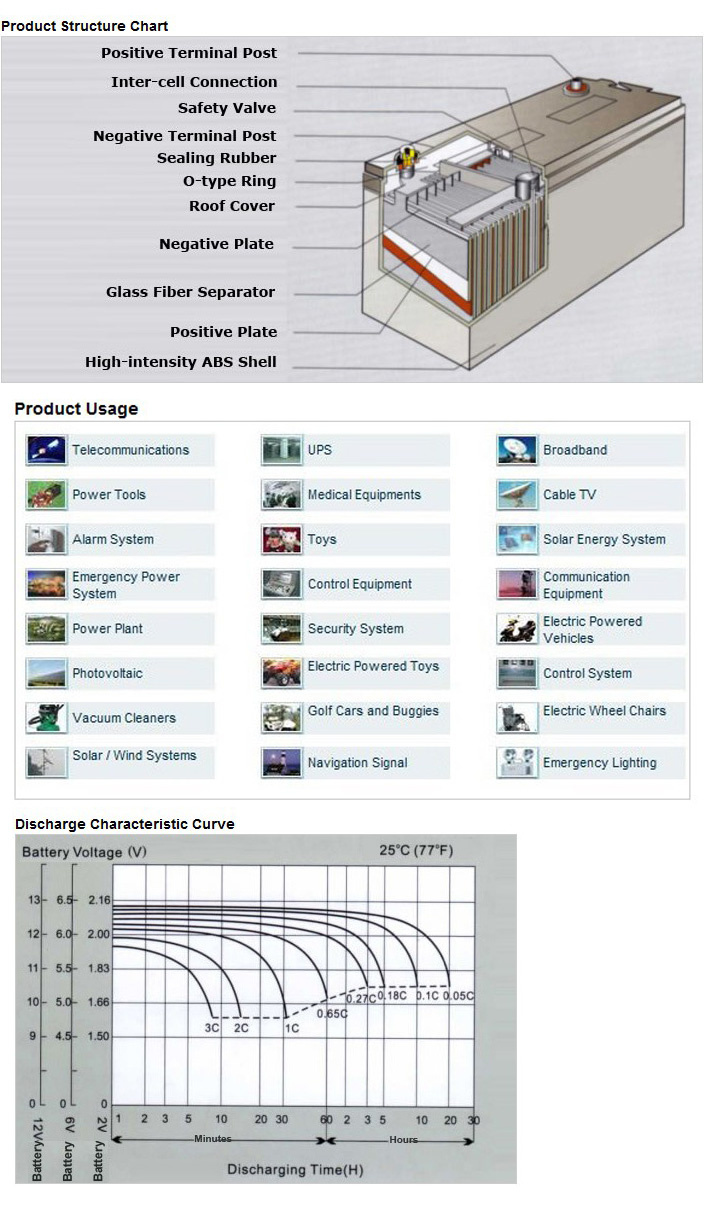

VRLA Battery Structure and Characteristic1. VRLA Battery Lead-Calcium six alloy sheet grating and coated mounding plate electrode: Big capacity and long life.
2.Lead-Tin multiple alloy bus bars: Small internal Resistance, corrosion resistance and can stand long term floating charging.
3. Advanced AGM septum: Absorbs optimum electrolytic without leaving dissociated liquid, full air cathode absorption and can be placed in any position.
4. ABS Engineering plastics shell: Firm and weather resistant.
5. Silicon-Fluorin rubber sealed safety cap: Safe and flameproof without leakage of corrosive gas and liquid.
6. Copper Plating Silver terminals: Small contact electrical resistance and rustproof.
7. electrolyte analysis: Low self-discharging.
8. Negative absorption type hermetically-sealed construction: No need to add distilled water and electrolyte by compounding accumulator gas into water without any maintenance.
9. Comprehensive Line-Up.
10. Economical
11. Maintenance Free
12. Deep Discharge Recovery
13. Suitable For Multiple Application
14. Design life: 3-5 years
VRLA Battery Applications1. Standby power of electric power company, Telecom Company, Bank, Stock System and Security Company
2. Standby power of all kinds of emergency illumination and system
3. Uninterruptible Power Supply(UPS)
4. Standby power of guard against theft and alarm system
5. Power source for Power-assist vehicle, electromotive tool and toys
6. Standby power of solar energy system
7. Cable Television
8. Control Equipment
9. Medical Equipment
More details
| VRLA Battery Model | Nominal
Voltage
(V) | Rated
Capacity
(AH) | Extermal Dimensions | Weight |
| Length | Width | Height | Total Height |
| mm | mm | mm | mm | kgs |
| SP12-0.8 | 12 | 0.8 | 96 | 25 | 62 | 62 | 0.3 |
| SP12-1.2 | 12 | 1.2 | 97 | 43 | 52 | 58 | 0.56 |
| SP12-1.2B | 12 | 1.2 | 97 | 48 | 51 | 57 | 0.62 |
| SP12-1.9 | 12 | 1.9 | 178 | 35 | 61 | 67 | 0.82 |
| SP12-2.1 | 12 | 2.1 | 150 | 20 | 90 | 90 | 0.67 |
| SP12-2.0 | 12 | 2 | 144 | 24 | 65 | 65 | 0.6 |
| SP12-2.3A | 12 | 2.3 | 178 | 35 | 61 | 67 | 0.91 |
| SP12-2.3B | 12 | 2.3 | 178 | 35 | 61 | 67 | 0.9 |
| SP12-2.3D | 12 | 2.3 | 182 | 24 | 62 | 62 | 0.71 |
| SP12-2.3E | 12 | 2.3 | 201 | 24 | 62 | 62 | 0.72 |
| SP12-2.3C | 12 | 2.3 | 70 | 47 | 98 | 103 | 0.79 |
| SP12-2.6 | 12 | 2.6 | 70 | 47 | 98 | 103 | 0.82 |
| SP12-2.5 | 12 | 2.5 | 104 | 48 | 70 | 70 | 0.92 |
| SP12-2.6B | 12 | 2.6 | 178 | 34 | 60 | 71 | 1 |
| SP12-2.7A | 12 | 2.7 | 151 | 45 | 52 | 58 | 0.91 |
| SP12-2.7B | 12 | 2.7 | 104 | 48 | 70 | 70 | 0.92 |
| SP12-2.8A | 12 | 2.8 | 67 | 67 | 97 | 103 | 1.2 |
| SP12-2.8B | 12 | 2.8 | 132 | 33 | 98 | 104 | 1.2 |
| SP12-2.8 | 12 | 2.9 | 79 | 56 | 99 | 105 | 1.2 |
| SP12-3.2 | 12 | 3.2 | 134 | 67 | 61 | 67 | 1.3 |
| SP12-3.5 | 12 | 3.4 | 134 | 67 | 61 | 67 | 1.38 |
| SP12-4.2L | 12 | 4.2 | 195 | 47 | 70 | 76 | 1.55 |
| SP12-4.5L | 12 | 4.5 | 195 | 47 | 70 | 76 | 1.6 |
| SP12-3.5A | 12 | 3.5 | 90 | 70 | 101 | 107 | 1.35 |
| SP12-4.0 | 12 | 4 | 90 | 70 | 101 | 107 | 1.4 |
| SP12-4.5 | 12 | 4.5 | 90 | 70 | 101 | 107 | 1.45 |
| SP12-5.0 | 12 | 5 | 90 | 70 | 101 | 107 | 1.55 |
| SP12-5.5 | 12 | 5.5 | 90 | 70 | 101 | 107 | 1.7 |
| SP12-5.0B | 12 | 5 | 140 | 48 | 102 | 103 | 1.6 |
| SP12-5.0C | 12 | 5 | 151 | 65 | 94 | 100 | 1.72 |
| SP12-6.0A | 12 | 6.2 | 151 | 65 | 94 | 100 | 2.1 |
| SP12-7E | 12 | 6.7 | 151 | 65 | 94 | 100 | 2.1 |
| SP12-7.0 | 12 | 7 | 151 | 65 | 94 | 100 | 2.2 |
| SP12-7.2 | 12 | 7.2 | 151 | 65 | 94 | 100 | 2.3 |
| SP12-7.5 | 12 | 7.5 | 151 | 65 | 94 | 100 | 2.4 |
| SP12-8.0 | 12 | 8 | 151 | 65 | 94 | 100 | 2.45 |
| SP12-9G | 12 | 9 | 151 | 65 | 112 | 116 | 2.8 |
| SP12-10 | 12 | 10 | 151 | 98 | 95 | 101 | 3.4 |
| SP12-12 | 12 | 12 | 151 | 98 | 95 | 101 | 3.65 |
| SP12-14 | 12 | 14 | 151 | 98 | 95 | 101 | 4 |
| SP12-15A | 12 | 15 | 160 | 76 | 159 | 162 | 4.5 |
| SP12-15 | 12 | 15 | 181 | 77 | 167 | 167 | 4.8 |
| SP12-17 | 12 | 17 | 181 | 77 | 167 | 167 | 5.1 |
| SP12-18 | 12 | 18 | 181 | 77 | 167 | 167 | 5.15 |
| SP12-20 | 12 | 20 | 181 | 77 | 167 | 167 | 5.5 |
| SP12-24 | 12 | 24 | 166 | 175 | 125 | 125 | 8.2 |
| SP12-26 | 12 | 26 | 166 | 175 | 125 | 125 | 8.5 |
| SP12-28 | 12 | 28 | 166 | 175 | 125 | 125 | 9 |
| SP12-24H | 12 | 24 | 165 | 125 | 175 | 182 | 8.3 |
| SP12-28H | 12 | 28 | 165 | 125 | 175 | 182 | 9.3 |
| SP18-7.0 | 18 | 8 | 151 | 102 | 100 | 100 | 4 |
| SP12-31 | 12 | 31 | 195 | 130 | 159 | 180 | 9.8 |
| SP12-33 | 12 | 33 | 195 | 130 | 159 | 180 | 10.5 |
| SP12-35 | 12 | 35 | 195 | 130 | 159 | 180 | 11.3 |
| SP12-34 | 12 | 34 | 196 | 165 | 175 | 182 | 12.1 |
| SP12-40 | 12 | 40 | 196 | 165 | 175 | 182 | 13.4 |
| SP12-45 | 12 | 45 | 196 | 165 | 175 | 182 | 13.7 |
| SP12-50 | 12 | 50 | 229 | 138 | 208 | 227 | 17.8 |
| SP12-55 | 12 | 55 | 229 | 138 | 208 | 227 | 18.2 |
| SP12-56 | 12 | 56 | 259 | 169 | 208 | 227 | 21.5 |
| SP12-60 | 12 | 60 | 260 | 168 | 178 | 200 | 20.2 |
| SP12-65 | 12 | 65 | 351 | 165 | 174 | 184 | 26 |
| SP12-70 | 12 | 70 | 259 | 169 | 208 | 227 | 23.5 |
| SP12-72 | 12 | 72 | 307 | 169 | 211 | 227 | 25.5 |
| SP12-80 | 12 | 80 | 350 | 166 | 178 | 178 | 25.1 |
| SP12-90 | 12 | 90 | 307 | 169 | 211 | 227 | 27.3 |
| SP12-90C | 12 | 90 | 329 | 171 | 214 | 243 | 30 |
| SP12-100 | 12 | 100 | 335 | 170 | 205 | 213 | 32.5 |
| SP12-100B | 12 | 110 | 335 | 170 | 205 | 213 | 33.5 |
| SP12-110A | 12 | 110 | 409 | 177 | 225 | 225 | 35 |
| SP12--110B | 12 | 110 | 307 | 169 | 211 | 227 | 30.6 |
| SP12--110C | 12 | 110 | 410 | 175 | 235 | 235 | 38.5 |
| SP12-120 | 12 | 120 | 410 | 175 | 235 | 235 | 40 |
| SP12-134 | 12 | 134 | 341 | 172 | 280 | 288 | 42.5 |
| SP12-150 | 12 | 150 | 487 | 166 | 230 | 230 | 48 |
| SP12-160 | 12 | 160 | 530 | 209 | 214 | 244 | 47 |
| SP12-200 | 12 | 200 | 493 | 240 | 210 | 235 | 65 |
| SP12-250 | 12 | 250 | 521 | 269 | 220 | 249 | 73.8 |
Powerful, rechargeable, and reusable-SUPER POWER Industrial-empowering customers since 1992. As a prominent Chinese manufacturer, we have established ourselves as a hi-tech enterprise that operates on an international scale. Our company specializes in the development, production, and distribution of lead plates, lead-acid batteries and Folding Electric Bike.
Our selection of lead-acid batteries includes VRLA battery, motorcycle battery, car battery, golf cart battery, electric vehicle battery, electric tricycle battery, OPzV/OPzS/PzS/PzV/PzB tubular gel battery, etc. We offer the motorcycle battery in specifications such as AGM sealed maintenance-free, standard dry-charged, high performance dry-charged, and dry-charged maintenance-free. The car battery is available in both dry-charged and sealed maintenance-free models. Please ask us about our OEM services!
In 2010, we joined the global initiative for energy conservation and emission reduction by introducing energy-saving products folding electric bike with lithium battery.
SUPER POWER Industrial has more than 3000 skilled workers, of whom there are over 300 professional developers and QA engineers. We operate 5 domestic production bases over a combined area of 400, 000 square meters. Individual R&D centers are maintained for the continual development of our 3 main product series. We own lead plates production and 38 production lines for battery products and 5 for Folding Electric Bike.
Ingenuity and high production standards have propelled us onto the international stage. Strict quality control is enforced by our dedicated quality assurance center. We have successfully passed the certifications of standards such as ISO9001 and ISO14001. Our products are certified by CE and UL. We have also obtained regions-specific certificates such as the Iranian COI and Nigerian SOCAP. Our products are distributed worldwide to more than 90 countries and regions including North America, South America, Europe, Southeast Asia, Middle East, Africa, etc.
