| Prod Model: |
TL1213 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Tl1213 |
| Voltage: |
12V |
| Capacity: |
1.3ah |
| Dimension: |
97*43*52/58mm |
| Designed Life:3 Years: |
3years |
| Weight: |
0.55kg |
| Color:Grey Or Black: |
Grey , Black or Other |
| Standby Use: |
13.6-13.8V |
| Cycle Use: |
14.5-14.9V |
| Internal Resistance: |
120mohms |
| Type: |
Lead-Acid Batteries |
| Usage: |
Lighting Battery |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
Medium Discharge Rate |
| Shape: |
Square Battery |
| Nominal Voltage: |
12V |
Product Description

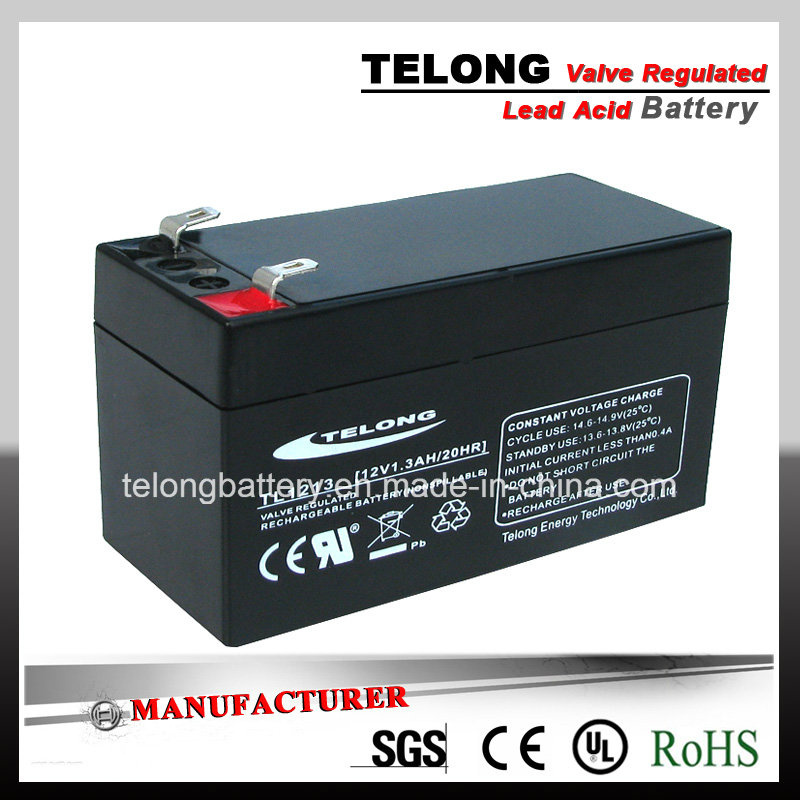

12V1.3AH Lead Acid Battery
1. Product parameters
Model: TL1213
Certificate: CE, UL, RoHS, MSDS, UN38.3
Voltage: 12V
Capacity: 1.3Ah
Dimension: 97× 43× 52/58mm(Length× Width× High/Total High)
Net weight: 0.55± 0.01kg
Quantity per carton: 20PCS
Gross weight per carton: 12.5kg
2. Applications:
Remote Switching Control equipments
Communication systems Portable Lights
Alarm systems Power tools
Medical equipments Electric toys
Fire and lighting for Emergency systems
Uninterruptible power supplies (UPS) and stand-by power for computers
3. Features
(1) When it is safe surroundings, maintenance free, and add water is not need.
(2) Equalization charges are not required and cycle or standby (or float) use.
(3) Long life for 3 year.
(4) low resistance and energy output is more remarkable.
(5) Fully enclosed (not liquid leakage, no acid gas spill).
(6) Low self-discharge rate.
4. Welcome to visit our website
http://www.sztlg.com/
http://tlgbattery.en.made-in-china.com/
5. Others:
1, OEM orders are available
2, Superior quality and cost-performance ratio
3, Tags, plugs and connectors are available
4, We could design and produce vrla battery for customized configurations is available (we could design and develop Lead acid battery according to your product work performance & structure apprearance)
| Batterymodel | TL1213 |
| Nominal voltage | 12V |
| Number of cell | 6 |
| Design Life | 3 years |
| Capacity 77ºF (25ºC) | 20 hour rate (0.065A,10.5V) | 10 hour rate (0.115A,10.5V) | 5 hour rate
(0.22A,10.5V) | 1 hour rate (0.81A,9.6V) |
| 1.3Ah | 1.15Ah | 1.1Ah | 0.81Ah |
| Dimensions | Length | Width | Height | Total Height |
| 97±1mm | 43±1mm | 52±1mm | 58±1mm |
| Approx. weight | 0.55Kg |
| Internal resistance | Full charged at 77ºF(25ºC):120mOhms |
| Self discharge 68ºF(20ºC) | Capacity after 3 month storage | Capacity after 6 month storage | Capacity after 12 month storage |
| 90% | 80% | 60% |
| Capacity affected by temperature(20 hour rate) | 104ºF(40ºC) | 77ºF(25ºC) | 32ºF(10ºC) | 5ºF(-15ºC) |
| 102% | 100% | 85% | 65% |
Operating temperature
range | Discharge | Charge | Storage |
| -20~60ºC | -10~60ºC | -20~60ºC |
| Max. discharge current 77ºF(25ºC) | 19.5A(5s) |
| Short circuit current | 65A |
| Charge(Constant Voltage) | Float: 4.54~4.60V/77ºF(25ºC) |
Cycle:4.85~4.90V/77ºF(25ºC)
Max Current:0.325A |
