| Prod Model: |
FG035 |
| Item Name: |
Lead Acid Battery |
| Maintenance Type: |
Free |
| Size: |
508*110*231mm |
| Weight: |
33 Kg/PCS |
| Material: |
Fire Proof Case |
| Warranty: |
3 Years |
| Terminal Type: |
Copper/Lead |
| Working Temperate: |
-15 to 45 |
| Certificate: |
Ce, UL.ISO.PV |
| Cell: |
6 |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

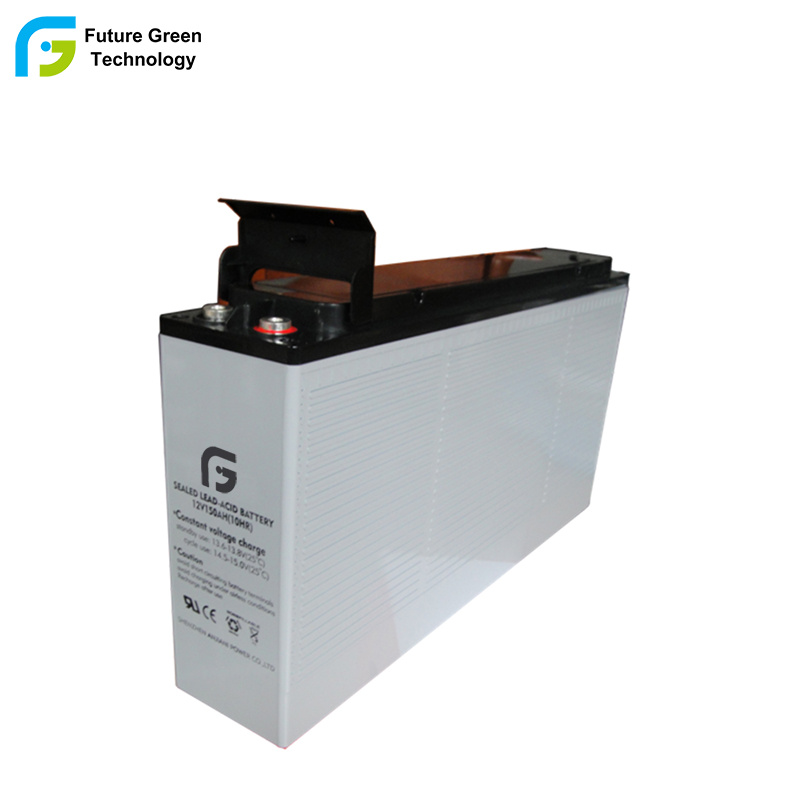

Future Green 12V100AH Front Terminal Telecom Sealed Valve Regulated Lead Acid BatterySealed lead-acid rechargeable battery (VRLA battery) is leak-proof and maintenance free.
The Superiority of VRLA battery is derived from its uniquely efficient oxygen recombination technology. The oxygen evolved from the positive plates diffuses through the micro porous glass fiber mat to the negative plates where it is changed back to water by recombination reaction, eliminating the need for water addition .The result is a maintenance free battery
General Feature:1. Long battery life, high capacity, Superior of recovery after discharge.
2. ABS material: increase the strength of battery container. (Flame-retardant ABS is optional)
3. High purity raw material: ensure low self discharge rate.
4. Silver- coated copper terminals, brass insert terminals and lead terminals improve the electric conductivity.
5. Pb CaSn alloy for plate grids: less gassing, less self-discharging high quality.
6. Maintenance-Free Operation
7. Low Self-Discharge
APPLICATIONS for Front Access Battery:1. Suitable for 19inch and 23inch power cabinet.
2. Used in telecom system including exchange board, microwave station, mobile base station, data center, radio and broadcast station.
3. Great for power supply system of private network or LAN.
4. Used as signal system battery and emergency lighting system battery.
5. Perfect for EPS and UPS system.
6. Solar and wind system
Product parameters:| Characteristics | |
| Nominal Voltage | 12V |
| Nominal Capacity (10 hour rate) | 100Ah |
Capacity
25°C(77°F) | 10 hour rate (10A) | 100Ah |
| 3 hour rate (25A) | 86.0Ah |
| 1 hour rate (55A) | 63.5Ah |
| Internal Resistance | Full Charged Battery 25°C(77°F) | ≤8mΩ |
| Float Life | 25°C(77°F) Float charge at 13.8V | About 5 Years |
Capacity affected by Temperature
(10 hour ) | 40°C (104°F) | 102% |
| 25°C (77°F) | 100% |
| 0°C (32°F) | 85% |
| -15°C (5°F) | 65% |
Self-Discharge
25°C(77°F) | Capacity after 3 month storage | 90% |
| Capacity after 6 month storage | 80% |
| Capacity after 12 month storage | 62% |
| Charge (Constant Voltage) 25°C(77°F) | Cycle | Initial Charging Current Less than 30A
Voltage 14.6-15.0V |
| Float | Voltage 13.5-13.8V |
Battery Use and Maintenance:
1) Please use constant-voltage charge.2) In floating charge, the voltage is 2.23 to 2.27 per unit cell.
3) In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
4) Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
5) Please do not use it near the heat source and open flame.
6) Please keep it at low temperature. Please change it while there is liquid leaking or damage.Front terminal battery series: | Item Number | Size (mm) | Weight (kg) |
| SM12V55Ah-F | 277*106*222.5*222.5 | 16 |
| SM12V75Ah-F | 562*114*188*188 | 18 |
| SM12V100Ah-F | 394*109*286*286 | 33 |
| SM12V105Ah-F | 507*109*223*238 | 35 |
| SM12V150Ah-F | 551*109*288*288 | 46 |
| SM12V150Ah-F | 551*105*288*288 | 45 |
| SM12V180Ah-F | 560*125*316*316 | 52 |

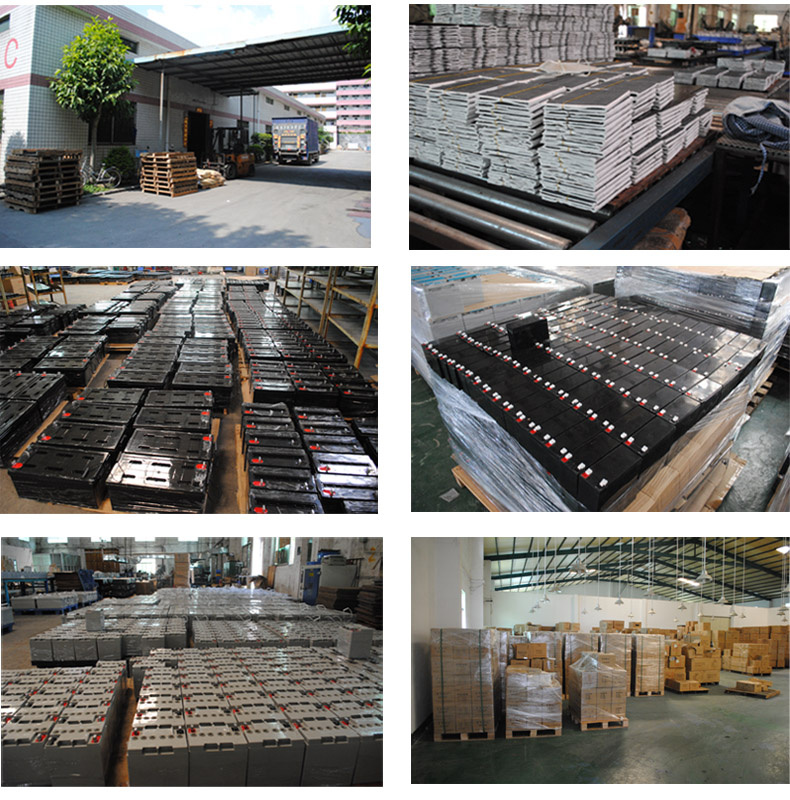

Factory Show:
Packing Details: Normally packing: 1pc/5pcs/8pcs/10pcs per carton
Individual packing requirement is acceptable.
Payment Terms:| Payment Terms | T/T | EXW | 30% T/T in advance, paid the balance before shipment |
| FOB |
| CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L |
| CIF |
| L/C | L/C amount above 50,000 usd, we can accept L/C at sight |
| West Union | Amount lower than 5000usd |
| Paypal |
| Delivery time | 15 working days after receiving payment for one container |
FAQ:
Q1: How to choose a right battery?
A1:Tell us your demand, then our sales will recommend a suitable battery to you.
Q2: How about the delivery time?
A2: 7 days for sample; 15 days for bulk order.
Q3: What is the warranty of lead acid battery?
A3: 2 years warranty on FGET-Solar product.
Q4: How to solve the technical problem?
A4: 24 hours after-service consultancy just for you and to make your problem to solve easily.
