| Prod Model: |
Gel Battery CG12-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
L*W*H=329*173*210mm |
| Weight: |
29kg / Gel Battery |
| Maximum Power: |
Gel Battery 300ah |
| Warranty: |
3 Years |
| Expected Cycle Time: |
15-20 Years |
| Delivery Time: |
7 Days |
| Export Markets: |
Global |
| Brand: |
Cspower/OEM |
| Proof: |
Water Proof, Non Spillable |
| Terminal: |
Gel Battery Screw Terminals |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Shape: |
Gel Battery |
Product Description

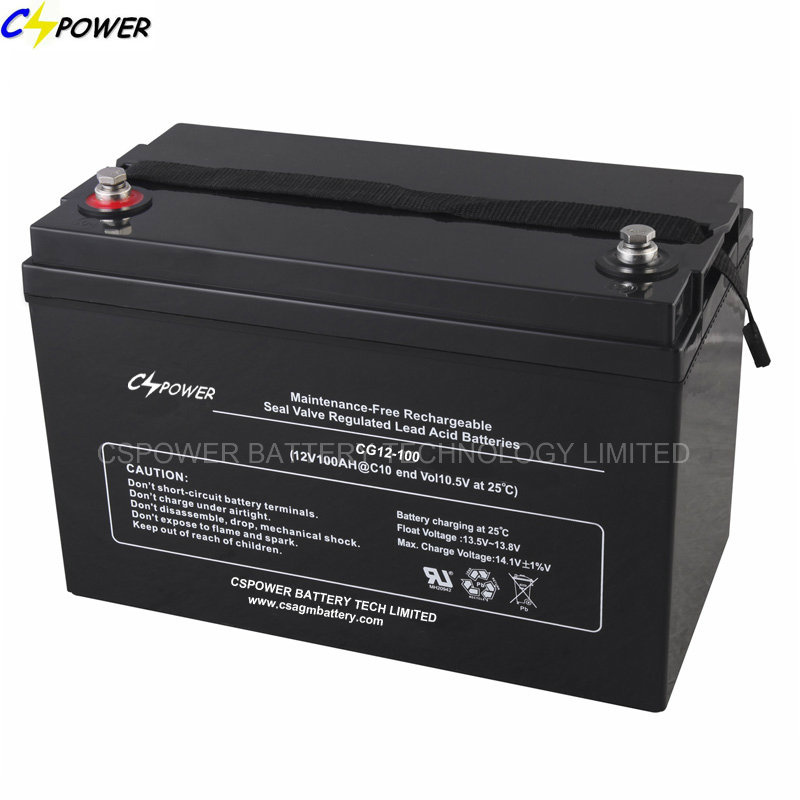

12V100ah Gel Battery with CE ISO Certificate
Solar Gel battery Gel Battery series Detailed Product Description
Solar Gel battery Gel Battery series shows some distinctive advantages over flooded battery or AGM battery, such as super thermal stability, high deep discharge capability, good recovery from deep discharge, even if the Gel battery is left discharged for three days, it will recover to 100% of capacity.
With the above-mentioned advantages, the gel battery has long service life, specially suitable for motive power applications, such as golf trailer,sruubber, folklift, etc. The deep discharge cycles increased 50% as compared with the AGM battery.
12V100ah Gel Battery with CE ISO Certificate Characteristics
1. Sealed free maintenance deep cycle battery 12V100Ah 200Ah 250Ah 300Ah
2. GEL solar battery
3. OEM/ODM free charge
4. Warranty 3years free replacement
5.The batteries use silica gel to immobilize the electrolyte inside the battery.
6.The proven silica gel technology improves battery cycle life and performance at extremely cold ambient temperatures.
7.The deep discharge cycles is increased by 50% as compared with the AGM battery.
Solar Gel Battery 12V100Ah 3year warranty Advanced Features
1. Environmentally friendly
2. Completely Maintenance-Free
3. Non-Spillable construction design.
4. Wide Operating Temperature Range(-20°C~+60°C)
5. Longer Life(20years designed life)
6. Explosion Proof
7. Valve Regulated & High Discharge Rate Capability
8. Low Self Discharge
9. Independent of Position
10. Ease of Shipment
11. No need of balanced charge or boost
12. No Memory
12V100ah Gel Battery with 15years life Applicition
1,Solar & Wind power systems
2,Fire & security systems
3,Uninterruptible power supplies
4,Golf cart, Electric vehicle
5,Electric powered bicycle and wheelchairs
6,Marine equipment
7,Communication equipment
8,Power tools
9,Telecommunication systems
Our Advantage
1. As a 11 years history factory, Incorporated in 2003.
2. As a UL, CE, ISO9001, ISO14001 company, we believe that our battery quality can definitely satisfy you.
3.We focus on quality, never use faulse gel and recycle lead.
4.All production lines in our factory are automatic and imported from Germany, and produce lead plates by ourselves in order to control quality and lowest save cost in order to give best competitive price for customers.
Solar power batteries Gel Battery 12V100Ah SPECIFICATIONS |
Nominal Voltage |
12 V Gel Battery |
Rated Capacity (10 hour rate) |
100 AH |
Dimensions
(Length*Width*Height*Total Height )/mm |
331*173*218*230 mm |
Weight Approx |
31kgs / Gel Battery |
|
CHARACTERIESTICS |
Capacity
25 °C |
10 Hour rate |
100AH |
3 Hour rate |
80 AH |
1 Hour rate |
65 AH |
Internal Resistance |
Fully charged battery at 25°C |
4.2m Ω |
Capacity affected by temperature
(20 hour rate) |
40 °C
25 °C
0 °C
-15 °C |
102%
100%
85%
65% |
Self-Discharge
At 25°C |
Capacity after 3 month storage
Capacity after 6 month storage
Capacity after 12 month storage |
91%
82%
64% |
Terminal Type |
T10 or T16 Gel Battery |
Charge
(Constant Voltage) |
Cycle use |
Initial Charging Current less than 40 A
Voltage 14.40~15.00V |
Float use |
Voltage 13.50~13.80V |
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.
Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
