12V100ah LiFePO4 Lithium Battery with Communication Interface

Name: 12V100ah LiFePO4 Lithium Battery with Communication Interface
Brand: all-electronics-online.com
SKU: 805222555
Availability: InStock
Rating: 4.4 (65 reviews)

Price:	US $ 837.6/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BT-P12100F-6-I
Model:	Lithium LiFePO4 Battery 12V100ah
Dimension:	442385142mm
Weight:	38kgs
Color:	Black and Dark Grey
Warranty:	3 Years
Design Life:	20 Years
Delivery Time:	15-20days
Capacity:	12V 100ah
Certificate:	Ce, Un38, Un38.3
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Electrolyte:	Organic Solvent + Lithium Salt + Additives
Rated Capacity:	Lithium LiFePO4 Battery 12V100ah
Usage:	Solar and Wind System

Product Description

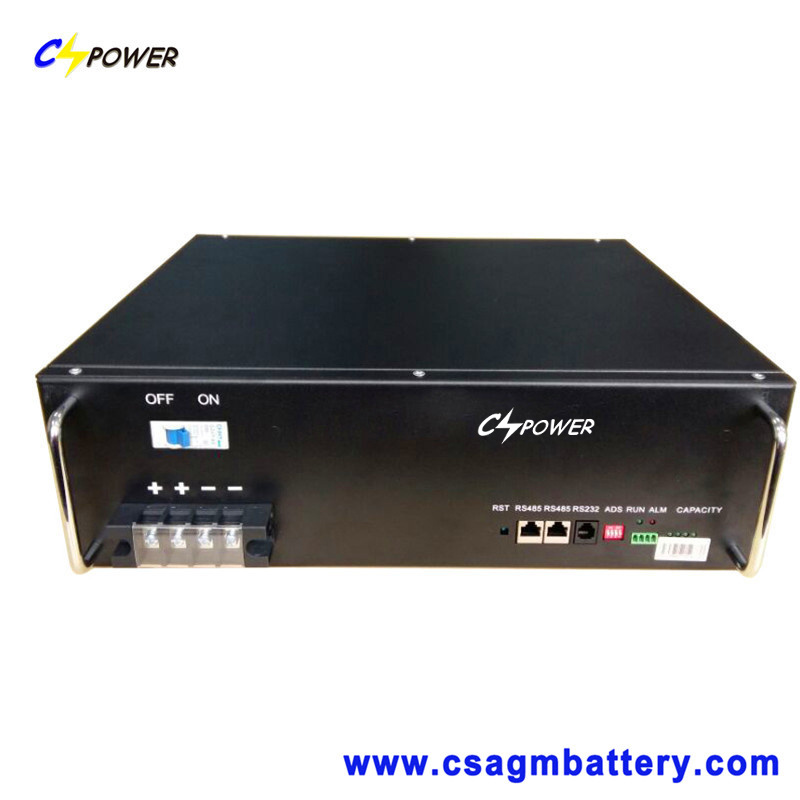

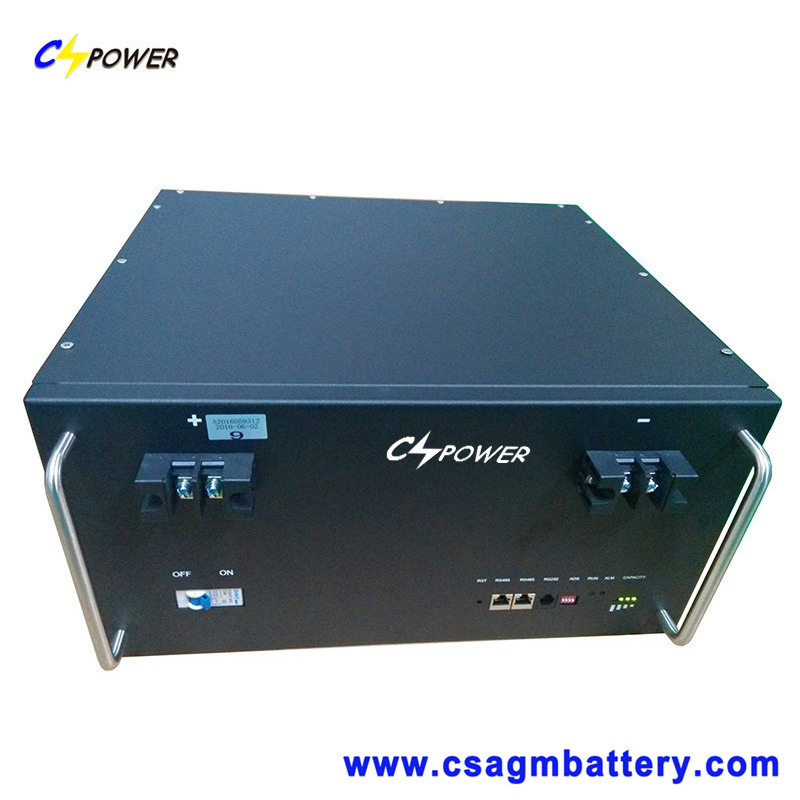

12v100AH LiFePO4 Lithium Battery with Communication Interface

Model	Dimension (mm)	Weight(kgs)	Color
LiFePO4 Lithium Battery 12v100AH	442385132	38kgs	Black and Dark Grey

Characteristics

Lithium Iron Phosphate (LiFePO4)Battery, the longest life among battery field.

Voltage: 12V, 24V, 48V
Capaicty: upto 12V200Ah, 24V100Ah, 48V100Ah.

Designed floating service life: over 20years @25ºC

Cyclic usage: 100%DOD, >2000 cycles

80%DOD, >3000 cycles

Features for CSPOWER Lithium battery

Due to the demand for energy saving strategies, CSPOWER delivers a full range of battery power systems with multiple nominal voltages (12V/24V/48V/240V/etc.). It is smaller in size and lighter in weight, but it has longer cycle life, temperature durability is stronger, and energy storage is more efficient. With the accurate and reliable battery management system (BMS), our lithium battery power system is a better solution for achieving highest efficiency and reliability. After years of practice, we have the most extensive experience in backup power supply in the industry, and we will continue to provide the best battery products.

Advantages for CSPOWER LiFePO4 Battery

1. Energy density is high. The volume and weight of lithium battery is 1/3 to 1/4 of the traditional lead acid battery with the same capacity.
2. Energy conversion rate is 15% higher than that of a traditional lead acid battery, the advantage of energy saving is obvious. Self-discharge rate < 2% per month.

3. Broad temperature adaptability. Products perform well at a temperature of -20°C to 60°C, without air conditioning system.

4. Cycle durability for a single cell is 2000 cycles, which is 3 to 4 times more than the cycle durability of a traditional lead acid battery.

5. Higher discharge rate, faster charging and dischargingWhen there is a need for backup power supply for a period of 10 hours or less, we could reduce up to 50% of the capacity configuration, comparing to lead acid battery.

6. High security. Our lithium battery is safe, electrochemical materials are stable, no fire or explosion under extreme conditions such as high temperature, short circuit, drop impact, piercing, etc

7. Optional LCD digital display. Optional LCD digital display can install in the front panel of battery and show battery voltage, capacity, current information, etc.

BMS of LiFePO4 Battery

Overcharge detection function

Over discharge detection function

Over current detection function

Short detection function

Balance function

Temperature protection

Application

Electric Vehicles,electric mobility

Solar/wind energy storage system

UPS, backup power

Telecommunication

Medical equipment

Lighting and so on

Sepcificaion of LifePO4 battery (19 inch)

MODEL	Voltage	Capacity	Dimension (mm)			Weight (kg)
MODEL	(V)	(Ah)	Length	Width	Height	(±3%)
BT-B1240F-6-I	12	40	442	385	44	10
BT-B1250F-6-I	12	50	442	385	44	12
BT-B1280F-6-I	12	80	442	385	88	17.5
BT-B12100F-6-I	12	100	442	385	88	20
BT-B12200F-6-I	12	200	442	385	132	38
BT-P1260F-6-I	12	60	442	250	88	12
BT-P12100F-6-I	12	100	442	385	88	19
BT-P12200F-6-I	12	200	442	385	132	38
BT-B2410E-6-I	24	10	442	310	44	8
BT-B2420E-6-I	24	20	442	310	44	13
BT-B2460E-6-I	24	60	442	385	88	22
BT-B24100E-6-I	24	100	442	385	132	38
BT-P2420E-6-I	24	20	442	310	88	13
BT-P2460E-6-I	24	60	442	385	88	22
BT-P24100E-6-I	24	100	442	385	132	38
BT-B4810X-6-I	48	10	442	385	44	8
BT-B4820X-6-I	48	20	442	385	44	12
BT-B4830X-6-I	48	30	442	385	88	18
BT-B4840X-6-I	48	40	442	385	88	25
BT-B4850X-6-I	48	50	442	385	132	35
BT-B48100X-6-I	48	100	442	400	222	63
BT-P4810X-6-I	48	10	442	385	44	9
BT-P4820X-6-I	48	20	442	385	44	14
BT-P4830X-6-I	48	30	442	385	88	20
BT-P4840X-6-I	48	40	442	385	88	28
BT-P4850X-6-I	48	50	442	385	132	35
BT-P4875X-6-I	48	75	442	385	176	45
BT-P48100X-6-I	48	100	442	400	222	63

Remarks: BT-P series Lithium -Ion battery with communication interface

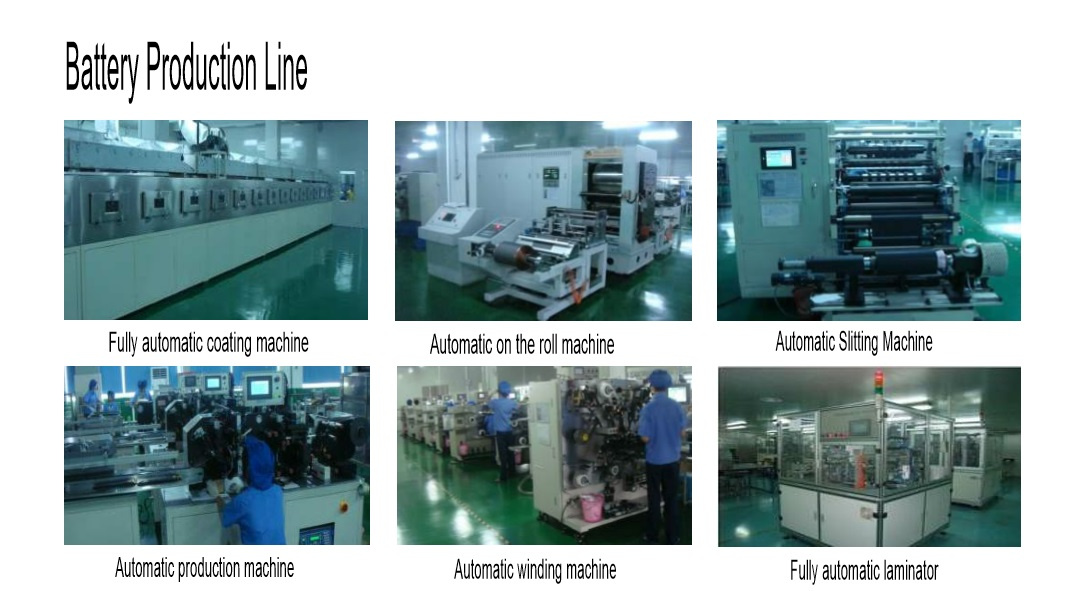

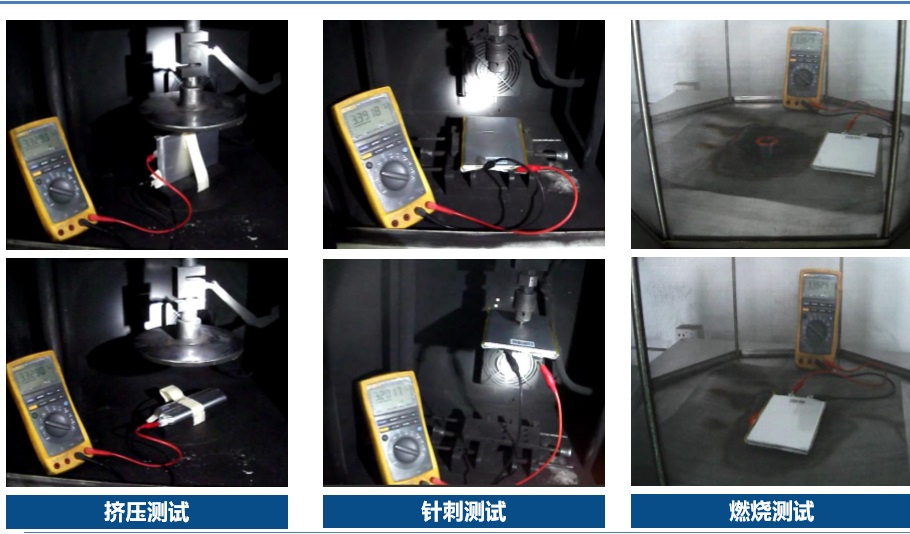

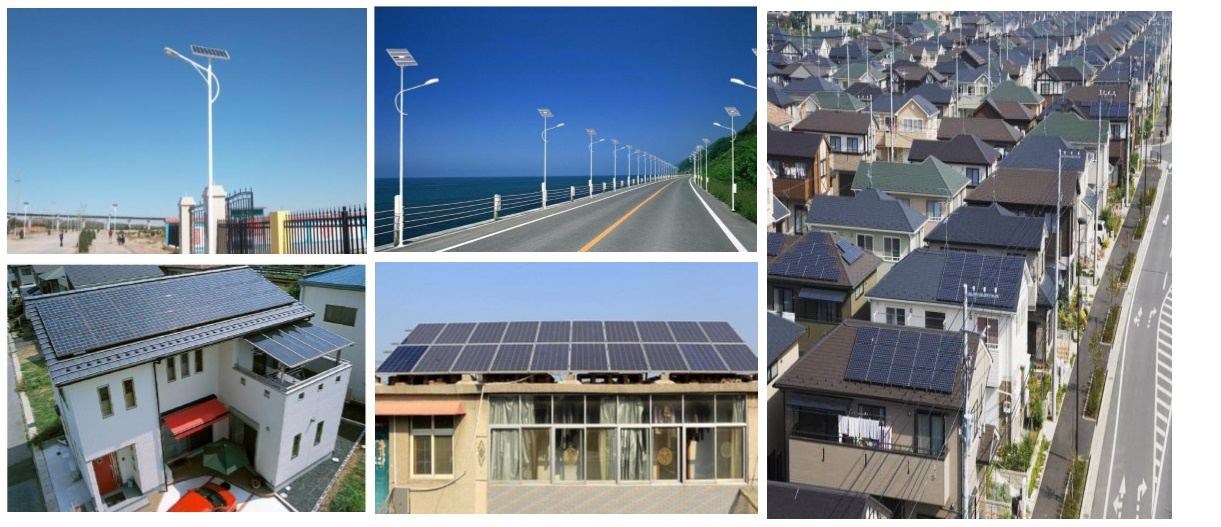

Production And Application pictures

CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.

Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.

Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.

CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.

With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.

In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.

CSPOWER is competent at ODM and OEM orders according to customers realtime request.

Please come to us for your quality battery and solar partner in China today.
