| Prod Model: |
6FM100S(12V100AH/10HR) |
| Weight: |
30.5kgs |
| Terminal: |
F11 |
| Colour: |
Black/Grey |
| Certificate: |
Ce,UL,SGS,MSDS,RoHS,ISO14001,ISO9001,Ohsas18001 |
| Type: |
Lead-Acid Batteries |
| Usage: |
Solar System |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
Solar battery series is specially designed for solar system & wind power system. According the condition of applications, Longway battery spent more than three year to develop and research S series. S Series performs excellent when it is recharged in high ambient temperature, discharge in low ambient temperature. S Series has good capacity retention under the poor recharging condition.
Product Standards
You can expect our batteries meet with the standards JIS, DIN, IEC60896-21/22. We have obtained ISO9001 & ISO14001 certification. We have obtained UL approval (MH46789) for all types of batteries. We have obtained CE approval for all types of batteries.
General Features
1,Good cyclic property. Enhanced overcharge endurance and over discharge recovery property.
2,High purity raw material: ensure low self discharge rate
3,Using oxygen recombination technology: maintenance-free
4,Lower acid density, excess of electrolyte and larger distance between plates to keep battery at low temperature and slow down plate grid corrosion speed
5,ABS material: increase the strength of battery container. (Flame-retardant ABS is optional)
6,Unique plate group configuration, high quality AGM separator and battery management system ensure battery with a longer service life.
7,Special vent valve design: control water losing, prevent air going inside
Typical Applications
| 1. Green energy systems (solar, wind, hydro, etc) | 2. Solar power stations | 3. Pump systems |
| 4. Telecommunications installations | 5. Measurement stations | 6. Boats or buoys |
| 7. Signal station | 8. Survey and Mapping system | 9. Emergency lighting |
| 10.Lawn lamp | 11. Traffic lights | 12. Street lightening |
| 13. Alarm installations | 14. Weekend cottage camping | |

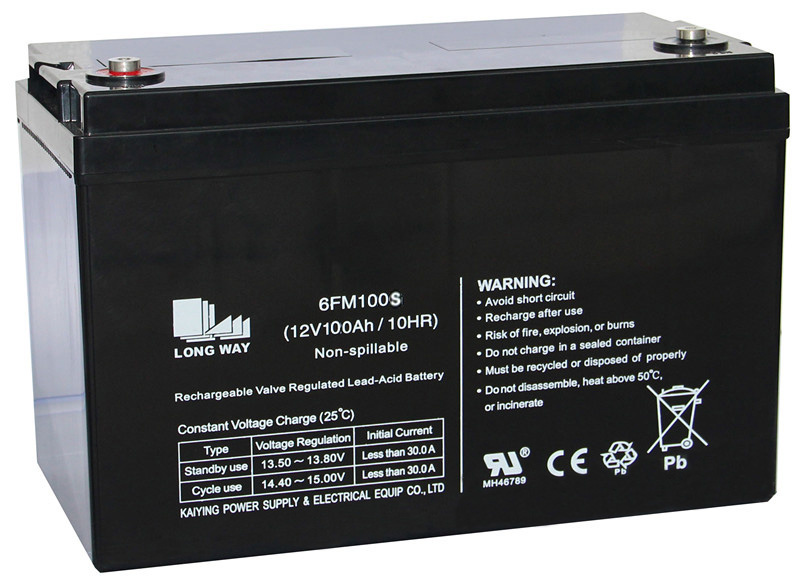

LONGWAY® 6FM100S is specially designed for green energy systems. 6FM100S have a good deep cycle property, maintenance-free. It can be used for more than 350 cycles at 100% discharge in cycle service, up to 12 years in standby service.
Specifications:
| Cells per Unit | 6 |
| Normal Voltage | 12V |
| Capacity | 100Ah@10Hr-rate to 1.80V per cell@25ºC |
| 115Ah@100Hr-rate to 1.90V per cell@25ºC |
| Weight | Approx.(30.5±3%) kg (67.2lbs) |
| Maximum Discharge Current | 1000A(5sec) |
| Internal Resistance | Approx. 5mΩ full charged @25ºC |
| Operating Temperature Range | Discharge: -20ºC~60ºC
Charge: 0ºC~50ºC
Storage: -20ºC~60ºC |
| Nominal Operating Temperature Range | 25ºC±3ºC |
| Float Charging Voltage | 13.6~13.9VDC/unit Average @25ºC |
| Maximum Charging Current | 25A |
| Equalization and Cycle Service | 14.6V~15.0VDC/unit Average @ 25ºC |
| Self Discharge | LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored
for more than 6 months at 25ºC. Self-discharge ratio less than 3%
per month at 25ºC. Please charge batteries before using. |
| Terminal | Terminal F12 |
| Container Material | ABS(UL94-HB)
*Flammability resistance of (UL94-V0) can be available upon request |
Dimensions: L330*W173*H219(TH224)

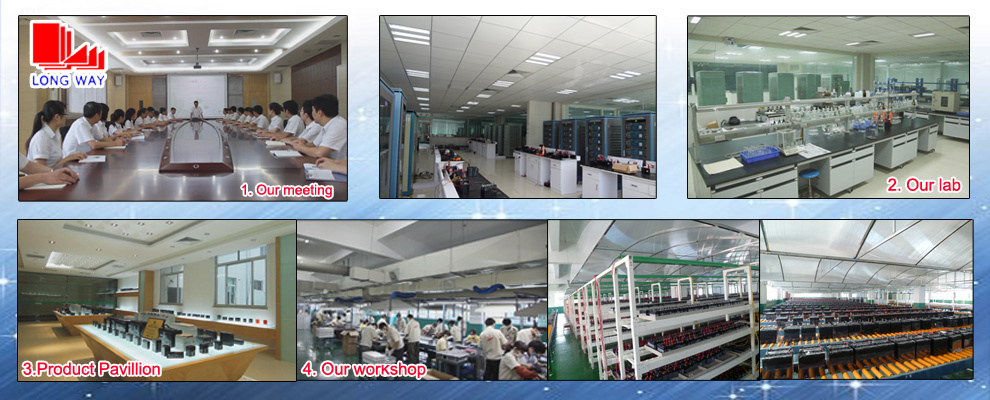

Our factory photo

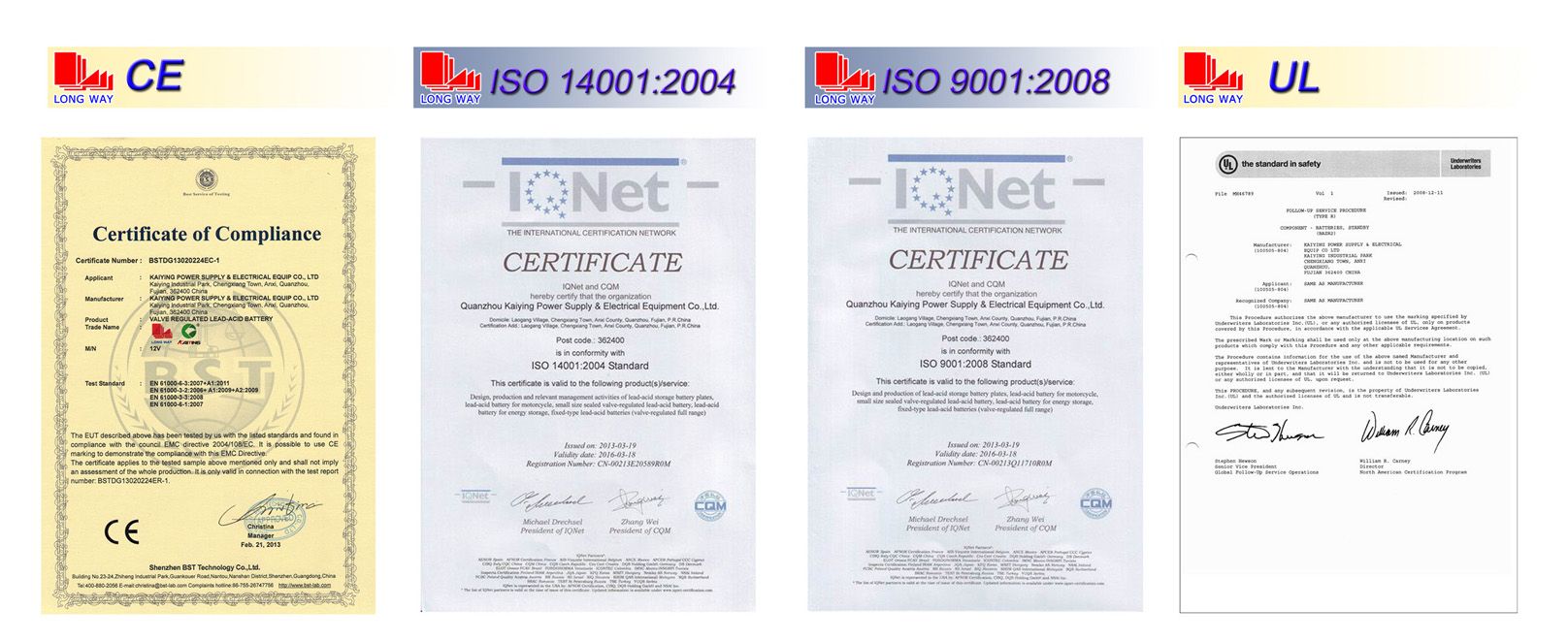

Our certificate
If any interest, welcome to contact us freely.
Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.
As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.
Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.
During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
