| Prod Model: |
12v100S sealed lead acid battery |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Grey or Black or Others |
| Terminal: |
B |
| Size: |
330*173*219 (Total Height 224 ) mm More Size Avail |
| 10hr: |
105ah |
| Packing Qty: |
1 PCS/CTN |
| Lead-Time: |
15 Days for One Container |
| Min. Order: |
60 PCS |
| Transportation: |
by Sea |
| Type: |
Lead-Acid Batteries |
| Usage: |
Solar System Battery |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

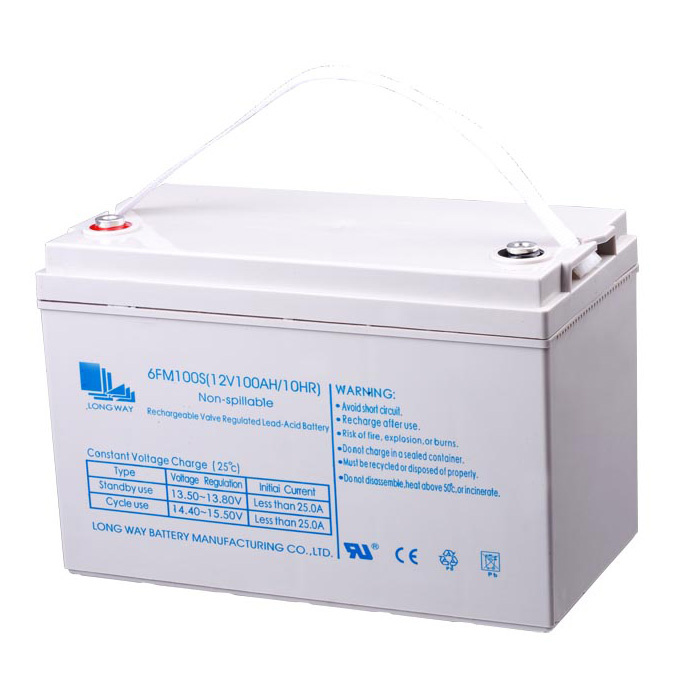

LONGWAY 12V100S Solar System rechargeable sealed lead acid Battery
LONGWAY® 6FM100S is specially designed for green energy systems.
6FM100S have a good deep cycle property, maintenance-free. It can be
used for more than 350 cycles at 100% discharge in cycle service,
up to 12 years in standby service.
11)Specifications:
| Cells per Unit | 6 |
| Normal Voltage | 12V |
| Capacity | 100Ah@10Hr-rate to 1.80V per cell@25ºC |
| 115Ah@100Hr-rate to 1.90V per cell@25ºC |
| Weight | Approx.(30.5±3%) kg (67.2lbs) |
| Maximum Discharge Current | 1000A(5sec) |
| Internal Resistance | Approx. 5mΩ full charged @25ºC |
| Operating Temperature Range | Discharge: -20ºC~60ºC
Charge: 0ºC~50ºC
Storage: -20ºC~60ºC |
Nominal Operating
Temperature Range | 25ºC±3ºC |
| Float Charging Voltage | 13.6~13.9VDC/unit Average @25ºC |
| Maximum Charging Current | 25A |
| Equalization and Cycle Service | 14.6V~15.0VDC/unit Average @ 25ºC |
| Self Discharge | Self-discharge ratio less than 3%per month at 25ºC. |
| Terminal | Terminal F12 |
| Container Material | ABS(UL94-HB)
*Flammability resistance of (UL94-V0) can be available upon request |
2)Application:
UPS, inverter, solar system, Photovoltaic system, Hybrid power system,
Renewable energy system, Power storage for rural arease,
Telecom base station.
3)Features and benefits
12 years design life at floating conditions.
Long life ecpectancy of 5 years at renewable energy system.
Wide temperature range from -20 to 60 degress Celsius.
Nano gel electrolyte eliminate the acid stratification and prolong cycle life.
Round trip efficiency as high Tin low Ca alloy and high density paste.
Low self-discharge rate and long shelf life (1 year at 25 degress Celsius).
Excellent deep discharge recovery capability.
We committed to expert porfessionalis and dependable services.
Any question, pls kindly contact us.
| Standby LONGWAY Storage series batteries |
Battery
Model | Nominal
Voltage
(V) | Nominal
Capacity
(AH) 20HR | Length | Width | Height | Total Height | Weight(±5%) | Terminal |
| In | mm | In | mm | In | mm | In | mm | lbs | Kg | Type |
| 3FM200S | 6 | 200 | 12.72 | 323 | 7.01 | 178 | 8.82 | 224 | 9.02 | 229 | 63.9 | 29 | F11 |
| 6FM9S | 12 | 9 | 5.94 | 151 | 2.56 | 65 | 3.7 | 94 | 3.94 | 100 | 5.73 | 2.6 | F1/F2 |
| 6FM12S | 12 | 12 | 5.94 | 151 | 3.86 | 98 | 3.78 | 96 | 4.02 | 102 | 8.27 | 3.75 | F2 |
| 6FM18S | 12 | 18 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 11.24 | 5.1 | F4/F8 |
| 6FM20S | 12 | 20 | 7.13 | 181 | 3.03 | 77 | 6.57 | 167 | 6.57 | 167 | 13.35 | 5.6 | F4/F8 |
| 6FM24S | 12 | 24 | 6.89 | 175 | 6.54 | 166 | 4.96 | 126 | 4.96 | 126 | 18.08 | 8.2 | F5/F8 |
| 6FM28S | 12 | 24 | 6.89 | 175 | 6.54 | 166 | 4.96 | 126 | 4.96 | 126 | 19.84 | 9 | F5/F8 |
| 6FM33S | 12 | 33 | 7.68 | 195 | 5.12 | 130 | 6.34 | 161 | 7.13 | 181 | 23.15 | 10.5 | F9/F15 |
| 6FM40S | 12 | 40 | 7.8 | 198 | 6.54 | 166 | 6.69 | 170 | 6.69 | 170 | 29.1 | 13.2 | F9 |
| 6FM55S | 12 | 55 | 9.02 | 229 | 5.43 | 138 | 8.19 | 208 | 8.78 | 223 | 37.92 | 17.2 | F9 |
| 6FM65S | 12 | 65 | 13.78 | 350 | 6.61 | 168 | 7.09 | 180 | 7.09 | 180 | 49.6 | 22.5 | F6/F9 |
| 6FN80S | 12 | 80 | 12.09 | 307 | 6.57 | 167 | 8.27 | 210 | 8.46 | 215 | 52.91 | 24 | F9 |
| 6FM100S | 12 | 100 | 12.99 | 330 | 6.81 | 173 | 8.62 | 219 | 8.82 | 224 | 67.2 | 30.5 | F12 |
| 6FM120S | 12 | 120 | 15.94 | 405 | 6.81 | 173 | 8.27 | 210 | 9.33 | 237 | 77.16 | 35 | F12/F17 |
| 6FM140S | 12 | 140 | 13.43 | 341 | 6.81 | 173 | 11.14 | 283 | 11.34 | 288 | 91.49 | 41.5 | F12 |
| 6FM150S | 12 | 150 | 19.02 | 483 | 6.69 | 170 | 9.49 | 241 | 9.49 | 241 | 98.11 | 44.5 | F11 |
| 6FM200S | 12 | 200 | 20.55 | 522 | 9.45 | 240 | 8.62 | 219 | 8.82 | 224 | 136.69 | 62 | F11 |
| 6FM250S | 12 | 250 | 20.47 | 520 | 10.59 | 269 | 8.66 | 220 | 9.65 | 245 | 163.1 | 74 | F12/F19 |
Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.
As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.
Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.
During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
