| Prod Model: |
6FM105FR (12V105Ah) |
| Cells Per Unit: |
6 |
| Capacity: |
105ah |
| Weight: |
32.5kg |
| Maximum Discharge Current: |
1050A(5sec) |
| Terminal: |
F11 |
| Self Discharge: |
Less Than 3% Per Month |
| Maximum Charging Current: |
26.25A |
| Container Material: |
ABS(UL94-Hb) *Flammability Resistance of (UL94-V0) |
| Operating Temperature: |
-20c~50c |
| Design Time: |
10-12 Years |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

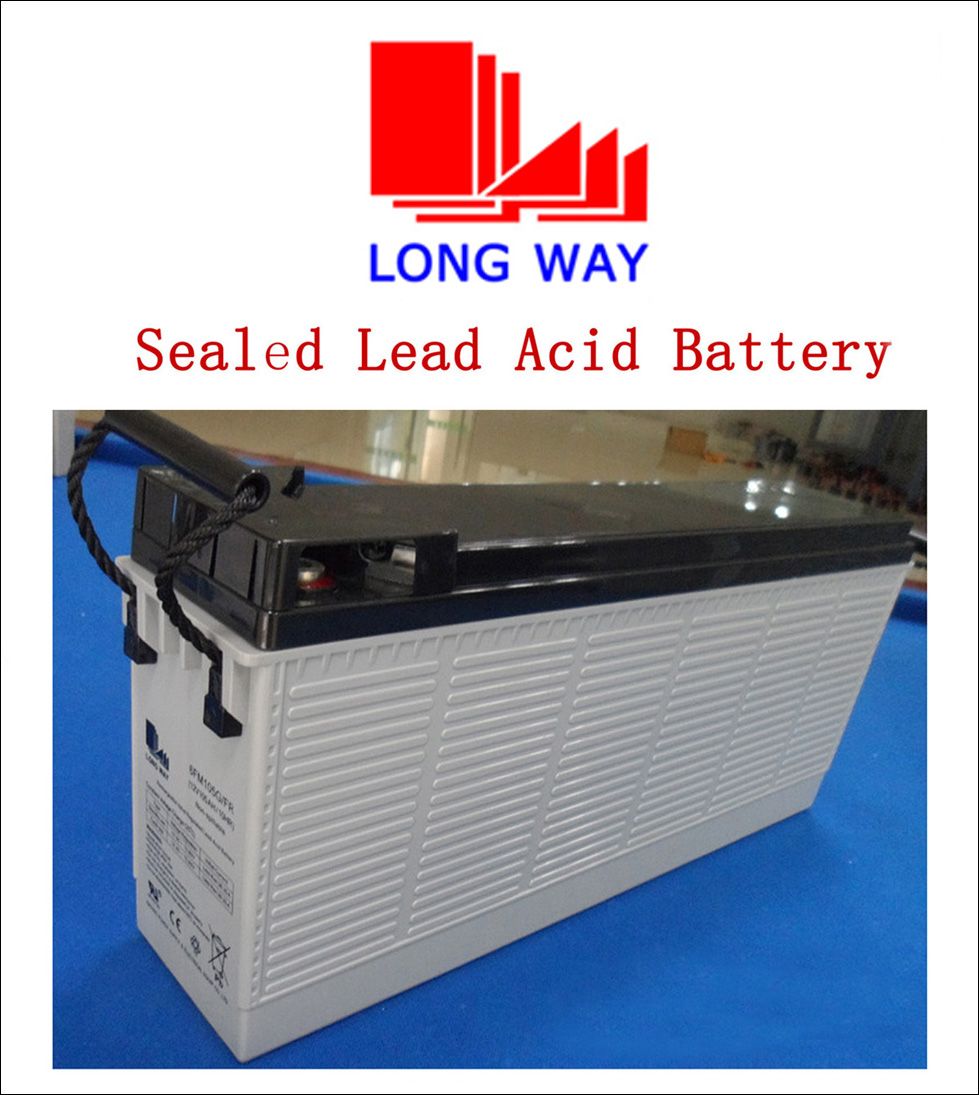

12V105AH battery LONGWAY battery Sealed AGM batteryLONGWAY® FR battery is a front terminal battery. 6FM105FR battery is a front
terminal battery up to 12 years expected life for Telecom use . As with all
LONGWAY® batteries, all are rechargeable highly efficient, leak proof and
maintenance free.
SpecificationsLead Acid Battery 6FM105FR (12V105Ah)
1)Good quality plates grids
2)Long life
3)Low self-discharge
4)Sufficient Capacity
VRLA UPS Battery 6FM105FR (12V105Ah)
Main Features:
Model: 6FM105FR (12V105Ah)
Voltage: 12V
Capacity: 105AH(10hr)
Dimension: L527*W110*H225(TH232)
Approx Weight: 32.5KG/PCS
Packing Detail: 1PCS/CTN
Loading Quantities: 20'FT=616PCS, 40'FT=1230PCS
Certificates: CE/UL/ISO9001/ISO14001
Designed life 12 year in stand-by applicationFR SeriesThe LONGWAY FR series battery is mainly used in the area of communication, which is novel in design, reasonable in structure and occupying the leading position in the same industry of the world. As with previous INTELEC(international Telecommunications Energy) conferences, many people were concerned about the life and durability of VRLA (Valve Regulated Lead Acid) batteries. It can be employed in numerous applications in the fields of communications. In order to ensure that the power supply is guaranteed at all times, essential facilities are backed up with high performances battery systems. Sudden breaks in the power supply are then no longer a problem. If the power suddenly fails, battery systems take over the emergency supply of power.
| Battery Model | Nominal Voltage (V) | Nominal Capacity (AH) | Length | Width | Height | Total Height | Weight(±3%) | Terminal |
| In | mm | In | mm | In | mm | In | mm | Pound | Kg | Type | Position |
| 6FM55FR | 12 | 55 | 11.5 | 291 | 4.17 | 106 | 8.78 | 223 | 9.06 | 230 | 39.7 | 18.0 | F12 | E |
| 6FM75FR | 12 | 75 | 22.1 | 562 | 4.53 | 115 | 7.36 | 187 | 7.64 | 194 | 51.8 | 23.5 | F12 | E |
| 6FM85FR | 12 | 85 | 22.1 | 562 | 4.53 | 115 | 7.36 | 187 | 7.64 | 194 | 56.2 | 25.5 | F12 | E |
| 6FM105FR | 12 | 105 | 20.7 | 527 | 4.33 | 110 | 8.86 | 225 | 9.13 | 232 | 71.7 | 32.5 | F12 | E |
| 6FM110FR | 12 | 110 | 16.1 | 410 | 4.33 | 110 | 11.3 | 288 | 11.6 | 295 | 72.8 | 33.0 | F12 | E |
| 6FM125FR | 12 | 125 | 21.7 | 551 | 4.29 | 109 | 9.41 | 239 | 9.41 | 239 | 79.4 | 36.0 | F12 | E |
| 6FM125FR/A | 12 | 125 | 21.6 | 549.5 | 4.13 | 105 | 12.40 | 315 | 12.40 | 315 | 79.4 | 36.0 | F12 | E |
| 6FM150FR | 12 | 150 | 22.2 | 565 | 4.33 | 110 | 11.3 | 288 | 11.6 | 295 | 97.0 | 44.0 | F12 | E |
| 6FM170FR | 12 | 170 | 22.0 | 560 | 4.92 | 125 | 12.4 | 316 | 12.4 | 316 | 108.0 | 49.0 | F12 | E |
| 6FM180FR | 12 | 180 | 22.0 | 560 | 4.92 | 125 | 12.4 | 316 | 12.4 | 316 | 114.6 | 52.0 | F12 | E |
| 6FM180FR/A | 12 | 180 | 21.5 | 546 | 4.92 | 125 | 12.8 | 324 | 12.8 | 324 | 114.6 | 52.0 | F13 | E |
General FeaturesEnvironmental friendly
Thick pasted plates with high quality lead-tin-calcium alloy grids for long service life
Centralized venting system for gas ventilation
Plastics or rope handles for handling and installation convenience
Front access terminals for easy and quick connection
Low internal resistance
Lower self discharge
Design life is up to 12 years
Case and cover in strong flame retardant ABS. V0 class
ApplicationsCommunication equipment
Uninterruptible Power Supplies
Telecommunication systems
Electronic cash registers
Microprocessor based office machine
Other standby power suppliesProduction Process
If get interest, just contact me freely.
12V105AH battery LONGWAY battery Sealed AGM battery
Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.
As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.
Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.
During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
