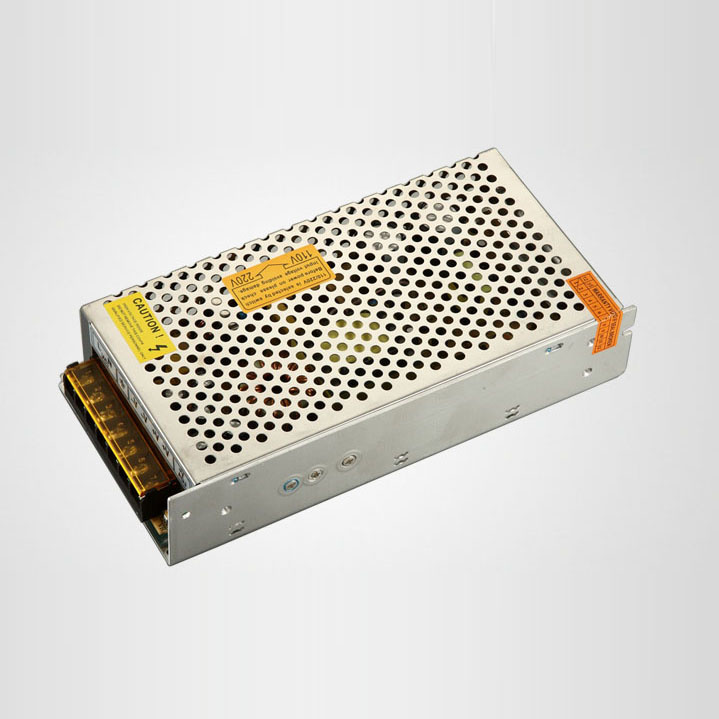

12V12.5A-150W Switch LED Driver

Name: 12V12.5A-150W Switch LED Driver
Brand: all-electronics-online.com
SKU: 786727715
Availability: InStock
Rating: 4.5 (81 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WSP-12-150
Protection:	Short Circuit / Overload / Over Voltage
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Brand:	OEM

Product Description

12V12.5A-150W switch LED driver
*AC input selectable by switch
*Withstand 300VAC surge input for 5seconds
*Protections:Short circuit/Overload/Over voltage /Over temperature
*Built-in constant current limiting circuit
*Most economical low wattage solution *Low cost,high reliability
*LED indicator for power on

Model	wsp-150W-1212.5A
Input	Input Voltage(V)	180VAC~264VAC
	Input Current (A)	0.57A Max
	Frequency (Hz)	50Hz-60Hz
	Efficiency	82% Typ(230VACFull Load)
	Inrush current(A)	Cold star <40A/230VAC
	Leakage current(mA)	<3mA/240VAC
Output	Output Voltage(V)	+12VDC
	Voltage Regulation	+3,-2%
	Output Current(A)	8.33A
	Current Range (A)	0 ~ 21A
	Rated Power(W)	250W
	Start time, hold-up time(ms)	Ton≤1000ms,Td≥20ms @230Vac Full Load
	Rise time(ms)	Typ:20ms @230Vac Full Load
	Ripple/Noise(mVp-p)	120mVp-p
Environment	working Temperature (°C)	0°C - +40°C(refer derating curve)
	Storage Temperature(°C)	-20°C - +60°C
	Humidity(%)	20% - 90% RH non condensing
Safety/ EMC	Withstand voltage(VAC)	I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min
	Safety Standard	EN/UL60950-1,GB4943
	EMC Standard	EN55022 Class B,EN61000-4-2,3,4,5,6,8,11 GB17626.5 Level3
Protection	Over voltage Protection	>115%-135% Rated output voltage
	Over load Protection	>105%-150% Auto recovery
	Short circuit Protection	Latched
	Over Temperature Protection	No
Others	Sise LWH(mm)	20011050mm LWH
Others	Weight	740g/pcs
